Text mode
Original mode

1-38

Setting reflective paper sensor selection

Code

[02] r

Function

Detects label position automatically by reflective paper sensor.
Reflective paper sensor detects black lines that are printed on the
back of the label and understands the label position. In default,
reflective paper sensor is selected.

Caution

When detection is not performed properly, check the sensor position.

Example

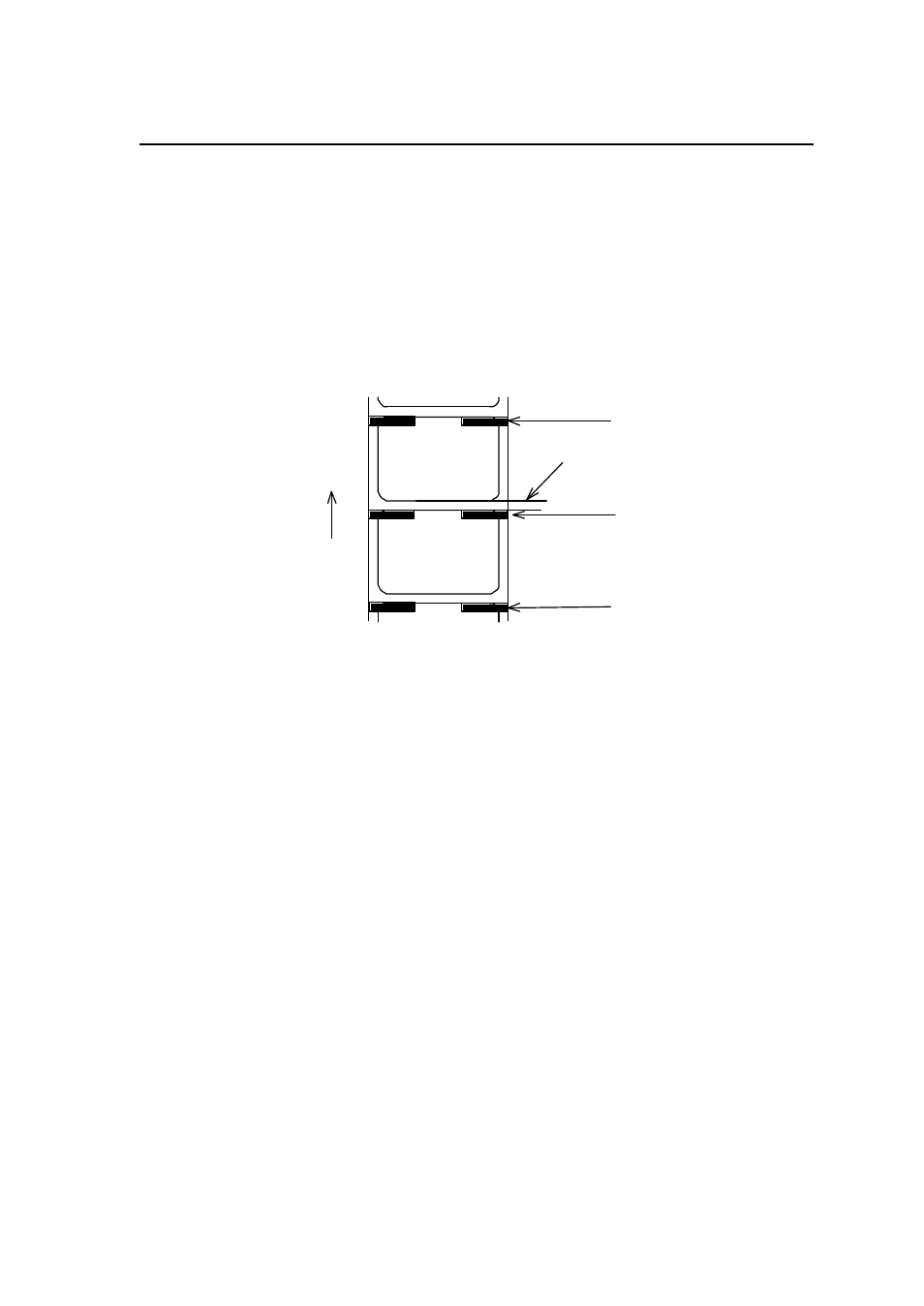

As shown in the figure below, label position is detected with the black
lines on the back of the label.

Label paper gap

Direction of feed

Black line

* Figure above shows the back of the paper
