4.3 Ruled Line Printing
When ruled lines are to be printed, attribute data such as printing
position and line types must be included in the command.
Ruled line drawing command: Lhhhvvv, lhhhhvvvv
L, l: Specifies line drawing L sets 3-column width and l sets 4-column width
hhh, hhhh: Specifies width of line in horizontal direction
vvv, vvvv: Specifies width of line in vertical direction
Square drawing command: Bhhhvvvbbbsss, bhhhhvvvvbbbbssss
B, b: Specifies box drawing B sets 3-column width and height
and
b sets 4-column width and height
hhh, hhhh: Specifies width of box in horizontal direction
vvv, vvvv: Specifies width of box in vertical direction
bbb, bbbb: Specifies width of line in horizontal direction
sss, ssss: Specifies width of line in vertical direction
Program examples
1X1100004500500L450010 Thick ruled line in horizontal direction
1X1100005000950L005400 Ruled line in vertical direction
1X1100005000500B400400005005 Box printing

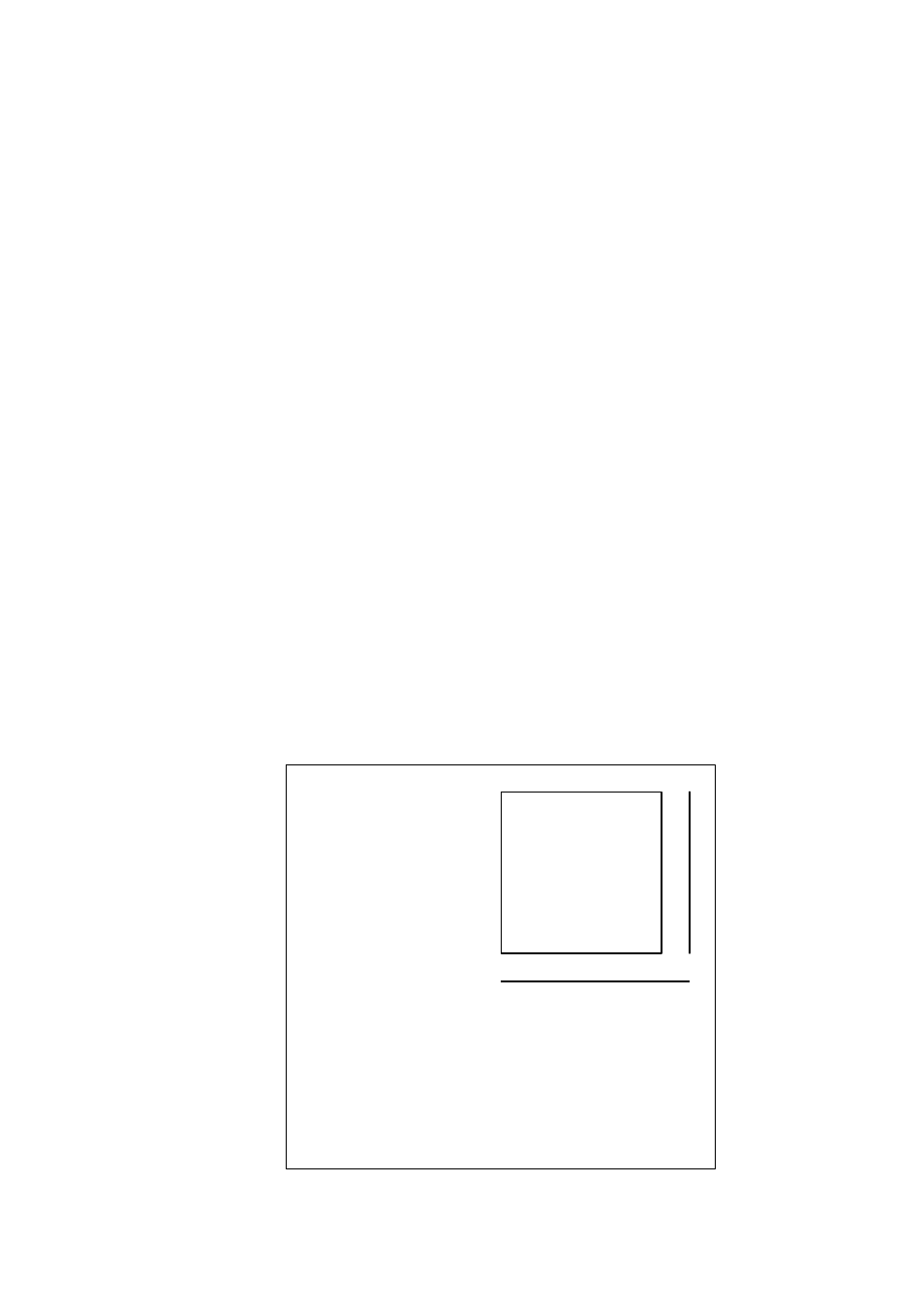

Print sample
