9-45
3706PS, 3707PS, 4014PS, 4017PS, 33.7, 37.6, 37.7
Electrical System
b. Field Calibration
To calibrate the LSI, certain conditions must be met:
• The sensor must be installed according to Section
• The test weight matches the model being calibrated
in the table shown on page 9-52.
• The calibration shall be conducted with standard
carriage and forks attached to the machine.
• While utilizing the LSI override button, 10 times lift
and lower the boom stopping suddenly to induce the
rear axle to bounce.
Note: If the test weight is not known, follow steps 1 & 2.
1. With the estimated test weight on the forks, start the
machine and extend the boom horizontally until the
machine starts to tip. This point should be at an
extension of Xtip (1) of the second boom section. If
the machine is not tipping at this extension, weight
needs to be added or removed from the forks.
2. By confirming that the machine tips at this point, the
correct amount of weight is now on the forks.
3. The machine control system must be powered on for
at least 10 minutes before calibration.
4. The machine must be on a level surface with the
wheels steered straight and park brake OFF. Drive
the machine forward over a distance of at least 2 m
(6.5 ft) before entering a calibration point.
5. Lower the outriggers (if equipped), place test weight
on ground, apply park brake and shut engine OFF.
Do Not move machine.
Field Calibration Procedure:
Note: The following procedure must be completed
within 30 minutes of starting the procedure.
1. With ignition key in OFF position, press and hold
SYSTEM CHECK button on LSI display and turn
ignition key to engine START position. Release the
ignition key when engine start is achieved, but
continue to hold SYSTEM CHECK button on LSI
display until the orange LED on LSI display goes out
and buzzer sounds (approximately 3 seconds).
Release SYSTEM CHECK button.
2. The LEDs will perform a sequence. When only the
third green LED illuminates, press the SYSTEM
CHECK button.
3. The first green LED then illuminates. With no
attachment and boom retracted, lift boom fully.
4. Press the SYSTEM CHECK button on the LSI
display and release. The first 3 green LEDs will
illuminate. The third then second green LEDs will go
out as the calibration point is recorded.
5. The first green LED goes out and buzzer sounds
then the red LED illuminates.
6. Lower boom and without moving the machine, pick
up the proper test weight (W) listed in the table.
Pressing the LMI Override button may be required to
lower the boom.
7. Fully raise the outriggers (if equipped).

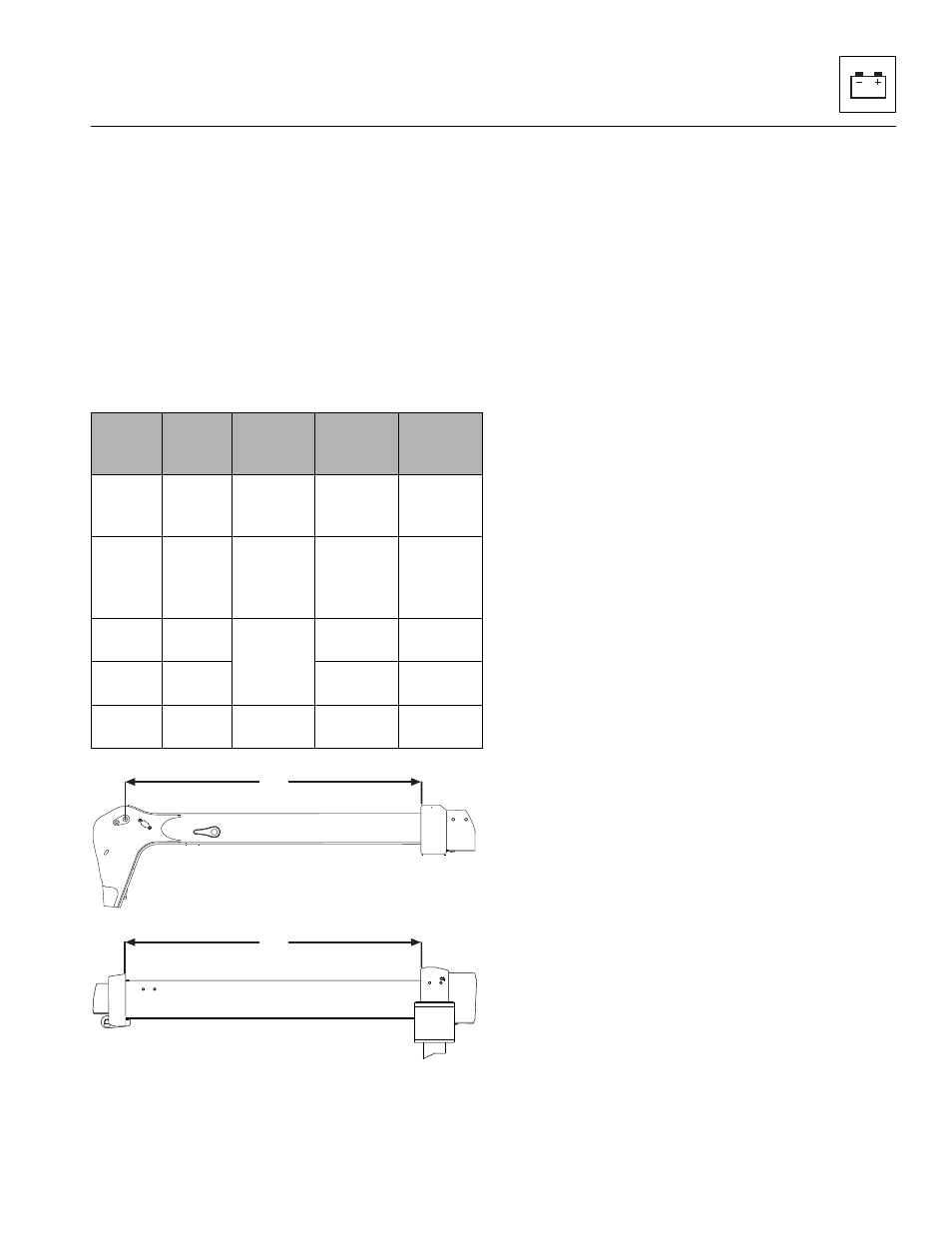

Model
Market
Test
Weight
(W)
Xtip (1)
Xcal (2)
3706
PS &
37.6
CE
3000 kg
(6614 lb)
1228 mm
(48 in)
918 mm
(36 in)
3707
PS,
33.7 &
37.7
CE
3000 kg
(6614 lb)
1484 mm
(58 in)
1082 mm
(43 in)
4014
PS
CE
1000 kg
(2205 lb)
2509 mm
(99 in)
1916 mm
(75 in)
4014
PS
AUS
2837 mm
(112 in)
2259 mm
(89 in)
4017
PS
CE
AUS
1000 kg
(2205 lb)
2050 mm
(81 in)
1713 mm
(67 in)
MAM1470
A
B
C
D
A
B
C
1
4014PS and 4017PS
3706PS, 3707PS, 33.7, 37.6 & 37.7
