4-12 Compact T1 - Release 6.1
Configuration
Quick Configuration Reload
Quick Configuration Reload
The print config command can be used as a quick way to reload a configuration into
an Adit unit, in the event that the configuration has been lost due to software reload
problems or operator error.
The download of the file generated by the print config command can be done by direct
connect to the RS-232 port or via Telnet, BUT the upload from the PC back to the Adit
can only be done via direct RS-232 connection. The reason for this is that there will not
be an IP address in the Adit because it is at the factory default at this time.
The procedure described below is based on using Hyperterm.
Download Config File:
1. Connect to the unit using Hyperterm via the RS-232 port.
2. Type print config (do not hit [E NTER ]).

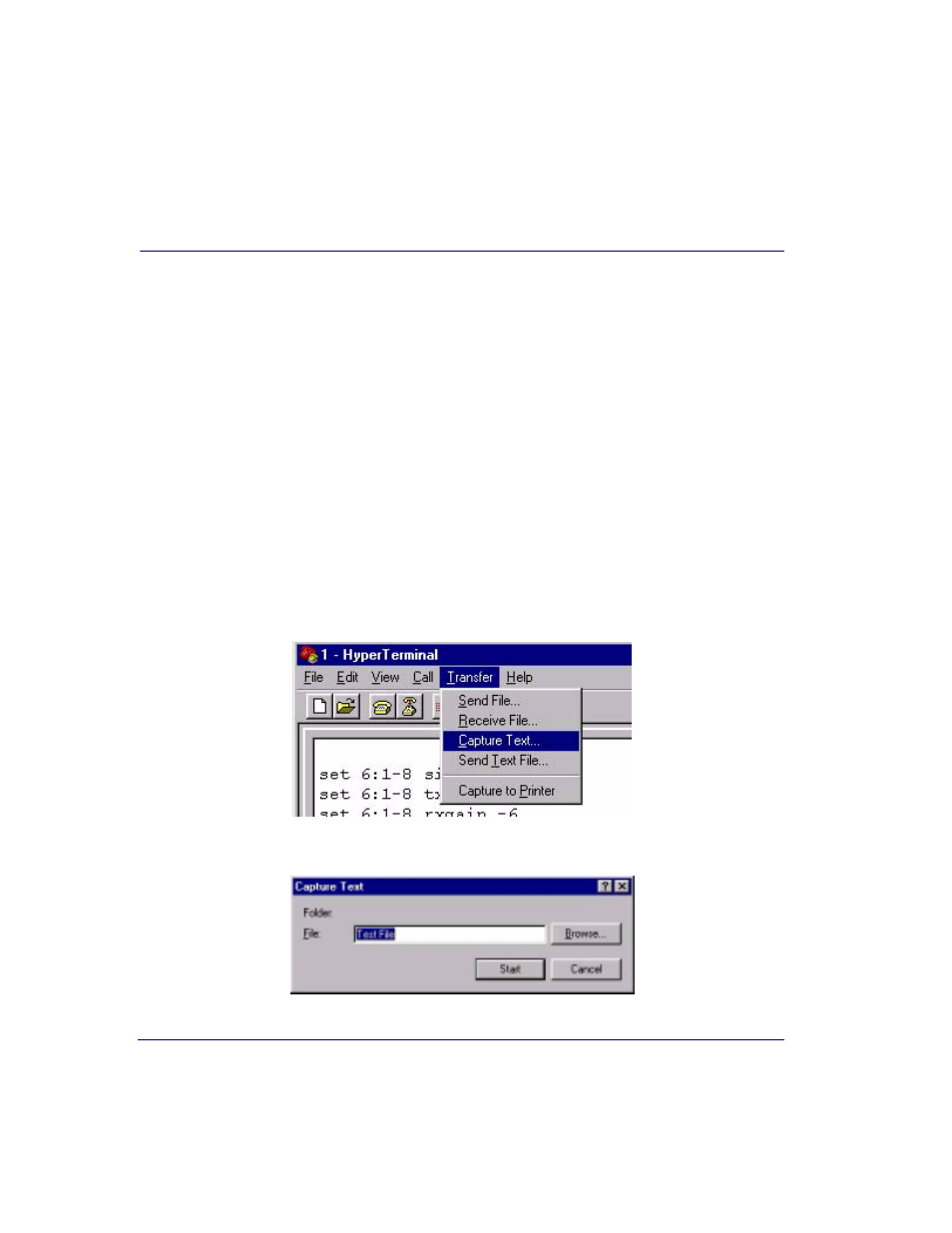

3. Select Transfer/Capture Text... from the menu bar.
4. Name the file so that is can be accessed when needed.
