Chassis ground connector, Chassis ground connector -5 – Black Box COMPACT T1 MT850A User Manual
Page 55
Compact T1 - Release 6.1
3-5
Electrical Installation and Cabling
Interface Connectors
Chassis Ground Connector

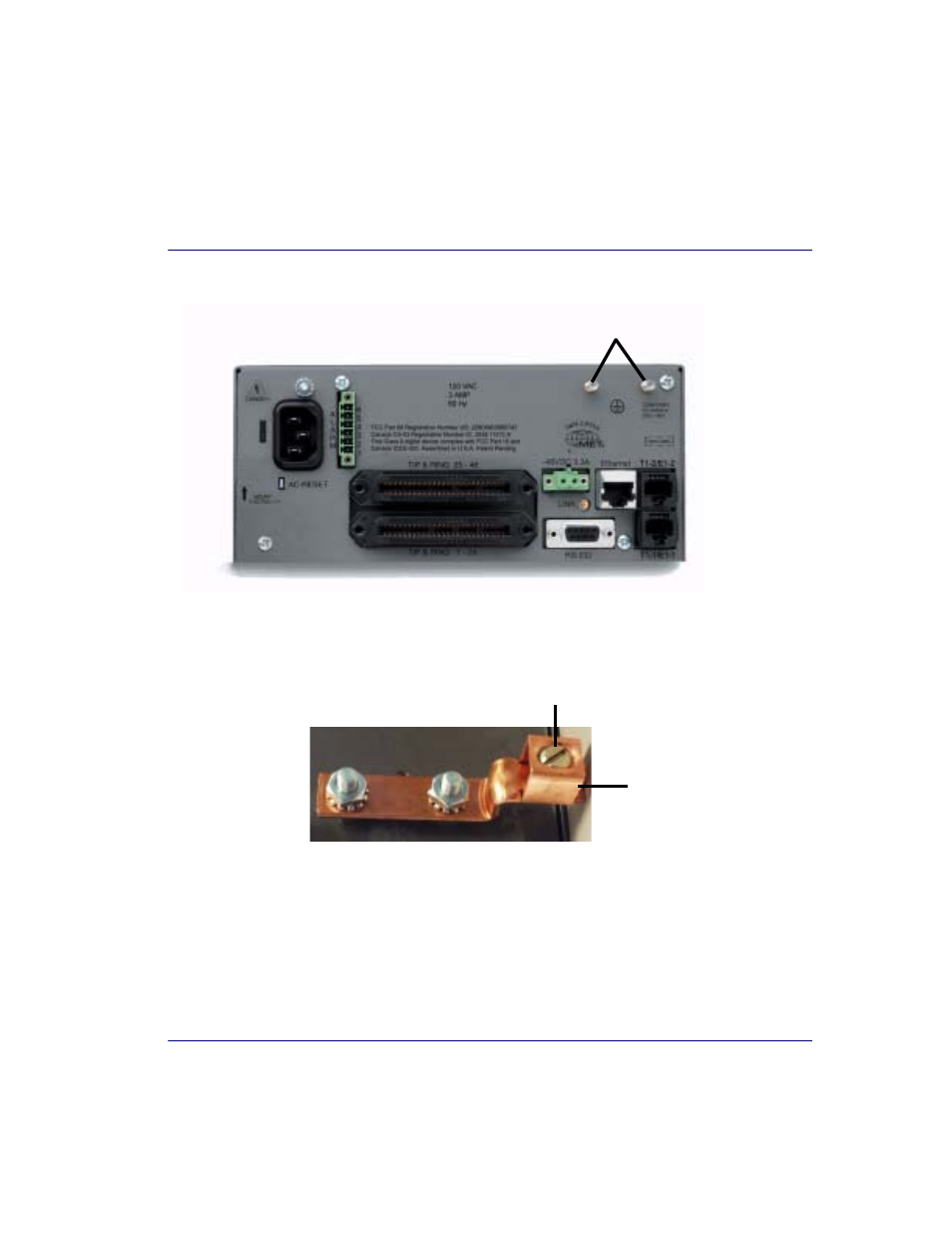

1. Route wire (#6 or #8 AWG copper) from building ground to lug on Unit.
2. Strip insulation off wire end, if necessary.
3. Loosen compression screw until opening is large enough to accept ground wire.
4. Insert ground wire into lug barrel, beneath compression plate and tighten
compression screw.
5. Attach ground lug to chassis
Ground Terminals
Ground Lug
Compression
Screw
Lug Barrel
