115 vac leds, 115 vac leds -6 – Black Box COMPACT T1 MT850A User Manual
Page 438
11-6
Compact T1 - Release 6.1
Power Supply
115 VAC LEDs
115 VAC LEDs

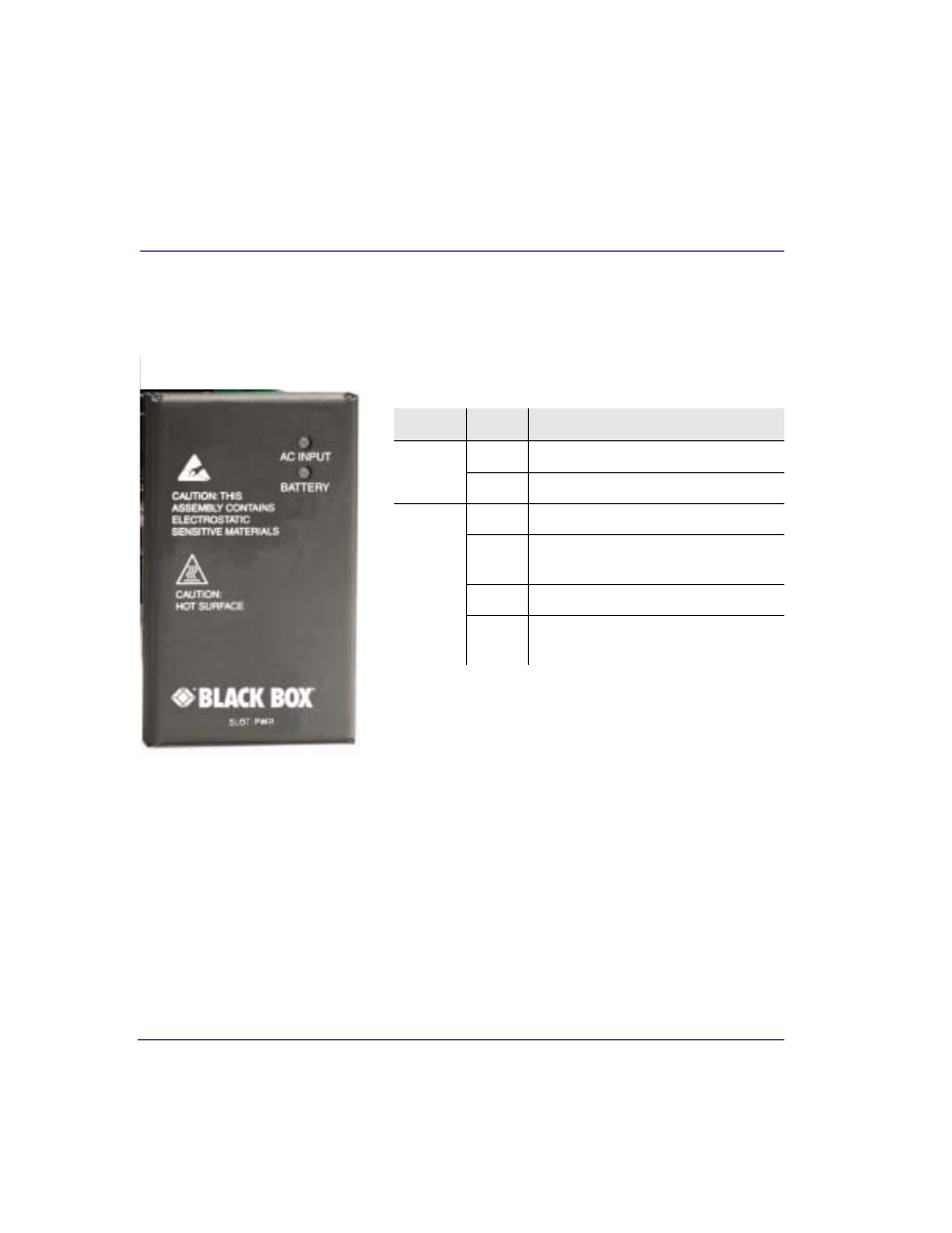

The power supply card has two LEDs, as described in the table below.
LED
State
Description
AC
Input
Off
AC input missing or failure
Green
AC input present
Battery
Off
Battery input not used
Green
Battery charging or operating from
DC source only.
Yellow
Battery discharging
Red
Battery low (less than 42V),
ringer disabled
