3-4 Compact T1 - Release 6.1
Electrical Installation and Cabling
Chassis Connectors and Buttons
Chassis Connectors and Buttons

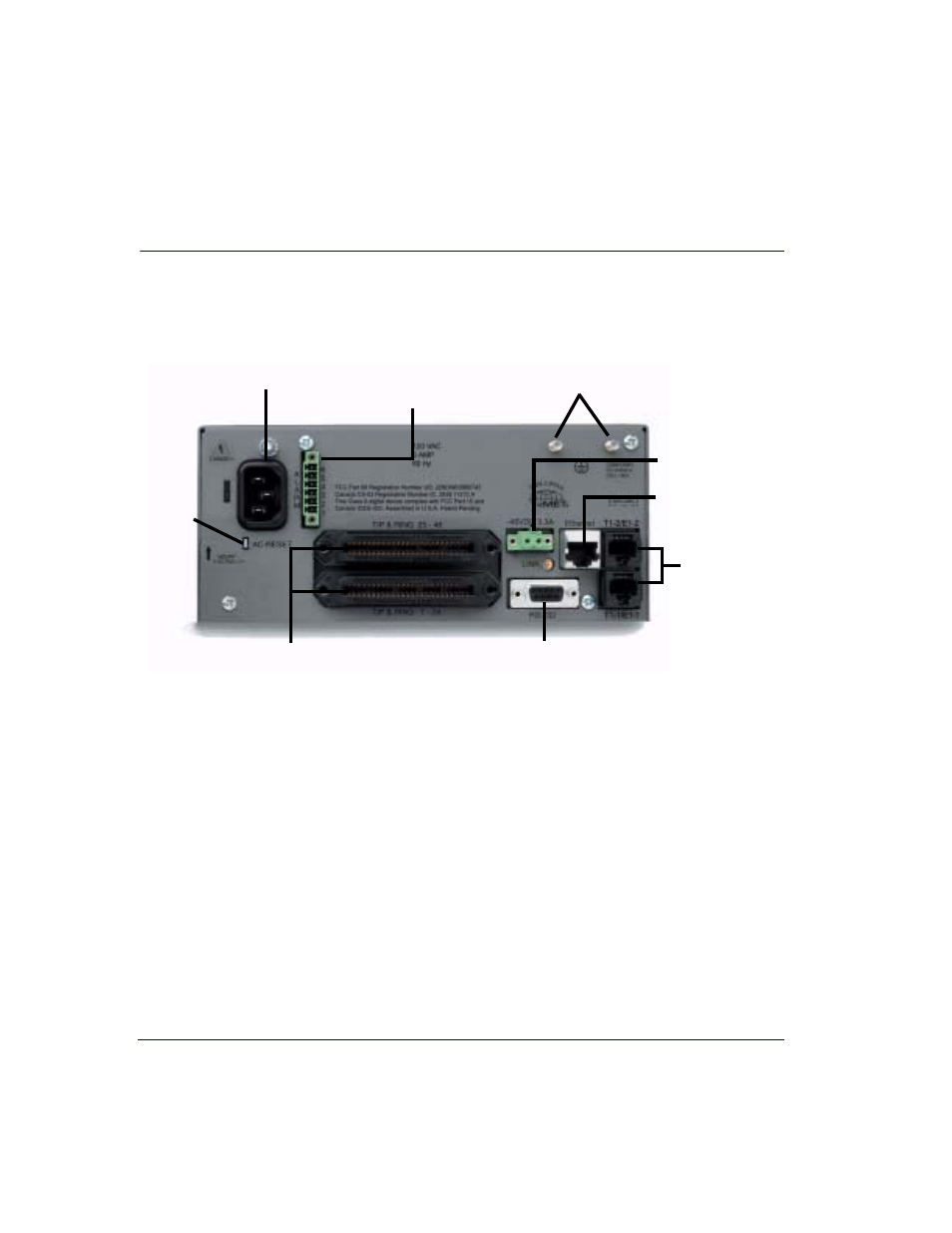

The following illustrations show all connectors on the back of the unit.
Interface Connectors
The following are the Compact T1 chassis interface connectors:
l T1-1 and T1-2 line connection ports each equipped with standard
RJ-48C 8-pin connector jack
l RS-232 craft port connector
l Tip and Ring Analog Interfaces equipped with standard 25-pair Telco
Connectors
l 10Base-T Ethernet port to be connected to a remote management tool such as
Telnet or an SNMP-based Network Management System with an RJ-45 8-pin
connector jack
l External Alarm Connector
l Ground Lugs
Ground Terminals
Alarms
AC Power Connector
-48V/Battery
Ethernet
T1-2
T1
RS-232 Craft Port 25-Pair Telco Connectors
T1-1
[10Base-T]
Connectors
Reset
