Balboa Water Group Titan Bath Control - Manual (Page 8)

Manufactured under one or more of these patents. U.S. Patents: 5332944, 5361215, 5550753, 5559720, 5,883,459, 6253227, 6282370, 6590188, 6976052, 6965815, 7030343, 7,417,
834 b2, Canadian Patent: 2342614, Australian patent: 2373248 other patents both foreign and domestic applied for and pending. All material copyright of Balboa Water Group.
8 7/14/14
Part no Bath controls dimensions
90017 Variable Speed Control 7-3/8” x 4-1/4” x 2-3/8” (Mounting holes 6-7/8” +/- 1/8”)
90018 Primary Valve Control 7-3/8” x 4-1/4” x 2-3/8” (Mounting holes 6-7/8” +/- 1/8”)
90005 System Expandable, Var. Sp. (Similar to 90017) 7-3/8” x 4-1/4” x 2-3/8” (Mounting holes 6-7/8” +/- 1/8”)
connector component function
J1 Variable Speed Control Panel Cable (8 Pin)
J2 Variable Speed Control Sensor Cable (6 Pin)
J3 Variable Speed Control Light Cable (4 Pin)
J4* Primary Valve Control Sensor Cable (6 Pin)*
J5* Primary Valve Control Panel Cable (8 Pin)*
Green Conn. Primary Valve Control 5 Discrete Paired Outputs

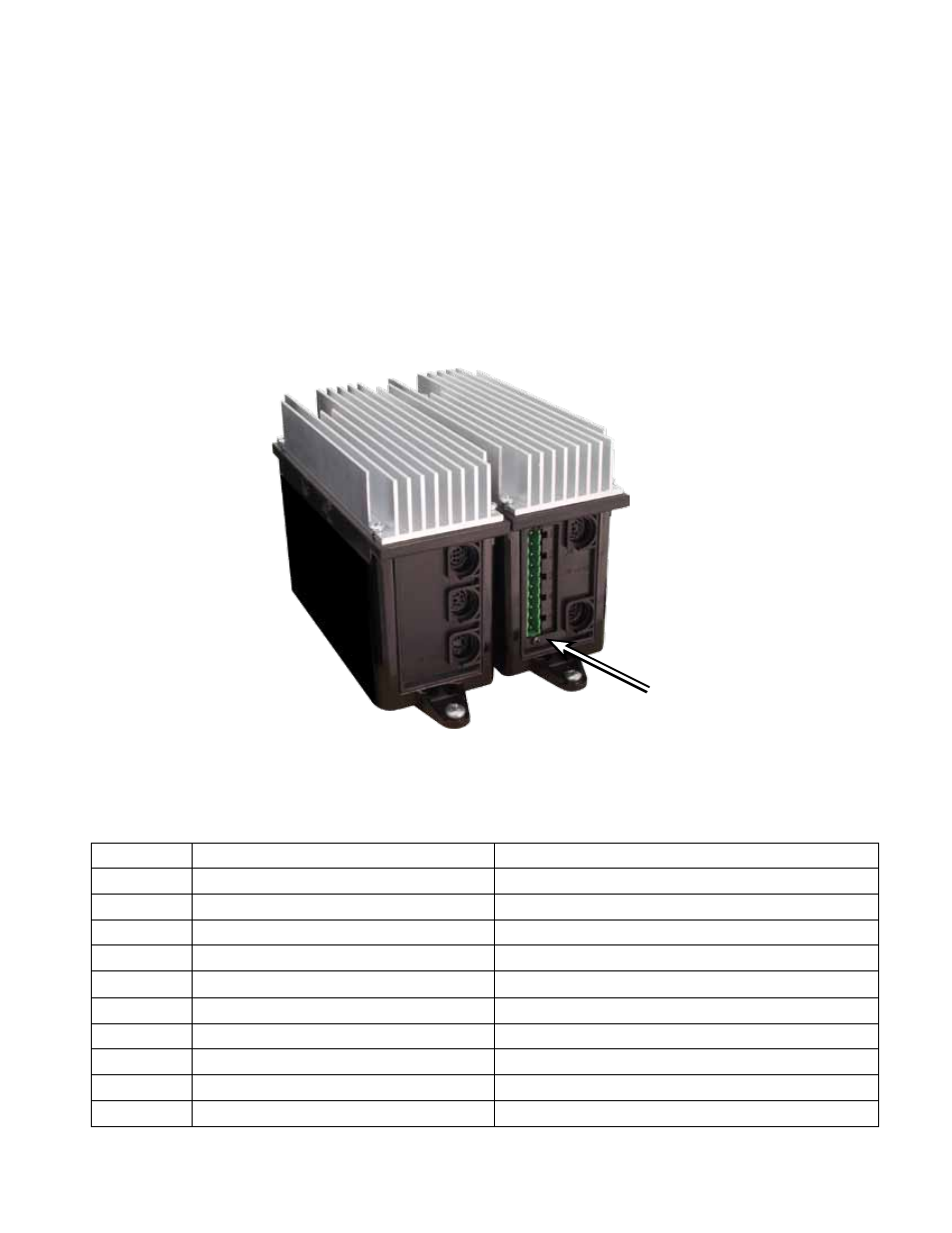

Titan Bath Components
J5 mini dIn 8 Pin*
(Panel)
Paired valve connectors
J4 mini dIn 6 Pin*
(Water/temp sensor)
J1 mini dIn 8 Pin
(Panel)
J2 mini dIn 6 Pin
(Water/temp sensors)
J3 mini dIn 4 Pin
(12v light)
Primary Valve Control
Part no 90018
• 5 Discrete paired output connectors for valves
• Panel
• 120V Light
• Water Level Sensor
• Temperature Sensor
Variable Speed Control
Part no 90017 (90005 is similar)
• Panel
• 12V Light
• Water Level Sensor
• Temperature Sensor
*Depending on the model revision, J4 & J5 may be reversed.
