confIGurInG the 4 Button Bath Panel
Four button panels do not have a readout display, but use
LED’s to provide status information during operation. The
LED's are also used to configure the panel. There are three
four button bath panels. Yet, each four button panel is capable
of being configured in many ways. Be sure to reference what
equipment is installed with the button used and then configure
it accordingly after equipment setup.
The panel displays LED's in binary numbers to designate the
configuration number. Below is a table that shows the binary
equivalents to the configuration number.
note: Panel No. 90013 has seven configuration numbers. The
remaining 4 button panels have 15 configurations.
1. Upon power-up, The four LED’s will blink.
2. Press and hold the 2nd button down for 5-10 seconds. The
LED’s will begin to count in a binary format. (Note: The
counting sequence may not start at one, depending on the
last configuration stored.)
3. Once the configuration that you need is reached, release
the button.
4. The panel will reboot and go through a start up sequence.
The last sequence of numbers after the boot up will show
the binary configuration that had just been programed.

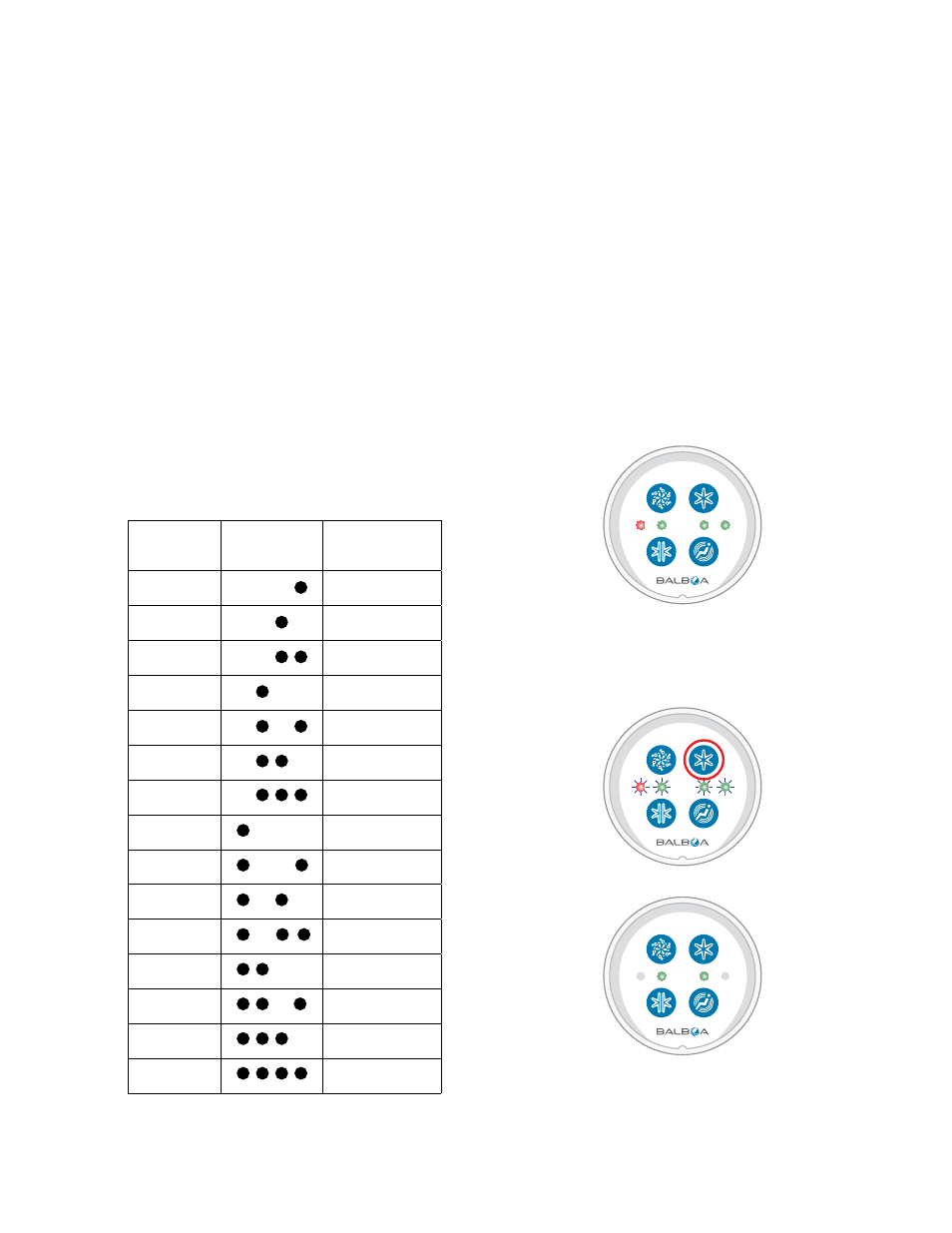

after start-up, the four buttons will flash
Press and hold the second button
release the button at the desired configuration
this is configuration six
config no led display Binary no
1 0001
2 0010
3 0011
4 0100
5 0101
6 0110
7 0111
8 1000
9 1001
10 1010
11 1011
12 1100
13 1101
14 1110
15 1111
Bath Button Panel Configuration (cont.)
