DIN Modules and Adapters
6’ Length
Water Level Sensor
Material No. 25404
12’ inch Length
6-Pin DIN Water Temperature & Level Sensor Material No. 25751

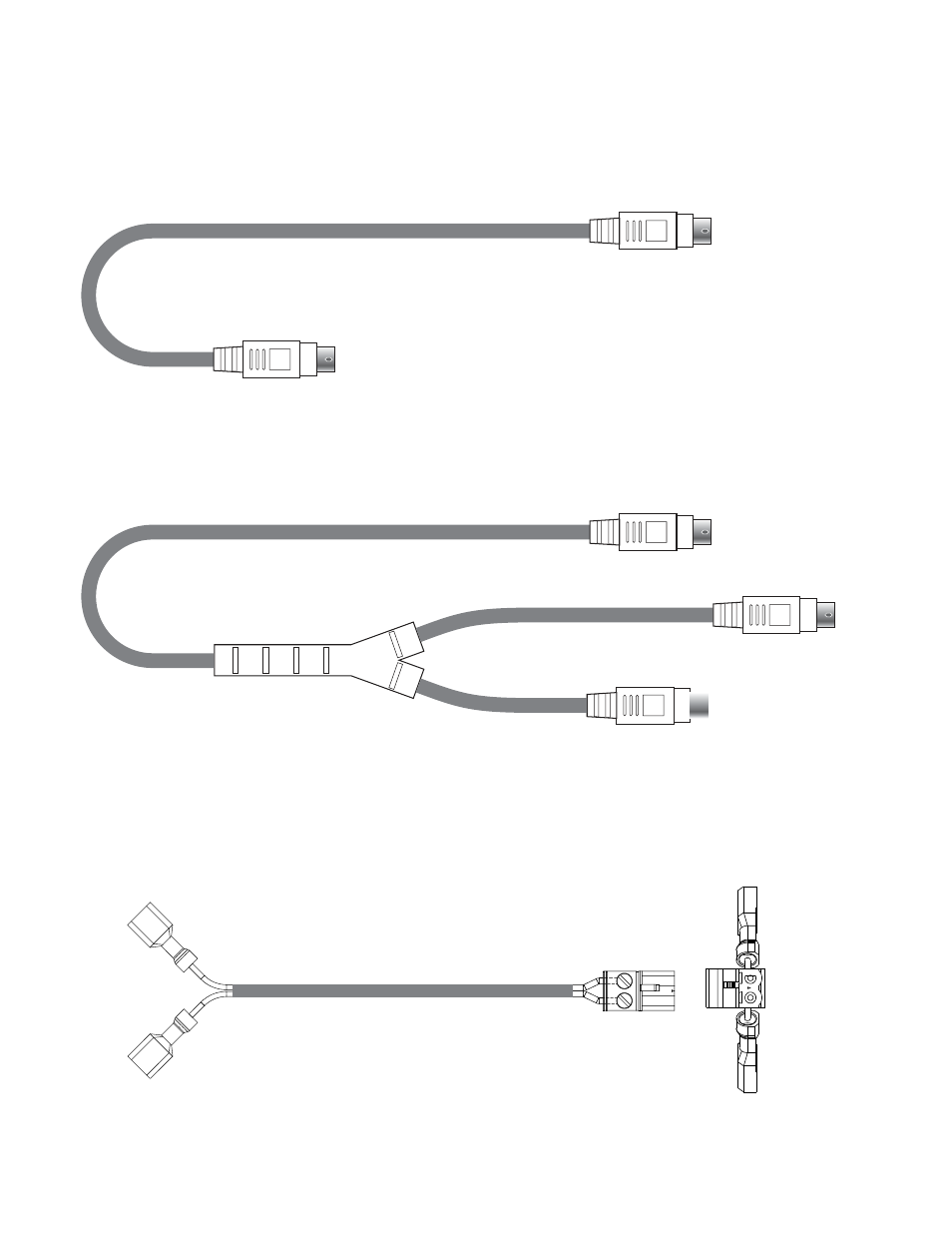

DIN Cables and Splitters
1’ Length to “Y”
3’ Length to “Y”
6’ Length to “Y”
6’ Length
Material No. 25569
Material No. 25748
8 Pin DIN
8 Pin DIN
8 Pin DIN
8 Pin DIN (Blower)
(Control Box)
Standard DIN Cable for Control Box or Blower Setup
Splitter Cable for Control Box and Blower Setup
With 5 Volts
Without 5 Volts
22 AWG 8’ Length
4-Pin Mini DIN Male to Lampholder Cable Assembly Material No. 25652
10’ Length
Solenoid Cable Assembly Material No. 25670
6 Inch Length
8 Foot Length
4-Pin DIN Spa Light Adapter 20 Gauge Material No. 25750
Material No. 25099
24” Length (with nut)
Material No. 32016
Sensor Assy Kit (1/4” dia.)
File Name:
Extendable Bulb Holder EFX
Titan_DIN_Cables_MASTER_11x17_2012_January 04_vo.ai
Cable Assembly Diagrams: Adapters and Splitters
