to view and edit user Preferences, press
AND for 5 seconds.
The session timer Menu will display t 30. Release both buttons.
Each press changes the length of the Session Timer.
Press to show time/temp display Menu.
Edit t = Time, h = Water Temp., or th = both.
If no temperature sensor is present, this is fixed at d.t (display timer).
Press again to show the temperature display Menu.
Toggle between c = Celsius, or f = Fahrenheit.
Press again to show the store menu.
Select st y (yes) to Exit and Save your new settings, or
st n (no) to Exit without saving new settings.
Press again to confirm the store menu choice.
User Preferences
User Preferences allow changes to
certain default settings in the control.
note:
Previously saved variables will display solid;
new choices will flash.
If the control is displaying User Preferences
and no button is pressed within 10 seconds,
the panel exits User Preferences without
saving any new settings.
Purge Cycle
(Blower Installations Only)
• Once a Session has ended, “ end” (of session) appears on the display indicating that
the Purge End Use Timer is active and counting down The purge cycle will begin
after 20 minutes.
a)
Pur is then displayed and will last for 1 minute during the purge cycle.
b) Once the Purge Cycle is finished, the system shuts down and the display is blank.
c) Turning on a pump or blower during the End Use Timer will stop the timer and start
a new session.
A Purge Cycle removes standing water
from the plumbing and dries the air
delivery system. This helps maintain a
sanitary plumbing system. The purge
cycle lasts for 1 minute.
• hot Water detection (only if a temperature sensor is installed)
Water that exceeds 111° F will display: [temperature] - too - hot.
The panel goes to normal operation when hot water is no longer detected.
• no Water detection
If no pump water is detected, the display will flash no - h2o when a button is pressed.
• system error detection
If an error occurs in the bath system, err will display.
Additional codes will follow to assist with diagnostics.
• led display:
con: “Configuration Settings”
t29: Time remaining in minutes
sP6: “Speed” (SP1 is lowest speed)
Pul: “Pulse” Mode
rol: “Rolling” (Blower cycles up and down in speed)
Pt3: “Pattern” of pulses (PT1 is lowest speed)

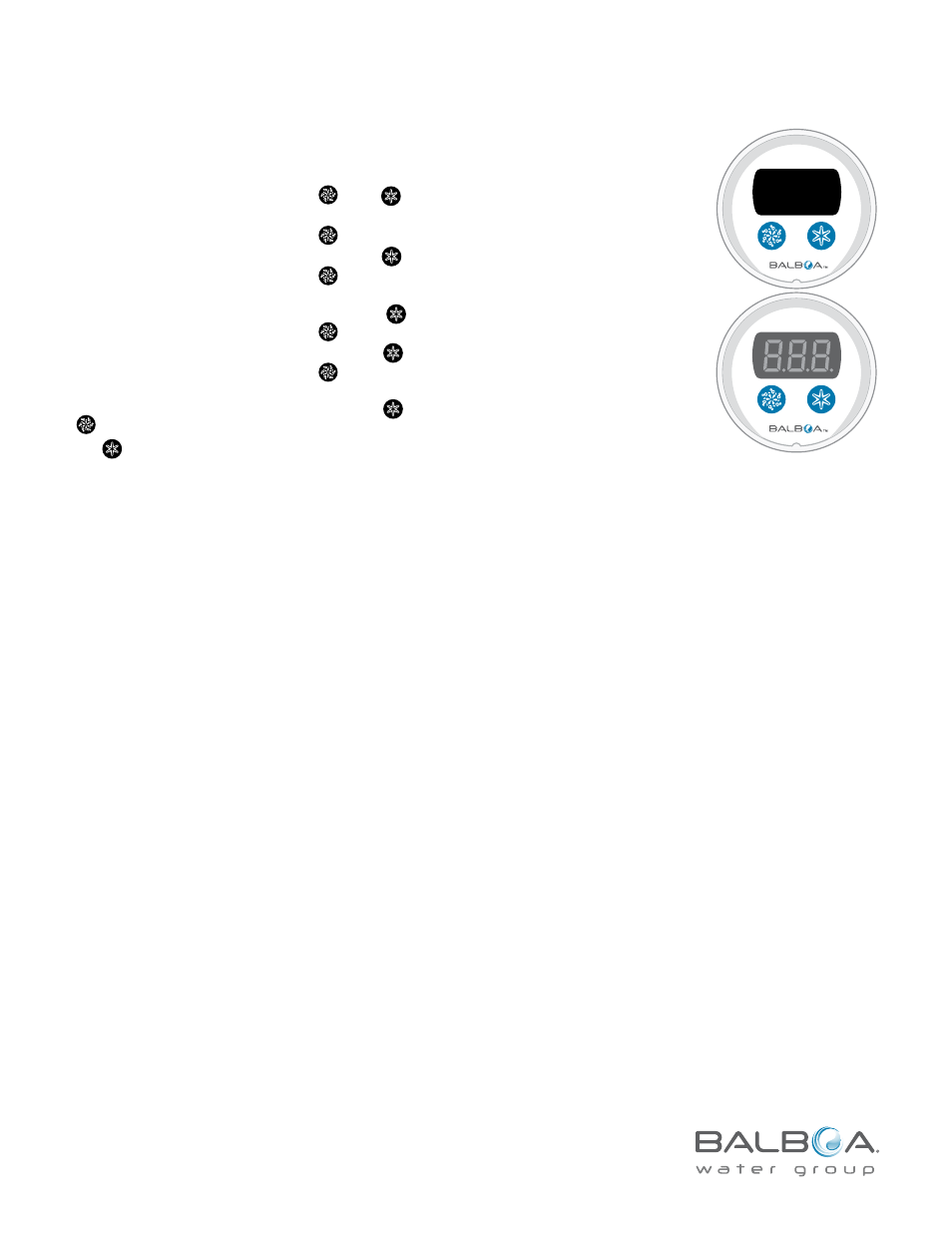

Display & Messages
• Display shows water display,
pattern changes, speed of
devices used, warning and error
messages.
• If all sensors are installed, the
water temperature will display
during a user session. The water
temperature and time remaining
will alternate on the display.
• how the information is
displayed can be adjusted in
User Preferences.
When setting user Preferences
Navigates from one menu to the next
Adjusts the variables in each menu
