Balboa Water Group Titan Bath Control - Manual (Page 37)

Manufactured under one or more of these patents. U.S. Patents: 5332944, 5361215, 5550753, 5559720, 5,883,459, 6253227, 6282370, 6590188, 6976052, 6965815, 7030343, 7,417,
834 b2, Canadian Patent: 2342614, Australian patent: 2373248 other patents both foreign and domestic applied for and pending. All material copyright of Balboa Water Group.
37
42135F

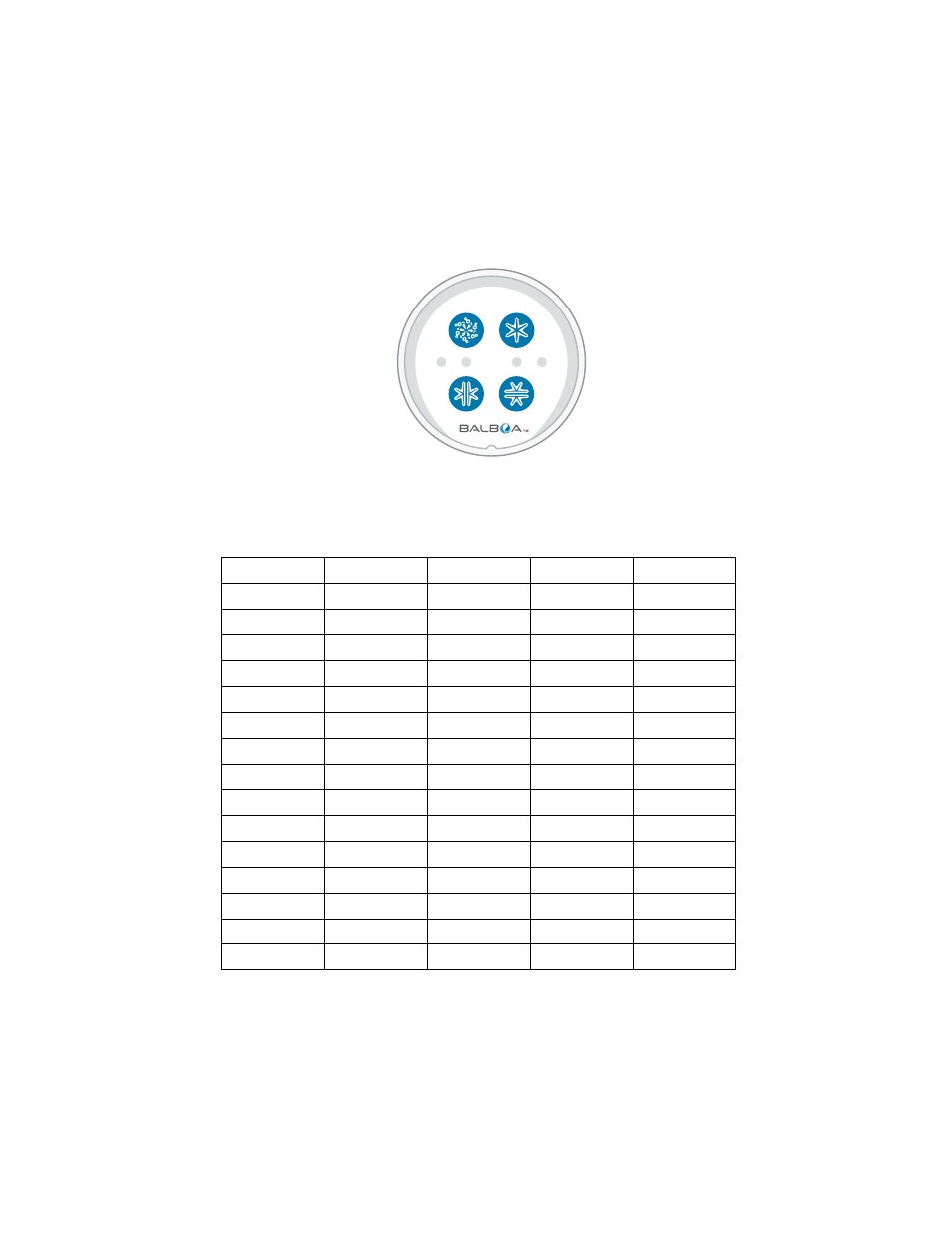

Generic BWG 4-button panel w/two valves - P/N 90022
Pump or
Blower
Valve Device
or Valve
User
Part No.: 90012
Overlay: 12014
Pump or
Blower
Valve Device
or Valve
Valve
Part No.: 90022
Overlay: 12983
Pump or
Blower
Up Device
or Valve
Down
Part No.: 90013
Overlay: 12013
config Button 1 Button 2 Button 3 Button 4
C01 PPumpV PLight - -
C02 PPumpV PLight PPillow4 PBackJet1
C03 PPumpV PLight PPillow1 PWFall3
C04 PPumpV PLight PBackJet1 PWFall4
C05 PPumpV PLight PPillow1 PPillow4
C06 PPumpV PBackJet1 SPillow1 SPillow4
C07 PPumpV SWFall3 SPillow1 PBackJet1
C08 PPump PLight - -
C09 PPump PLight PPillow4 PBackJet1
C10 PPump PLight PPillow1 PWFall3
C11 PPump PLight PBackJet1 PWFall4
C12 PPump PLight PPillow1 PPillow4
C13 PPump PBackJet1 SPillow1 SPillow4
C14 PPump SWFall3 SPillow1 PBackJet1
C15 BBlowerV BLight - -
