Installation of Conductive Water Sensor
The conductive water sensor can be installed low in the tub to
sense the presence of water to facilitate blowing out (purge)
an air injector system. It can also be mounted such that one
connection is in the suction line and the second connection
is installed in the water pressure line to act as a water level
sensor to prevent a pump from operating if the water level is
below a predetermined level.
The connections are attached to the plumbing with conductive

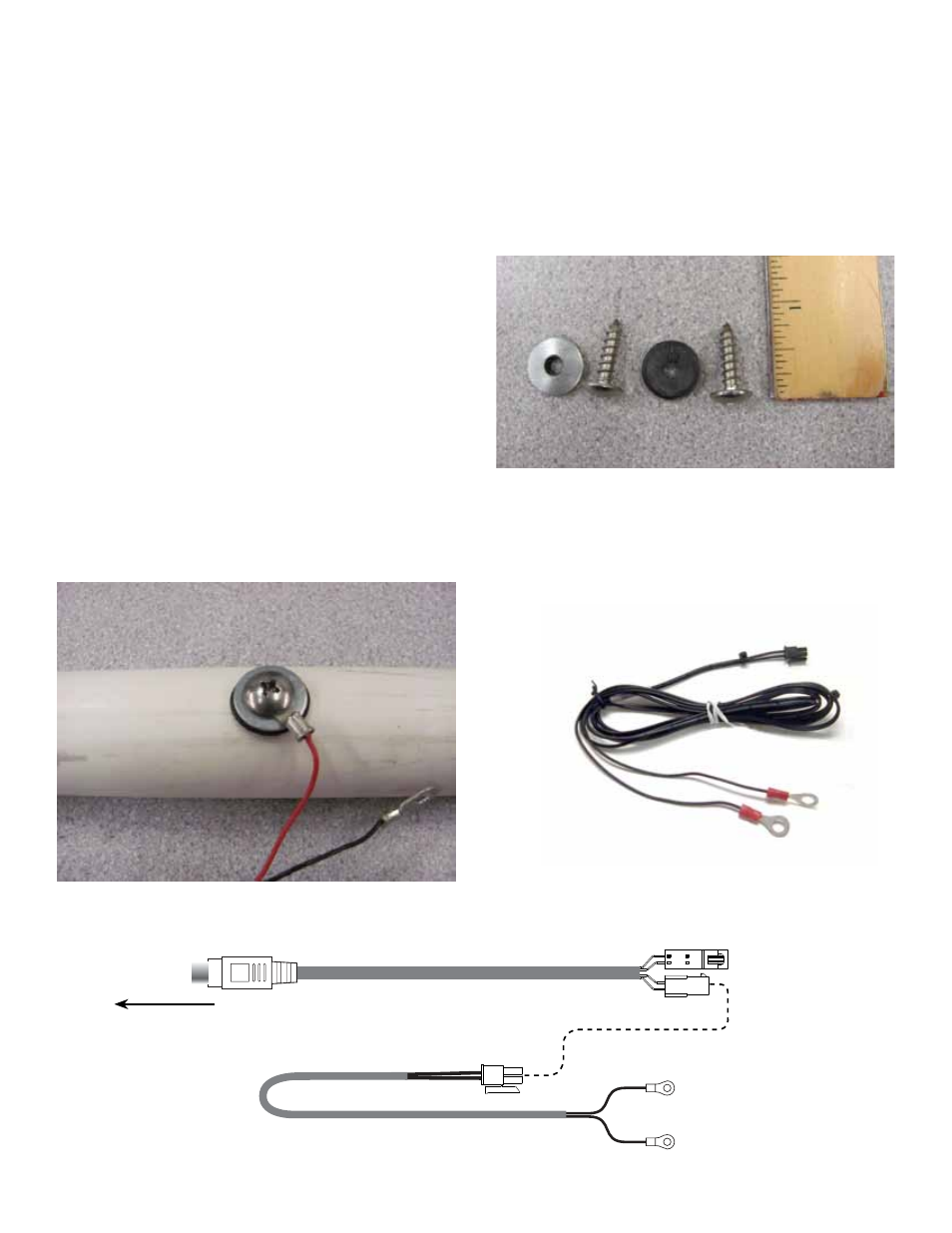

screws. The picture of Part No. 99749 shows the two screws
provided in the kit, with washers.
The picture below shows one of the conductive sensor wire
leads installed. The conductive screw holds the metal washer
against the rubber that contacts and seals the side of the pipe.
The other lead is installed in the same way. The sensor is then
plugged into a 6-Pin DIN water temperature and sensor cable
(Part No. 25751), and then into the control box.
Part no 25404
cable Water detection conductive 6 ft
Part no 99749
set (2 ea) of conductive screw
conductive wire sensor lead installed
12’ inch Length
6-Pin DIN Water Temperature & Level Sensor Material No. 25751
Plug into Bath Control
