BWG Euro Cyclone Jet Installation
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
(cont. other side)
Cut a hole in the spa wall for the jet. 1.
a. Cut a 1-1/2 in. diameter hole in the spa wall.
Position the gasket on the jet body, see Figure 1. 2.
Note
Silicone is optional for use with the “L” gasket design.
Insert the jet body through the hole in the spa. Make sure the gasket is flat and not crimped around the hole. 3.
Place the compensation spacer on the jet body with the flat side of the spacer against the back of spa wall. 4.
Thread the nut onto the body. The compensation spacer will center on the nut as it is tightened. 5.
a. Be sure the plumbing ports are adjusted to the desired position and tighten the nut hand-tight.
Note
To remove the barrel assembly, rotate in a counter clockwise direction until it stops. Using additional force, continue to rotate
the barrel assembly past the stop while pulling it out from the body.
Torque the nut to a maximum setting of 5 foot pounds. BWG has an installation tool for tightening the nut that is used with 6.
a customer supplied torque wrench. It can be ordered through BWG customer service.
Make the plumbing glue connections, or attach tubing to barbs on the jet body. Be sure that glue is not allowed to run into 7.
the jet body.
Install the barrel assembly into the jet body by inserting and rotating the barrel until it snaps into place. It will rotate freely 8.
left and right to the stop.
CAUTION
Do not over tighten as this may cause damage to parts and leakage may occur.
There should be plenty of room for the compensating ring to freely “float” as the nut is tightened.
If this ring is obstructed in any way, it will lose it’s effectiveness resulting in excessive and unequal force on
the sealing flange. This may cause damage to parts and leakage may occur.
90016000 Rev. C October 13, 2009

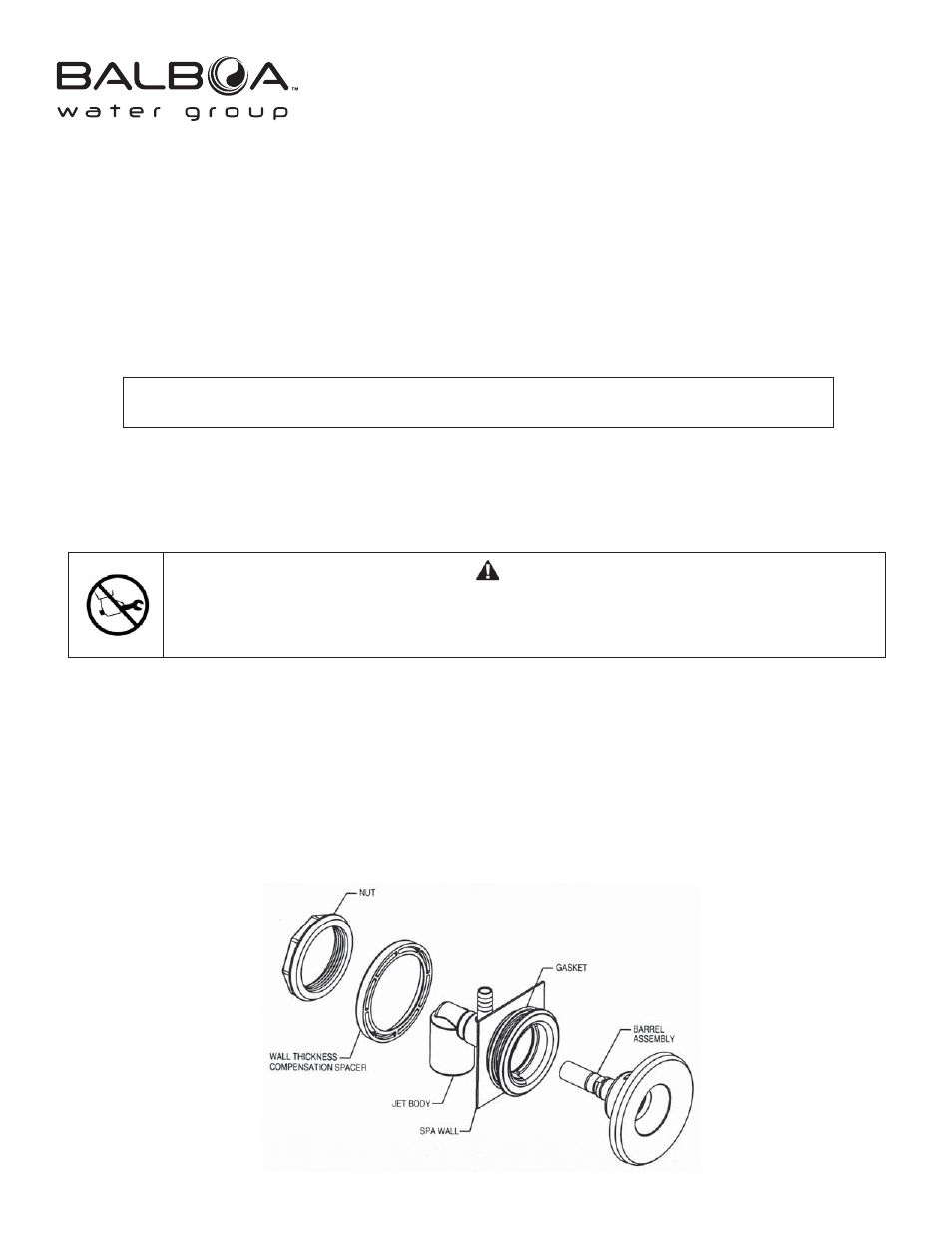

Figure 1
