Balboa Water Group 1 Air Control User Manual
1” air control instructions
1” AIR CONTROL INSTRUCTIONS
The correct hole size for the 1” air control is 1-3/4”
Before drilling hole to install the air control, make sure mounting surface is flat. This will help assure
1.
the best seal.
Drill one 1-3/4” hole for the air control.
2.
Remove nut (#4) and gasket (#3) from air control.
3.
Place silicone on backside of flange of air control body (#2) and install air control through hole in
4.
spa/bathtub.
Place gasket (#3) onto body (#2) on the outside of spa/bathtub.
5.
Hand tighten nut (#4) onto body (#2).
6.
Remove excess silicone from around flange of air control and surface of spa/bathtub.
7.
Glue 1” pipe to bottom of air control.
8.
DO NOT USE ANY TYPE OF PETROLEUM BASED LUBRICANTS ... THEY WILL DAMAGE THE
PRODUCT.

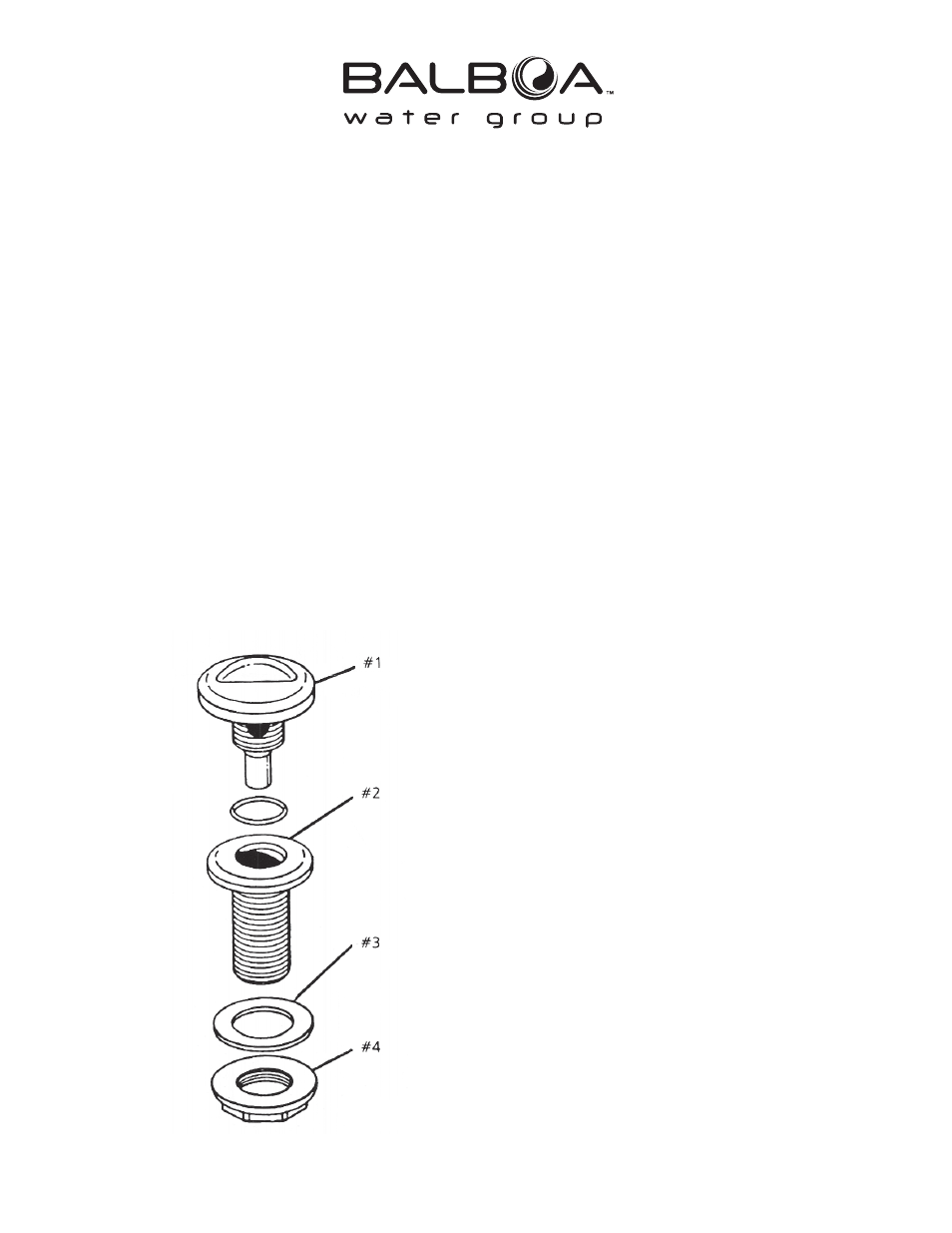

#1 1” AIR STEM ASSEMBLY 30-2108
#2 1” AIR BODY ASSEMBLY 30-2107
#3 1”
GASKET
30-3705
#4 1”
NUT
30-3706
88-2100 Rev C July 1, 2009
