VERTA’SSAGE INSTALLATION INSTRUCTIONS

Locate a flat surface 7 5/8” x 5 1/4” inches. (IF USING LOCK NUT (#2) RATHER THAN BACKING PLATE, A FLAT

1.

SPOT WITH CLEARANCE FOR THE NUT (APPROX. 8” DIA.) IS RECOMMENDED)
Using the template, mark hole centers for the hole saw cutouts (FIG. A).

2.

2a. Cut TWO (2) overlapping holes using 3 3/8 hole saw (FIG. B).

2b. Cut remaining tub wall (shaded areas) to match the template, using a sabre saw

or rotary drum sander.

Insert (from the inside of the tub) the Verta’ssage canister (#5) through the tub wall.

3.

3a. IF USING BACKING PLATE (#3): Use the canister as a guide.

Mark holes to be drilled.

Remove the canister from the tub.

3b. IF USING NUT (#2): DO NOT MARK AND DRILL SCREW HOLES, THESE ARE NOT

REQUIRED FOR INSTALLATION.

Drill #8 holes (3/16” diameter) for each screw to be used to mount canister to spa.

4.

Apply a generous amount of silicone on back of flange, canister and in screw holes.

5.

Push canister (#5) through hole from inside of tub.

6.

Put silicone around the hole, on back of spa.

7.

Put gasket (#4) over silicone on back of spa.

8.

Put backing plate (#3) over gasket. IF USING NUT: INSTALL NUT, TIGHTEN 1/8 TO 1/4 TURN PAST SNUG. SKIP

9.

TO #12.
Install screws in pattern shown below, tighten until snug.

10.

Tighten all screws an additional 1/4 turn in the pattern shown below.

11.

Install flow path (#6) in unit by twist locking retaining ring into canister (#5) 1/4 turn clockwise.

12.

install jet (#1) with air line up, by gluing it onto canister using PVC cement.

13.

Place grill on front of canister making sure pin in flow path (#6) locates inside track at front of grill (#7).

14.

THIS IS VERY IMPORTANT. IF THE PIN IS NOT IN THE TRACK AT THE CENTER OF THE GRILL,

THE FLOW PATH WILL NOT OPERATE.
Fasten grill to canister by lining up tabs on the grill with notches on canister and pushing until grill snaps in place.

15.

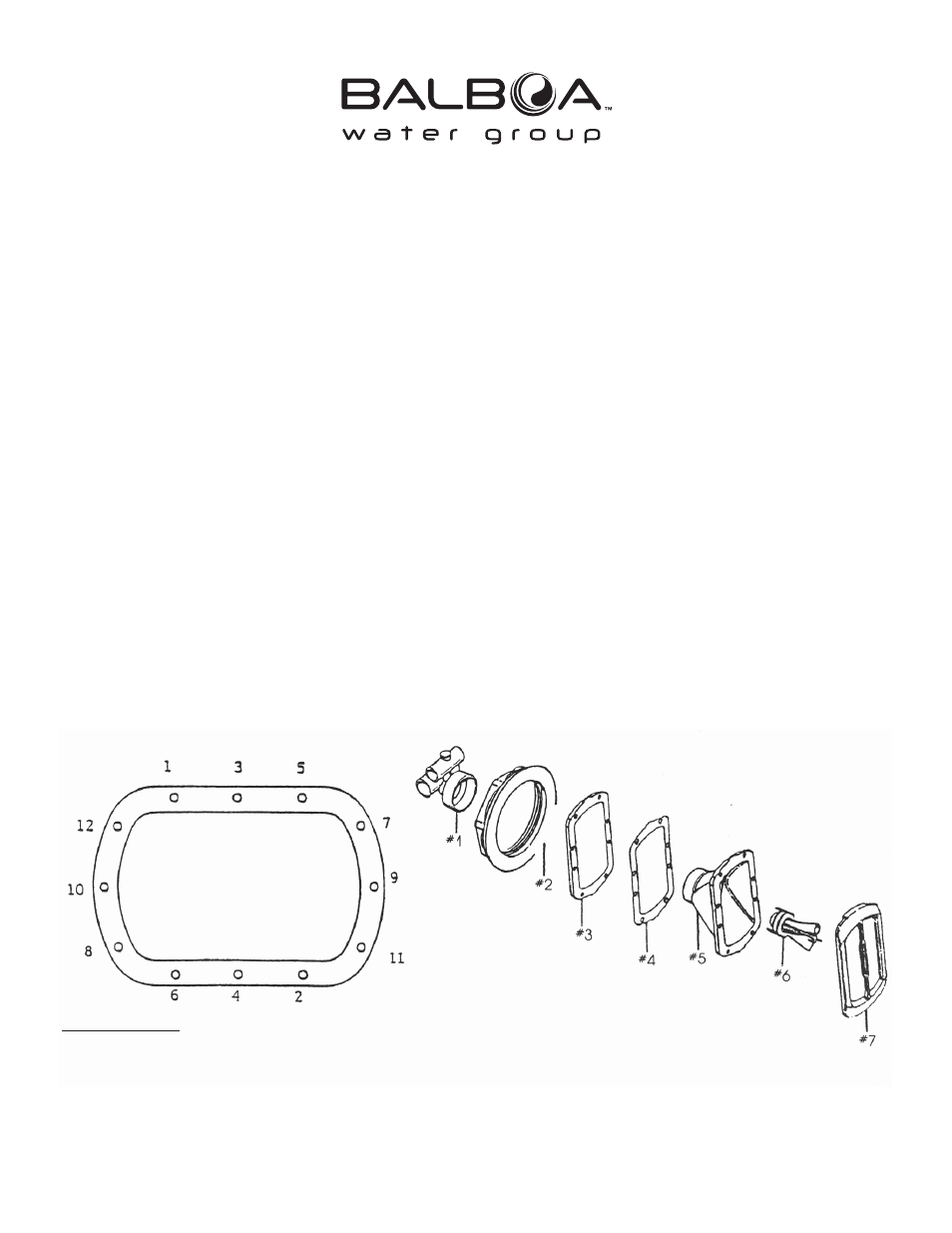

SCREW INSTALLATION SEQUENCE

JET BODY

16-4550

1.

VERTA’SSAGE NUT

16-5619

2.

VERTA’SSAGE BACKING PLATE

16-5618

3.

VERTA’SSAGE GASKET

16-5623

4.

VERTA’SSAGE CANISTER

16-5620

5.

VERTA’SSAGE FLOWPATH ASSY 16-5560

6.

VERTA’SSAGE GRILL

16-5612

7.

NOTE: DO NOT overtighten screws.
You will damage the Verta’ssage.

88-4073 Rev B June 2, 2009
