Installation of Temperature Sensor

The temperature sensor mount can be installed onto any 1.5” or
2” pipe. For installation of the temperature sensor, refer to the
diagrams below.

note:

• Mount temperature sensor before heater.
• Mount the assembly in a position so that it is will not come

in contact with anything that can damage the sensor and
assembly.

Procedure

1. Find a suitable location for the temperature sensor. In

relation to water flow, the sensor must be placed before
the heater.

2. Drill a 3/8

inch diameter hole as a receptacle for the temp.

sensor mount.

3. Remove burrs, if any.
4. Before applying any solvents, position the sensor mount

onto the pipe to be sure that the surfaces fit properly
together and make good contact.

5. Prepare the PVC surface. Preferably use a PVC Solvent

primer before applying solvent. Apply the PVC solvent
according to the manufacturer’s instructions. Be careful
not to allow the solvent to get into the holes of the pipe or
sensor mount.

6. Press and hold firmly in place, or affix according the

manufacturer’s instructions.

7. Insert the temperature sensor into the fitting. Tighten the

nut to secure the temperature sensor in place.

8. Plug the sensor into a 6-Pin DIN water temperature sensor

cable (Part No. 25751), and then into a 6-Pin DIN receptacle
on the control box.

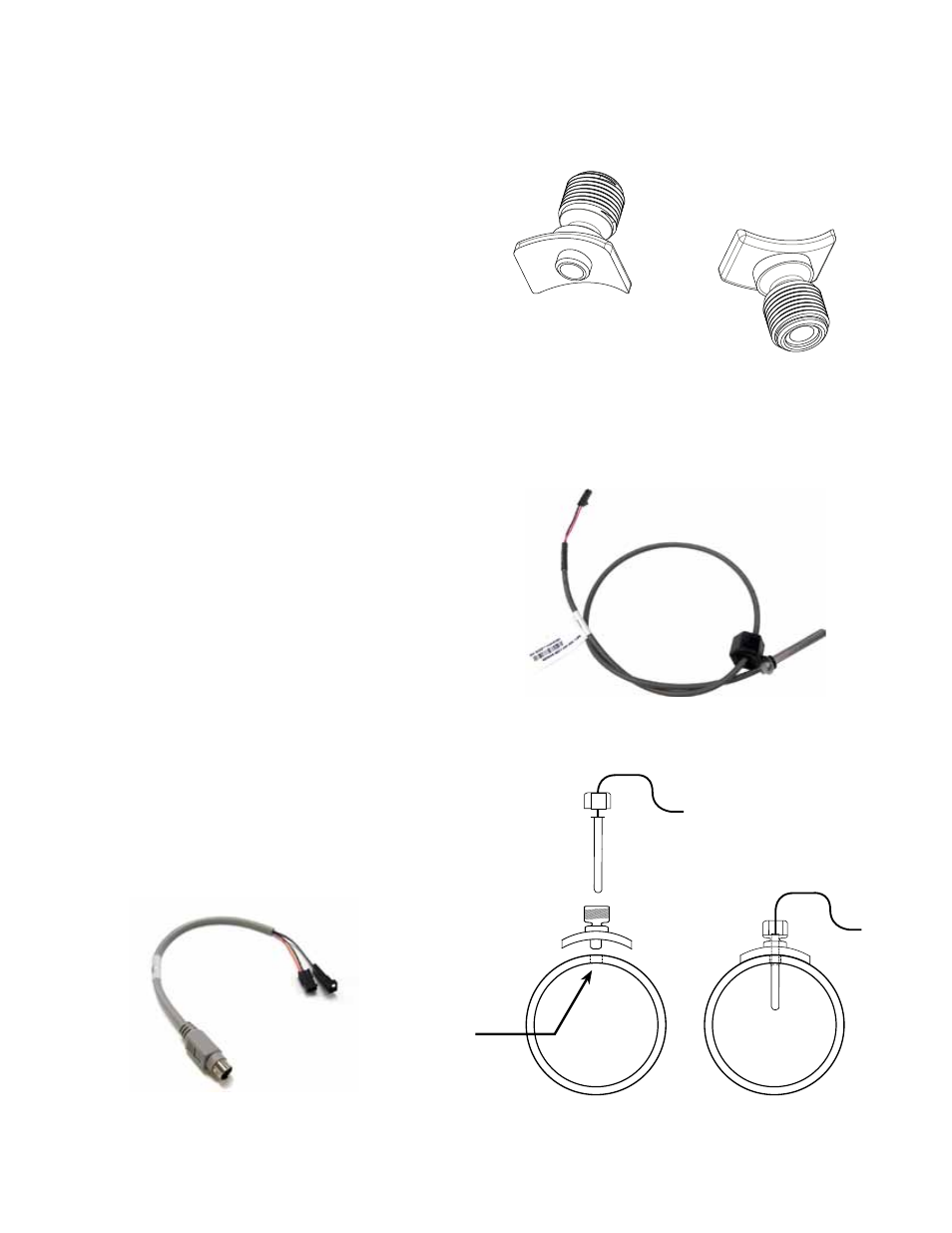

temperature sensor mount

(two views)

cross sectional view

Installation of temperature sensor in mount

drill 3/8” hole

Part no 381

1 5” titan temp sensor saddle Barb

Part no 382

2 0” titan temp sensor saddle Barb

Part no 32016

sensor assy kit (24in, 1/4in dia )

Part no 25751

6-Pin dIn Water temperature & level sensor
