- 9
 Lock parking brake.
 Start the motor.
Only Kärcher Customer Service is author-
ised to carry out maintenance tasks on the
hydraulic unit.

Check all hydraulic hoses and connec-
tions and ensure that they are leak-proof.
ƽ
Danger
Danger of scalding by boiling water! Let the
cooler cool down for at least 20 minutes.


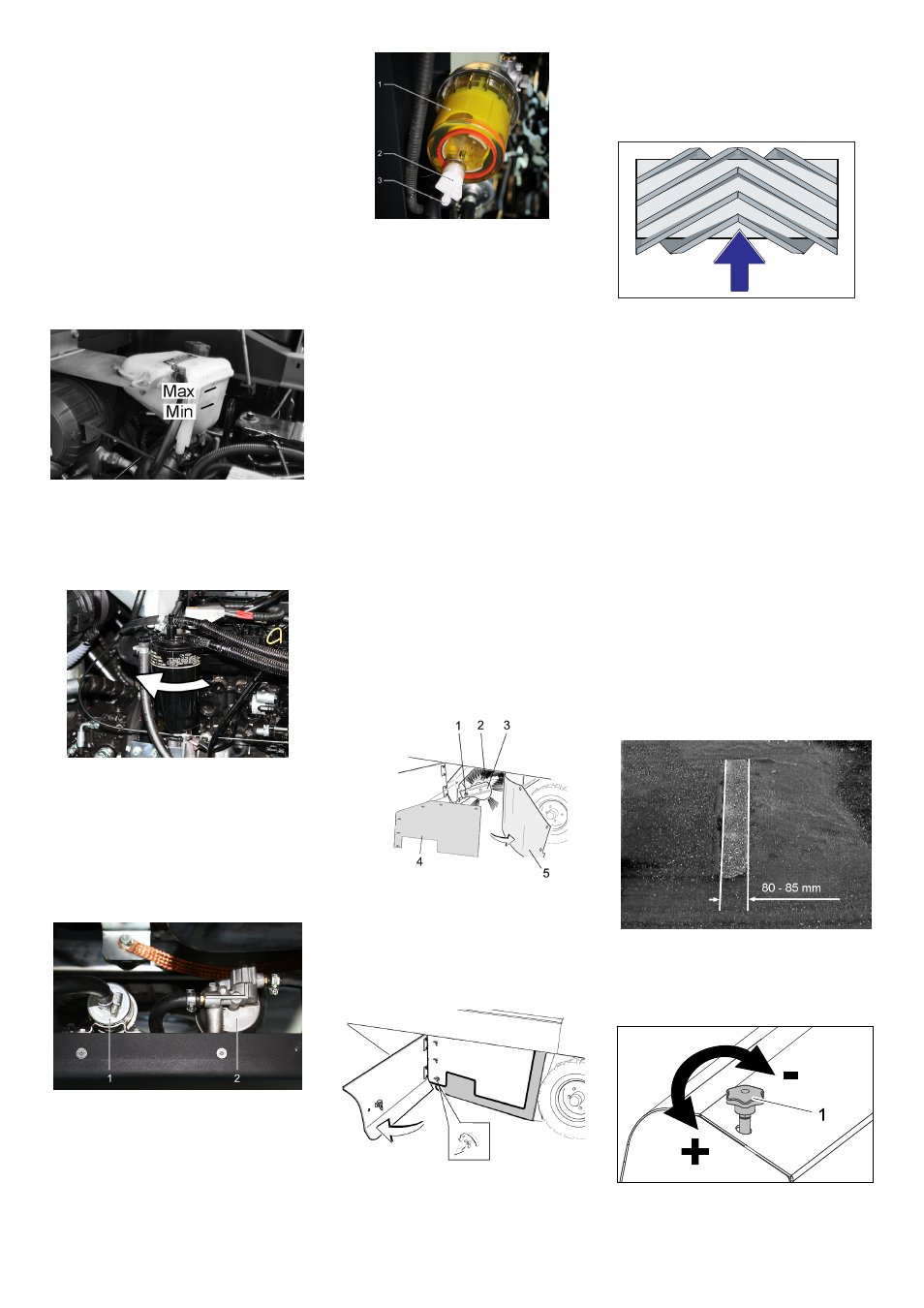

Check the cooling water level on the
balance reservoir (water level between
MIN and MAX).
 Clean cooler lamella.
 Check cooler hoses and connections
and ensure that they are leak-proof.
 Clean the fan.
 Unscrew the fuel filter and replace it.
Note
Fill the fuel filter with diesel fuel prior to in-
stalling it.

Screw the new fuel filter in.
 Torque the fuel filter to 20 Nm.
1 Fuel pump
2 Water separator
1 Water separator
2 Drain screw
3 Drain opening
Note
Place a suitable container under the drain
opening to catch the condensation water.

Open the drain screw, drain the con-
densate and close the drain screw.
 Start the motor.
 Raise the waste container up to the
end-position.
 Switch off engine.
 Lock parking brake.
 Use the safety bar for emptying from a
height.
 Remove belts or cords from roller
brush.
 Remove the safety bar.
 Start the motor.
 Lower the waste container up to the
end-position.
 Switch off engine.
1 Fastening screws of the roller brush in-
take
2 Roller brush
3 Roller brush intake
4 Holding plate for side seal
5 Side seal
 Open the side covers using a key.
 Unscrew the wingnuts from the holding
plate side seals and remove the holding
plate.
 Flip the side seal out.
 Uncscrew the retaining screw of the
roller brush intake, and swing the intake
to the outside.
 Pull out roller brush.
Installation position of roller brush in direc-
tion of travel (top view)
Note: When installing the new roller brush,
ensure correct positioning of the bristle as-
sembly.

Install new roller brush. The nuts of the
roller brush must be inserted on the
notches of the opposite crank.
Note: Once the new roller brush has been
installed, the sweeping track must readjust-
ed.
 Check tyre pressure.
 Switch off suction blower.
 Drive sweeper on to a smooth, even
surface covered with a visible layer of
dust or chalk.
 Set the programme switch to sweep
with roller brush.
 Set programme selection switch to
"Transport drive".
 Drive machine backwards.
 Check sweeping mirror.
The sweeping track should have an even
rectangular shape which is 80-85 mm wide.
Adjusting the sweeping track:
1 Adjusting screw
Check hydraulic unit
Check water cooler and maintain it
Replace the fuel filter
Draining the condensation water from
the diesel water separator
Checking roller brush
Replacing roller brush
Check and adjust roller brush sweeping
track
