- 4

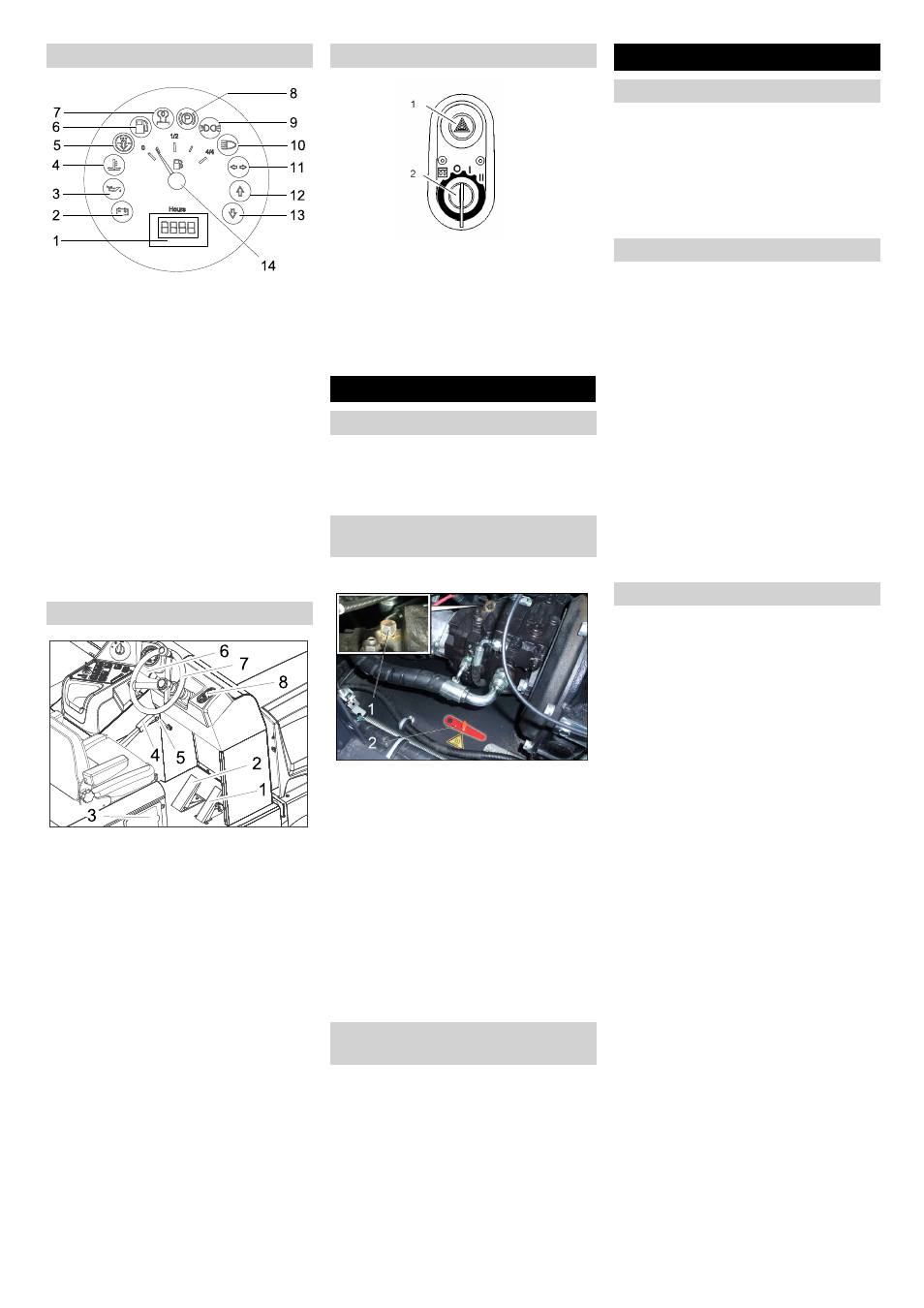

1 Operating hour counter
2 Charge warning lamp
3 Oil pressure warning lamp
4 Cooling water temperature warning
lamp
5 Motor suction air
6 Warning lamp fuel reserve
7 Preglow indicator light
8 Indicator lamp (not connected)
9 Indicator lamp for position lights
10 Indicator lamp for dipper
11 Indicator lamp for direction indicator
12 Indicator lamp - forward driving direc-
tion
13 Indicator lamp - reverse driving direc-
tion
14 Tank indicator
1 Drive pedal
2 Brake pedal
3 Tank door
4 Parking brake
5 Blower lever
6 Horn/lighting/blinker (option)
Horn: Press the outside lever.
Lights: Rotate the outer ring
Blinking: Press the lever down or up
7 Steering wheel
8 Ignition lock
1 Warning blinking switch (option)
2 Ignition key
– Filament symbol : Pre-heat
– Position 0: Switch off engine
– Position 1: Ignition on
– Position 2: Start the engine
 Loosen parking brake; press brake
pedal at the same time.
 Activate the parking brake; press brake
pedal at the same time.
 Open engine cover.
1 Screw for freewheeling
2 Special tool
 Open the screw for the freewheeling by
about 1 revolution (counter-clockwise).
Use special tools.
Note
The special tool (red screwdriver) is located
in a holder in the vehicle frame, next to the
freewheel.
Caution
Do not move the machine for long distanc-
es without engaging self-propulsion; a
speed of 10 km/h should not be exceeded.
 Close the screw for freewheeling all the
way.
Use special tools.
 Read the operating instructions of the
engine manufacturer before start-up
and follow the safety instructions care-
fully.
 Park the sweeper on an even surface.
 Remove ignition key.
 Lock parking brake.
 Check fill level of fuel tank.
 Check engine oil level.
 Check cooler water level.
 Check tyre pressure.
 Check the sweeping roller and the side
brush for wear and wrapped belts.
 Check the wheels for tied up belts.
 Check the centrifugal separator and the
air filter, clean if required.
 Check function of all operator control el-
ements.
 Check appliance for damages.
 Clean the dust filter with the filter clean-
ing button.
Note: For description, see section on Care
and maintenance.
ƽ Danger
Risk of explosion!
– Only use the fuels specified in the Op-
erations Manual.
– Do not refuel the machine in enclosed
spaces.
– Smoking and naked flames are strictly
prohibited.
– Ensure that no fuel reaches the hot
open surfaces.
 Switch off engine.
 Open the tank door.
 Open the tank lock.
 Fill in diesel.
 Wipe off any spilt fuel and close fuel fill-
er cap.
 Close the tank door.
Multifunction display
Operating elements
Ignition switch
Before Startup
Lock/ release parking brake
Moving sweeper without engaging
self-propulsion
Moving sweeper by engaging self-
propulsion
Start up
General notes
Inspection and maintenance work
Daily before starting operations
Refuelling
20 EN
