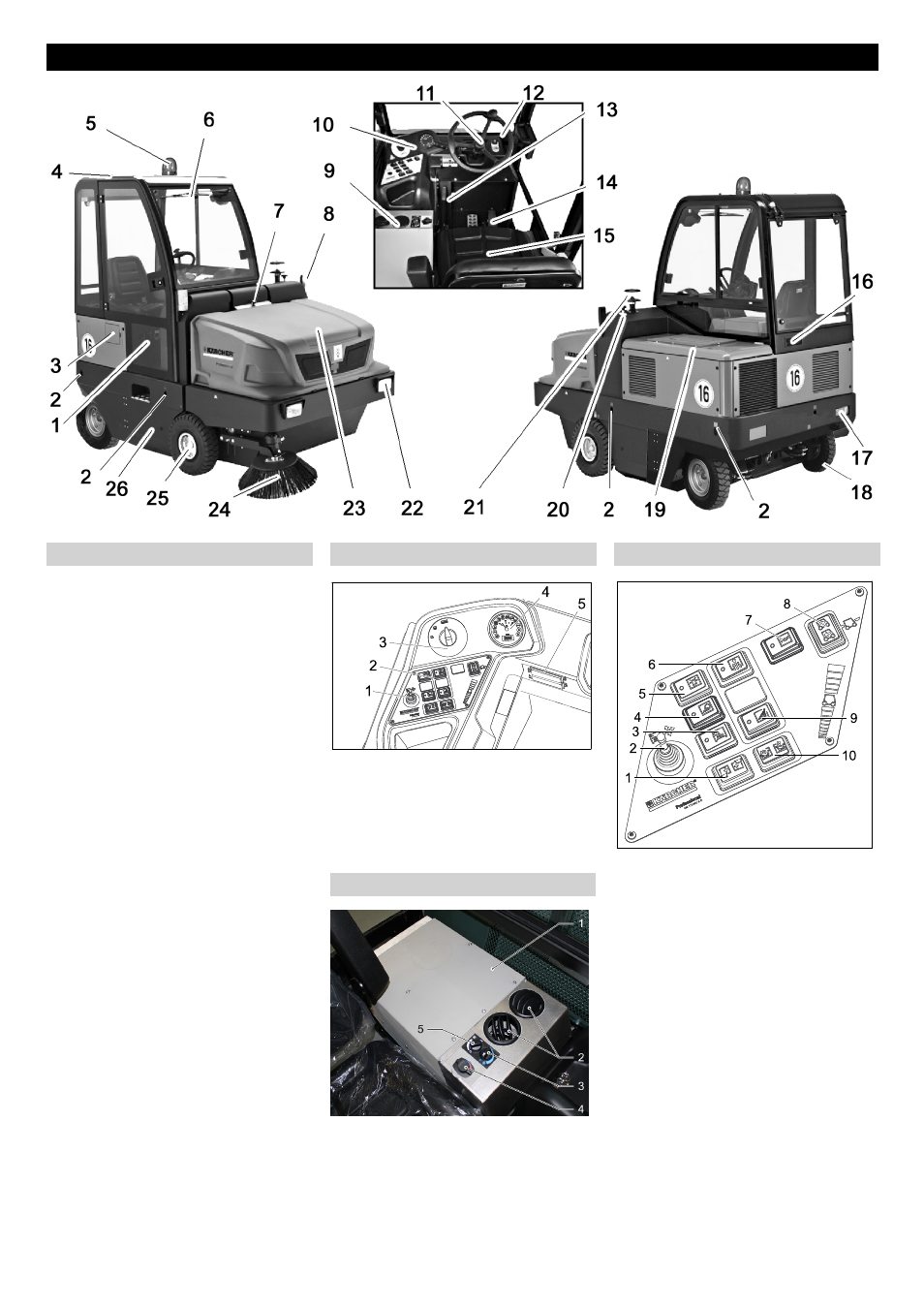

1 Cabin door (option)
2 Lashing point (4x)
3 Tank door
4 Driver cabin (optional)
5 Beacon lamp
6 Windshield wiper (option)
7 Lock of appliance hood
8 Blinker (option)
9 Heating/air conditioning (option)
10 Operating field
11 Steering wheel
12 Ignition lock
13 Parking brake
14 Pedals
15 Seat (with seat contact switch)
16 Ventilation grille (option)
17 Lighting system (optional)
18 Rear wheel
19 Engine cover
20 Brush roller adjustment
21 Centrifugal separator
22 Lighting system (optional)
23 Waste container
24 Side brushes
25 Front wheel
26 Roller brush access
1 Adjustment lever, third side brush (op-
tion)
2 Function keys
3 Programme switch
4 Multifunction display
5 Fuse box - work station
1 Heating/air conditioning
2 Ventilator nozzles
3 Rotary knob, adjustment of cold air from
air conditioning
4 Temperature regulator of heater
5 Rotary knob, adjustment of blower
speed
1 Raise/lower waste container
2 Adjustment lever, third side brush (op-
tion)
3 Third side brush ON/OFF (option)
4 Lights
5 Beacon lamp on/off
6 Horn
7 Filter cleaning for dust filter
8 Blinker switch
9 Irrigation of side brush (optional)
10 Open/close container lid
Operating and Functional Elements
Illustration of sweeper Operating field
Heating/air conditioning (option)
Function keys
