PowerBlade PBC18 Installation Guide
83
When setting the DIP switches, consider the following:
❑ For a twisted pair port(s), setting the AUTO NEG switch to either
ON or OFF enables or disables auto-negotiation on the port. If you
disable auto-negotiation, be sure to set the DIP switches for the
port’s speed and duplex mode to match the speed and duplex
mode of the end-node.
❑ For a fiber optic port, set the port’s duplex mode using the
appropriate DUPLEX MODE DIP switch. This setting must match
the duplex mode capability of the end-node to be connected to
the port.
J6 Jumper
The AT-PB200 and AT-PB202/x Series Switch modules feature a J6
jumper. There are two possible jumper settings: Enable and Disabled. If
the chassis does not contain an AT-PBM02 management module, set the
J6 jumper to the Enable (RIGHT) position. If the chassis contains an
AT-PBM02 management module, set the J6 jumper to the Disabled
(LEFT) position. Disabled is the factory default setting. Refer to Figure 33
for the location of the J6 jumper.

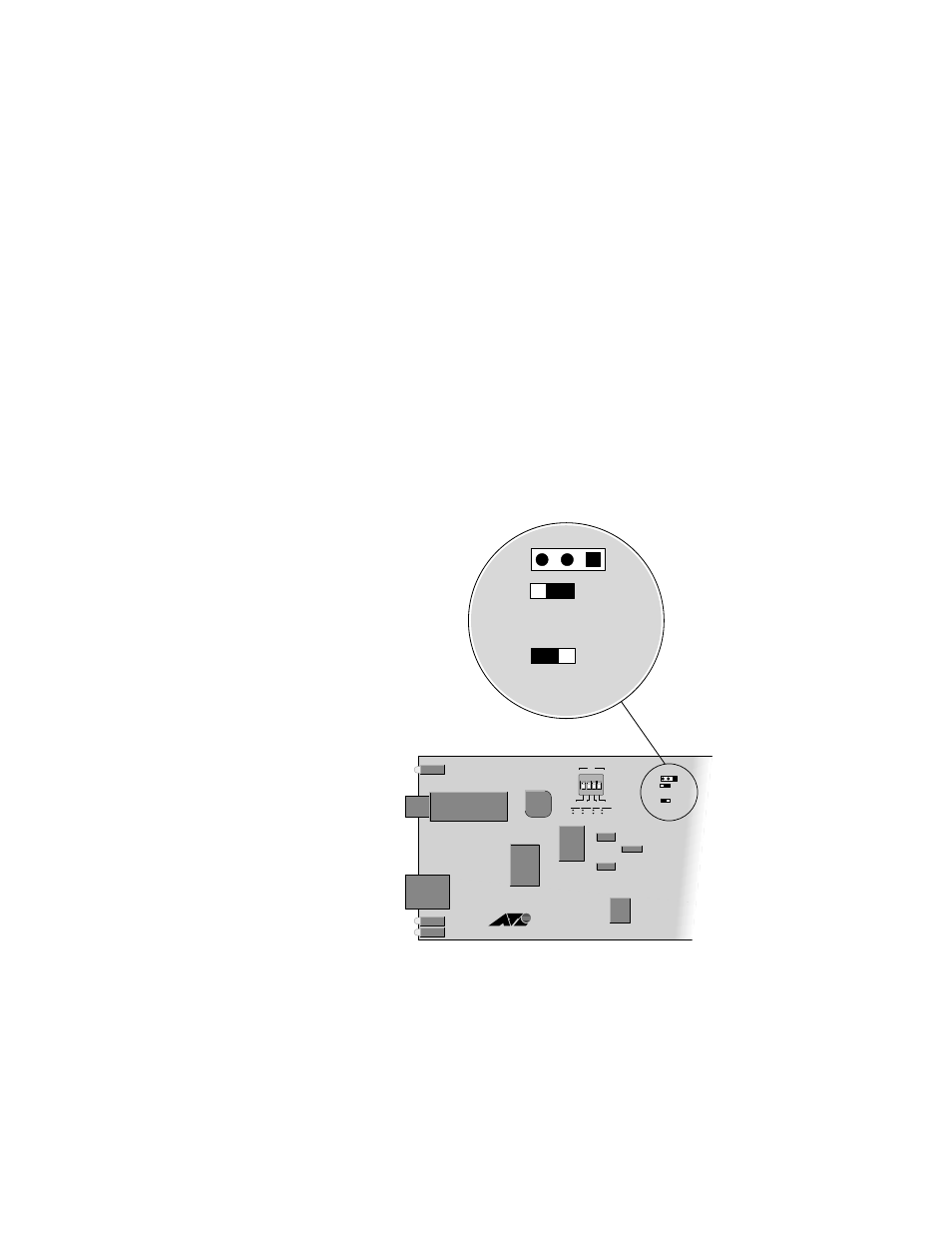

Figure 33 J6 Jumper Location
PORT TX TX
SPEED ( Mbps ) DUPLEX MODE AUTO NEG DUPLEX MODE
TX FX
10
100 HALF
FULL OFF
ON HALF
FULL
SW2
ON
1 2 3 4
J6
BACKPLANE CONTROL
ENABLE
DISABLE
J6
BACKPLANE CONTROL
ENABLE
DISABLE
