PowerBlade PBC18 Installation Guide

53

BNC

Termination

Switch

(AT-PB15 only)

The BNC Termination switch on the AT-PB15 offers 50

Ω

termination

without the use of a T-connector and 50

Ω

barrel terminator. Only end-

point nodes need 50

Ω

termination. Internal nodes on a thinnet

segment should be connected to the cable through standard 10Base2
T-connectors. Figure 22 shows the location of the BNC Termination
switch on the AT-PB15.

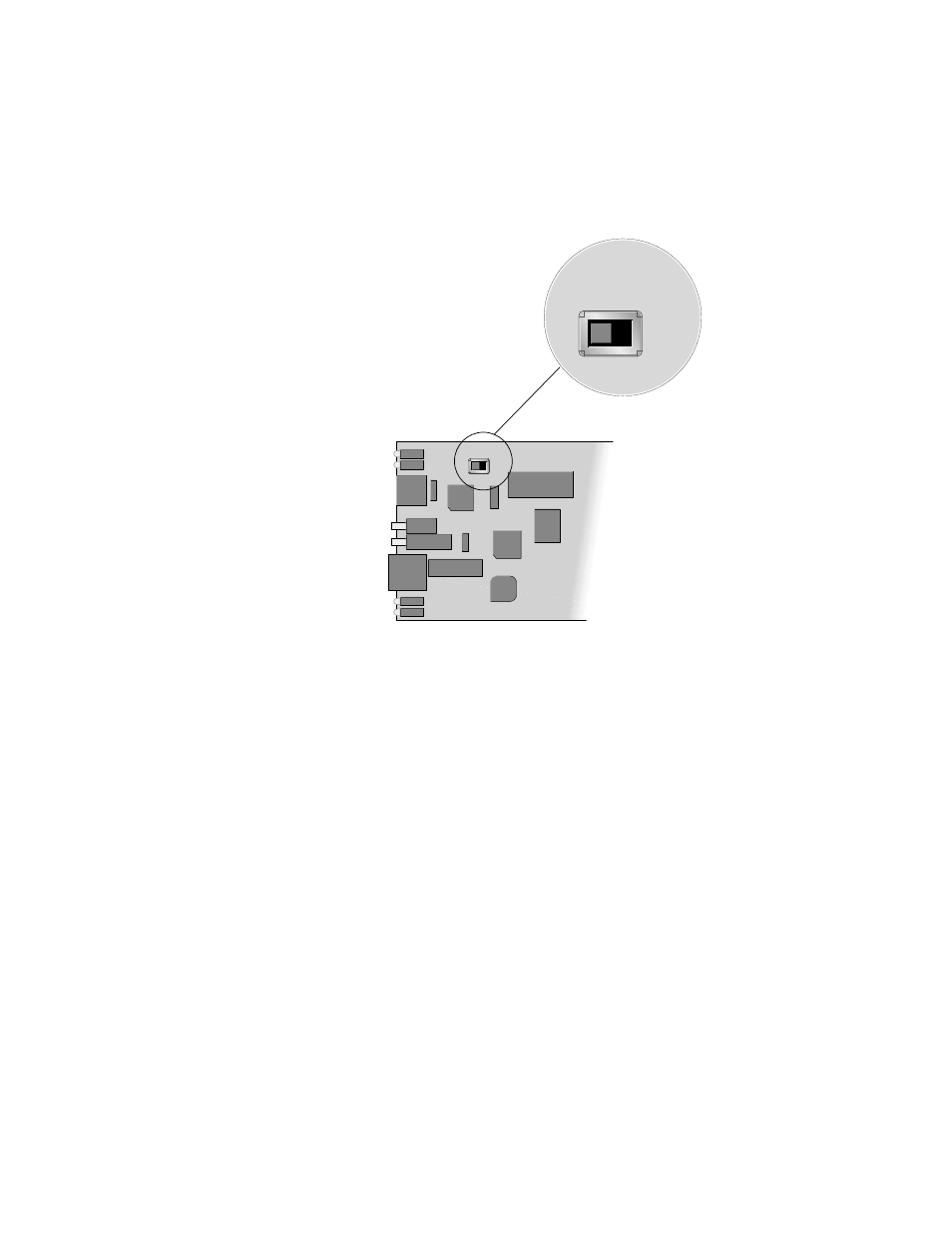

Figure 22 BNC Termination Switch

BNC TERMINATION

SWITCH

ON

OFF

SW2

BNC TERMINATION

SWITCH

ON

OFF

SW2
