Installing the Chassis on a Desktop or in a Rack
28
Installing the Chassis on a Desktop
This section explains how to install the chassis on a desktop. To install
the chassis in a rack, refer to
Installing the Chassis in a Rack on page 29.
For desktop installation, perform the following procedure:
1. Remove all the items from the shipping package and store the
packaging material in a safe location. In case you need to return the
chassis to Allied Telesyn, you will need to ship the unit back using as
much of the original packaging material as possible.
2. Place the chassis upside down on a level, secure surface.
3. Attach one of the protective rubber feet to each corner of the
chassis, then turn the unit right side up. See Figure 6.

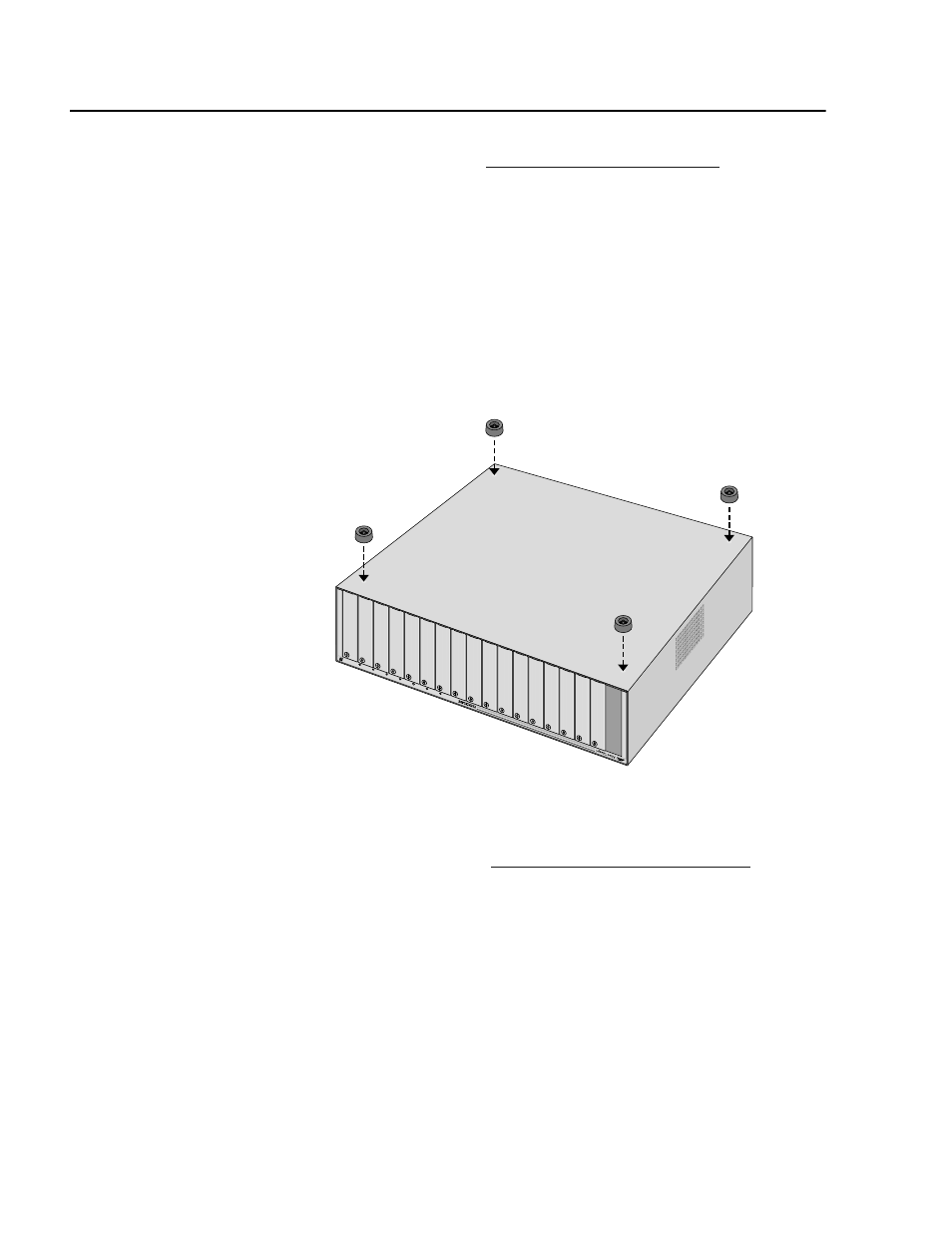

Figure 6 Attaching the Protective Rubber Feet
4. Apply power to the chassis by connecting the AC power cord or DC
wires. Refer to Chapter 3, Installing a Power Supply Module on page
33 for instructions.
