Installing a Switch Module
82
Table 29 lists the pinouts of the RJ-45 ports for both MDI and MDI-X
wiring configurations.
Table 29 RJ-45 Pinout
DIP Switches
The DIP switches are used to manually configure the operating
characteristics of the ports. These characteristics include the port speed,
duplex mode, and auto-negotiation.
On the 100Base-FX fiber optic port, you can manually set the duplex
mode to either half-duplex or full-duplex.
On the 10/100Base-TX twisted pair port, you can manually set the speed
of the port to either 10 Mbps or 100 Mbps, set the duplex mode to either
half-duplex or full-duplex and enable or disable auto-negotiation.
Enabling auto-negotiation will automatically set the port’s speed and
duplex mode.
The DIP switches are located on the board. Refer to Figure 32.

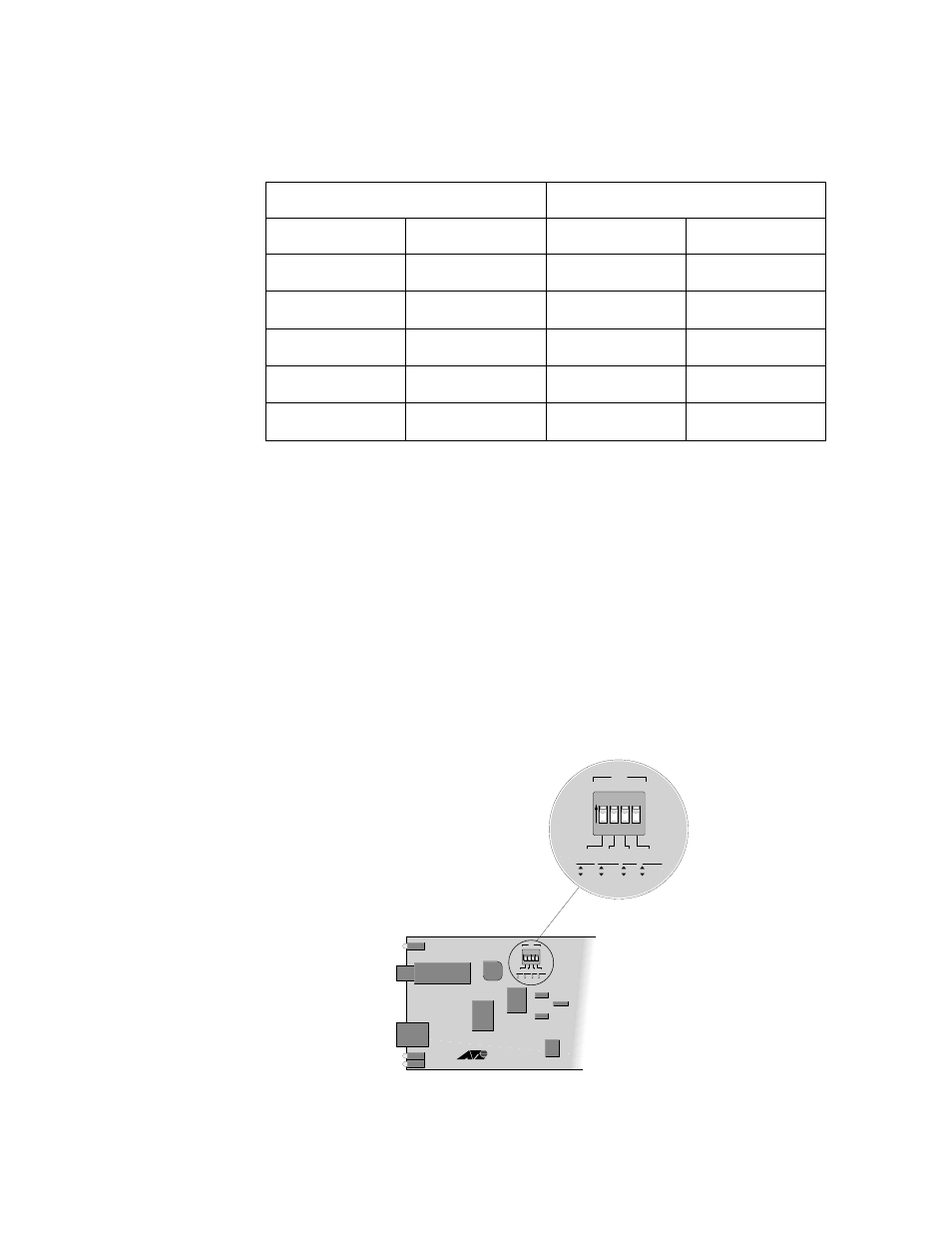

Figure 32 PowerBlade Switch Modules DIP Switches
MDI MDI-X
Pin Signal Pin Signal
1 TD + 1 RD+
2 TD- 2 RD-
3 RD+ 3 TD+
6 RD- 6 TD-
4, 5, 7, 8 N/A 4, 5, 7, 8 N/A
PORT TX TX
SPEED ( Mbps ) DUPLEX MODE AUTO NEG DUPLEX MODE
TX FX
10
100 HALF
FULL OFF
ON HALF
FULL
SW2
ON
1 2 3 4
PORT
TX TX
SPEED
( Mbps )
DUPLEX
MODE
AUTO
NEG
DUPLEX
MODE
TX FX
10
100 HALF
FULL OFF
ON HALF
FULL
SW2
ON
1 2 3 4
