PowerBlade PBC18 Installation Guide
29
Installing the Chassis in a Rack
The chassis can be installed in a 19-, 23-, or 25-inch rack. It is
recommended that you install the chassis in the rack before installing
the PowerBlade modules.
For rackmount installation, perform the following procedure:
1. Remove the protective rubber feet from the bottom of the chassis, if
attached, as shown in Figure 7.

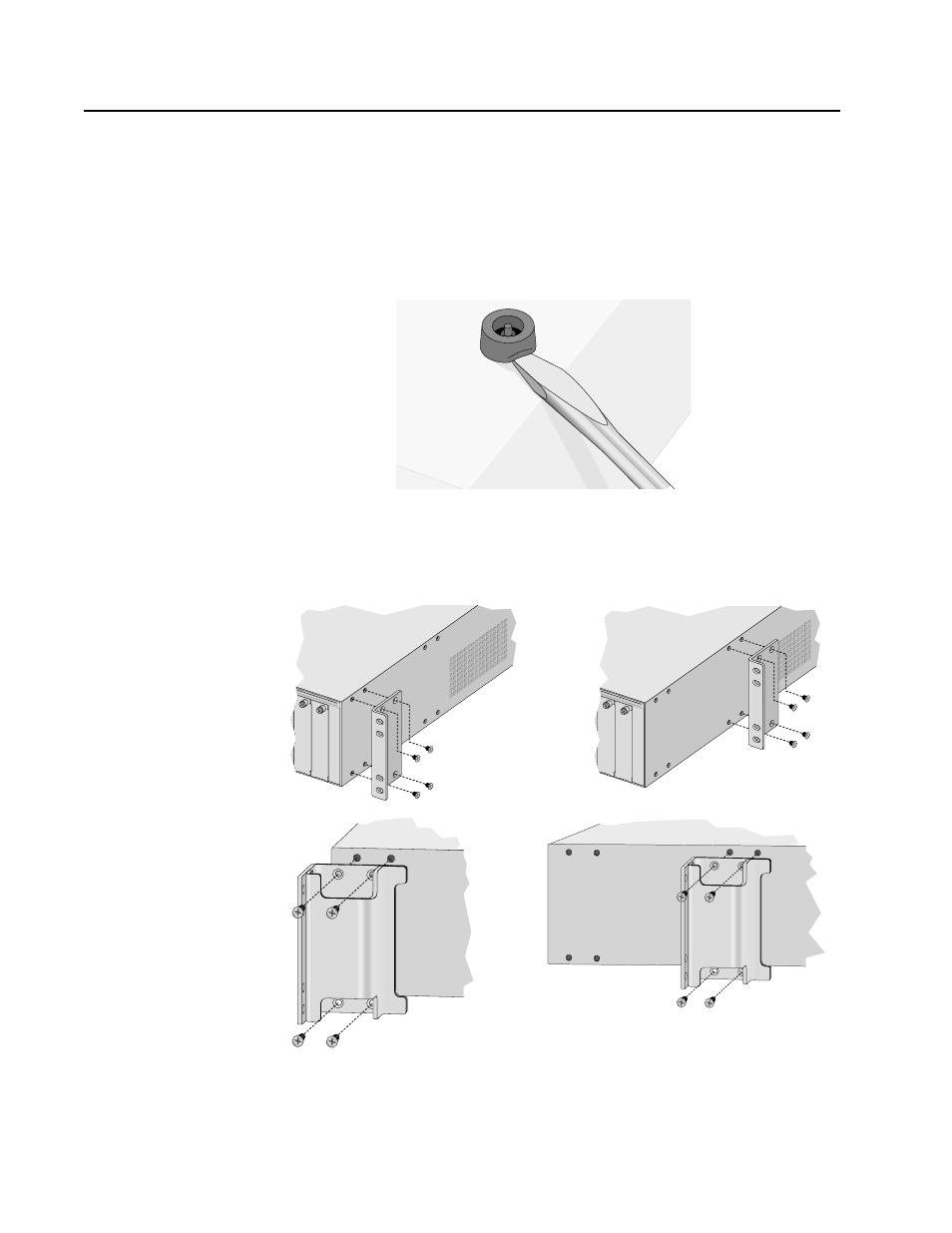

Figure 7 Removing the Protective Rubber Feet
2. Attach the brackets to either the front or middle of the side of the
chassis, as shown in Figure 8.
Figure 8 Attaching the Brackets to the PowerBlade PBC18
19-inch Bracket
19-inch Bracket
23- and 25-inch
23- and 25-inch
Installation A
Installation B
Bracket Installation A
Bracket Installation B
