PowerBlade PBC18 Installation Guide
69
AT-PB1000 Series Module
The AT-PB1000 Series Media Converters feature the following modules:
The AT-PB1000 Series Gigabit Media Converters have a 1000Base-SX
port and a 1000Base-LX port. The 1000Base-SX port has an SC connector
and a maximum operating distance of 550 meters (1,804 feet). The
1000Base-LX port also has an SC connector with a maximum operating
distance of 10 kilometers (6.2 miles) to 70 kilometers (43.4 miles),
depending on the model. Both ports operate at 1000 Mbps and feature
half-duplex or full-duplex operation.

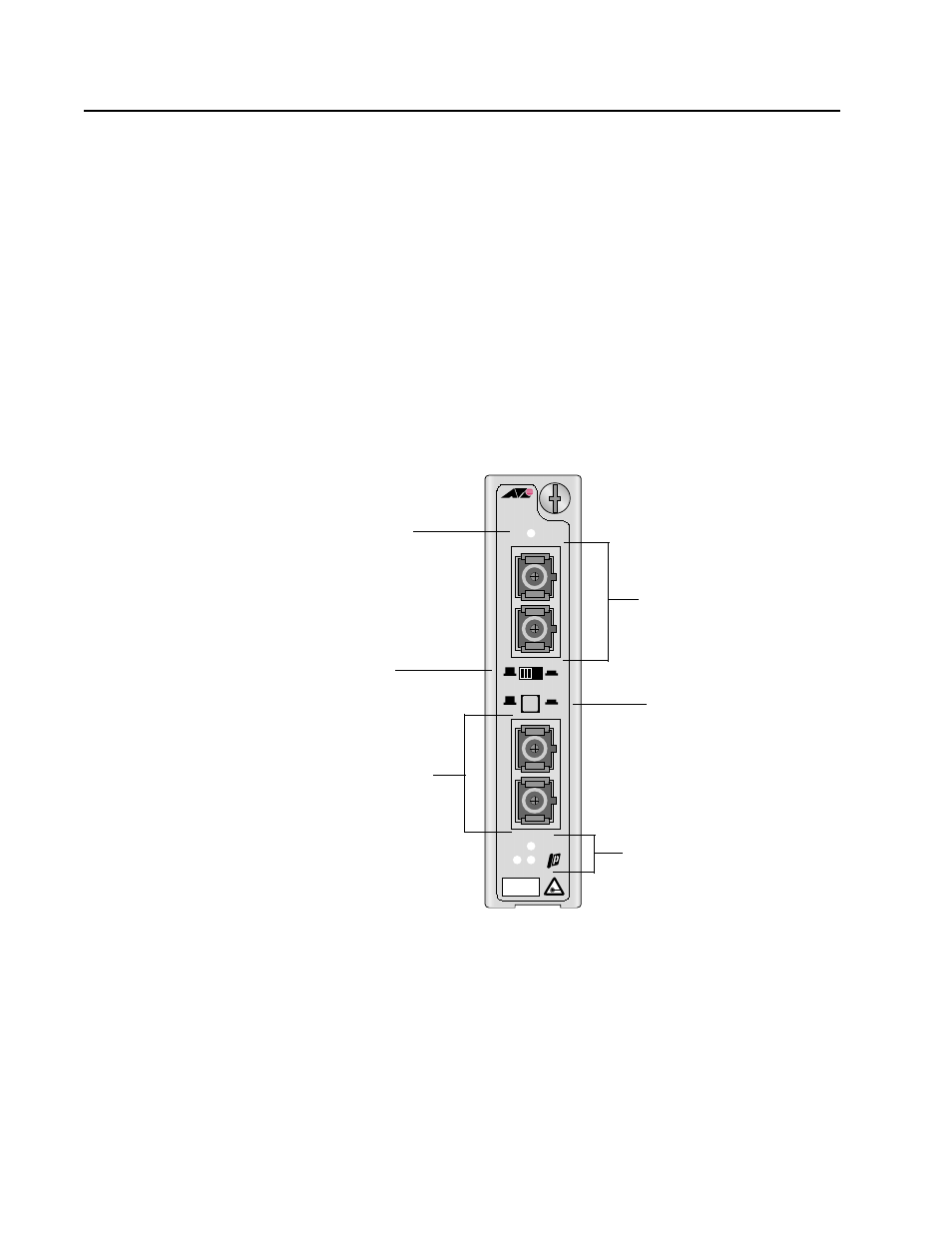

Figure 28 AT-PB1000 Series Media Converter
❑ AT-PB1001/1 ❑ AT-PB1001/3
❑ AT-PB1001/2 ❑ AT-PB1001/4
PB1001/1
1000Mbps
ML
L
X
T
X
R
X
S
M
LK
LT
LT SA LT BB
LK
ML PR
T
X
R
X
M
M S
X
CLASS 1
LASER PRODUCT
DO NOT STARE
INTO BEAM
Status LEDs
1000Base-LX Port
(SC connector)
MissingLink/
Link Test Switch
Link Test Back-to-back/
Status LEDs
AT-PB1001/1 Media Converter Module
1000Base-SX Port
(SC connector)
Link Test Standalone
Button
