Installing a Media Converter Module
54
J5 Jumper
(AT-PB15 only)
The AT-PB15 module features a J5 jumper. There are two possible
jumper settings: Enable and Disabled. If the chassis does not contain an
AT-PBM02 management module, set the J5 jumper to the Enable
(RIGHT) position. If the chassis contains an AT-PBM02 management
module, set the J5 jumper to the Disabled (LEFT) position. Disabled is the
factory default setting. Refer to Figure 23 for the location of the J5
jumper.

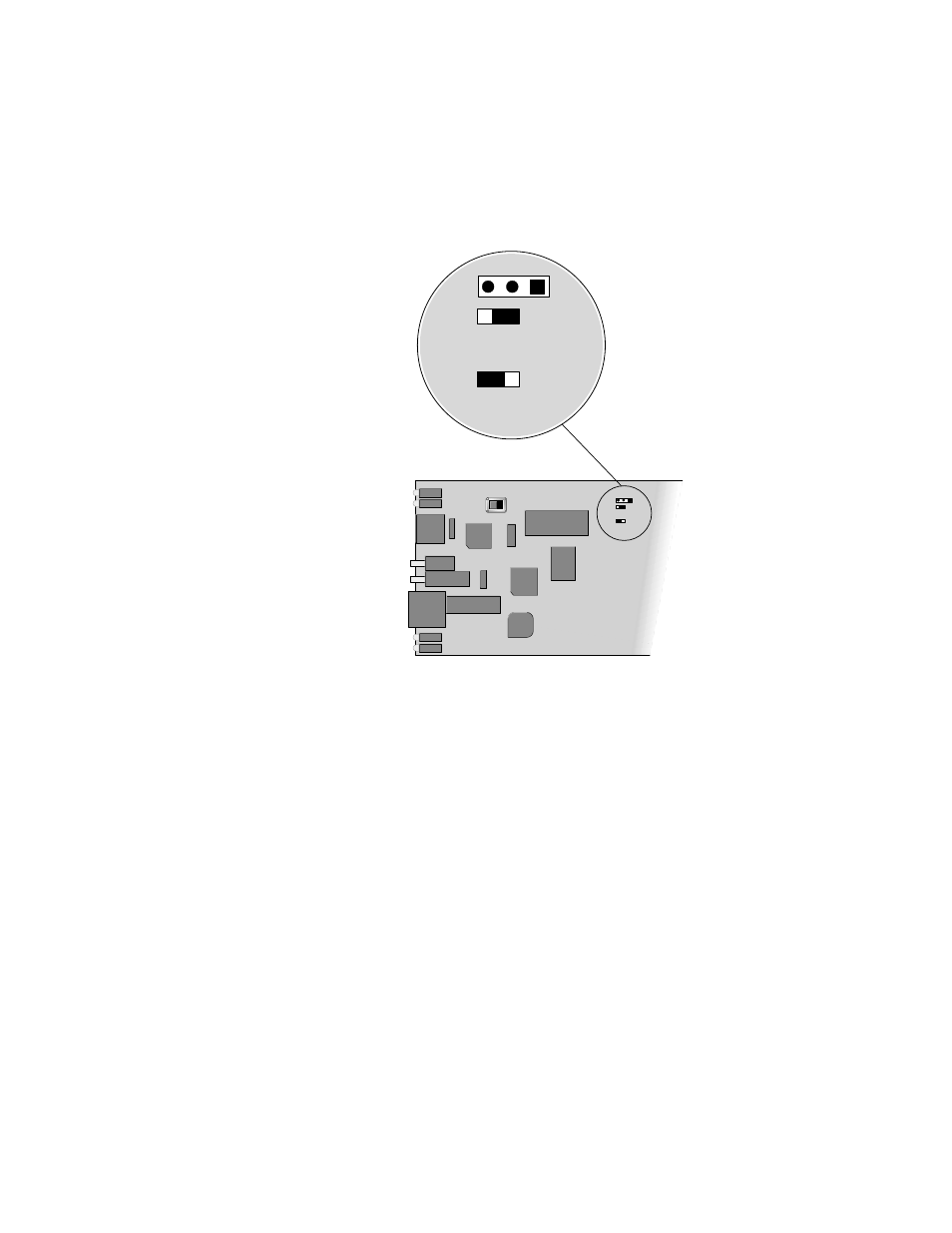

Figure 23 J5 Jumper Location for the AT-PB15 Module
BNC TERMINATION
SWITCH
ON OFF
SW2
J6
BACKPLANE CONTROL
ENABLE
DISABLE
J5
BACKPLANE CONTROL
ENABLE
DISABLE
