PowerBlade PBC18 Installation Guide
51
AT-PB10 Series Modules
The AT-PB10 Series Media Converters feature the following modules:
❑ AT-PB13
❑ AT-PB14
❑ AT-PB15
The AT-PB13 and AT-PB14 media converters have a 10Base-T twisted
pair port and a 10Base-F fiber optic port. The twisted pair port has an
RJ-45 connector and a maximum operating distance of 100 meters (328
feet). The fiber optic port has an ST or SC connector and a maximum
operating distance of 2 kilometers (1.2 miles). These units operate at 10
Mbps and feature full-duplex operation.
The AT-PB15 has a 10Base-T twisted pair port and a 10Base2 thinnet
port. The twisted pair port has an RJ-45 connector and a maximum
operating distance of 100 meters (328 feet). The thinnet port has a
BNC-type connector and a maximum operating distance of 185 meters
(606 feet). The AT-PB15 operates at 10 Mbps and features half-duplex
operation only.

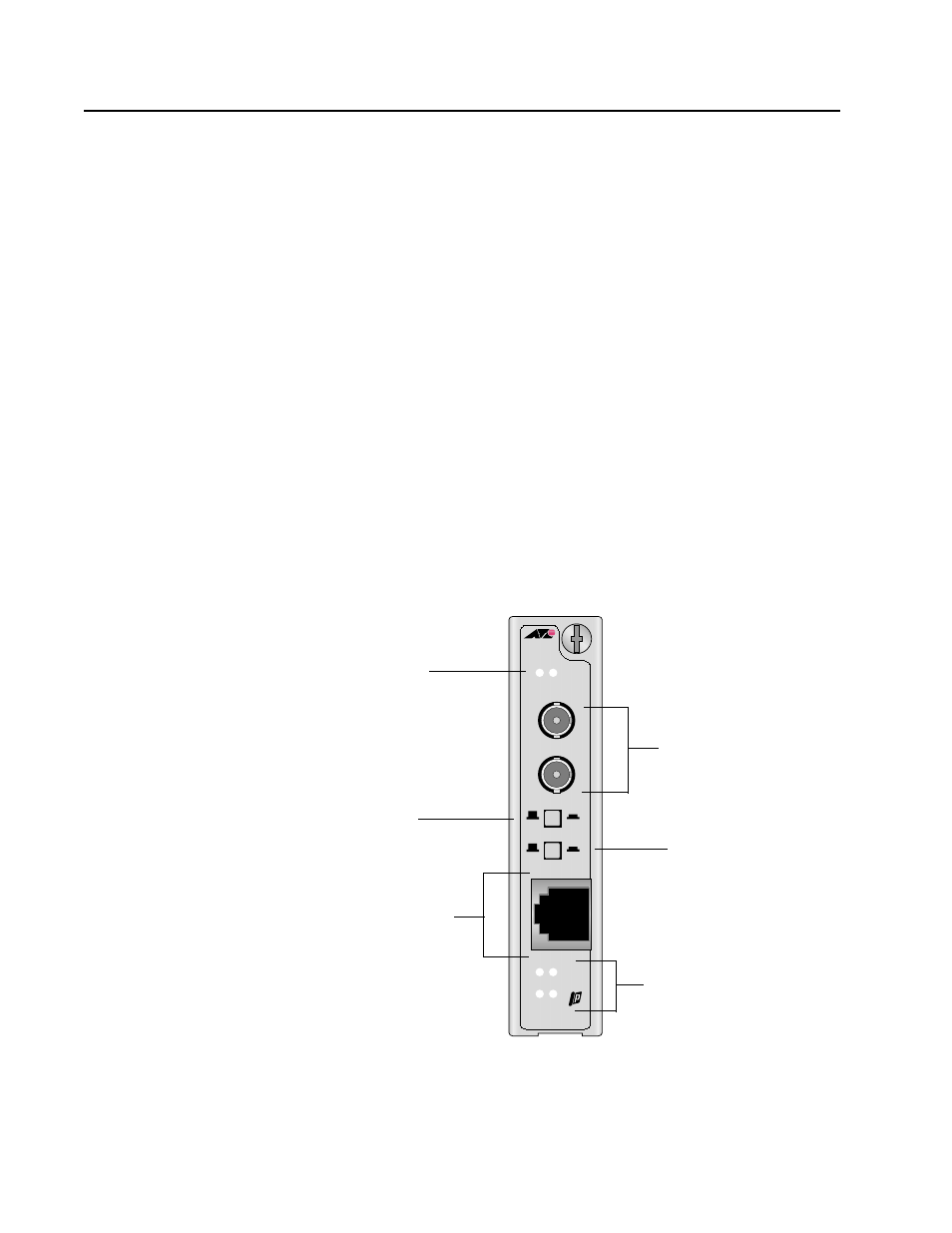

Figure 21 AT-PB10 Series Media Converter
PB13
10Mbps
ML
F
L
T
X
R
X
M
M
LK RX
LT
MDI MDI-X
LK RX
ML PR
T
Status LEDs
10Base-FL Port
(ST connector)
MissingLink/
Link Test Button
MDI/MDI-X Button
10Base-T Port
(RJ-45 connector)
Status LEDs
AT-PB13 Media Converter Module
