Chapter 3
Installing a Power Supply Module
This chapter describes of the features and functions of the PowerBlade
Power Supply modules. This chapter also contains the following
procedures:
❑ Installing a Main Power Supply on page 35
❑ Installing an Optional Power Supply on page 40
❑ Hot Swapping a Power Supply on page 42
Overview
There are two types of power modules available for the PowerBlade
PBC18: an AT-PBPWRAC and an AT-PBPWRDC. The AT-PBPWRAC is an AC
power supply module and the AT-PBPWRDC is a DC power supply
module.

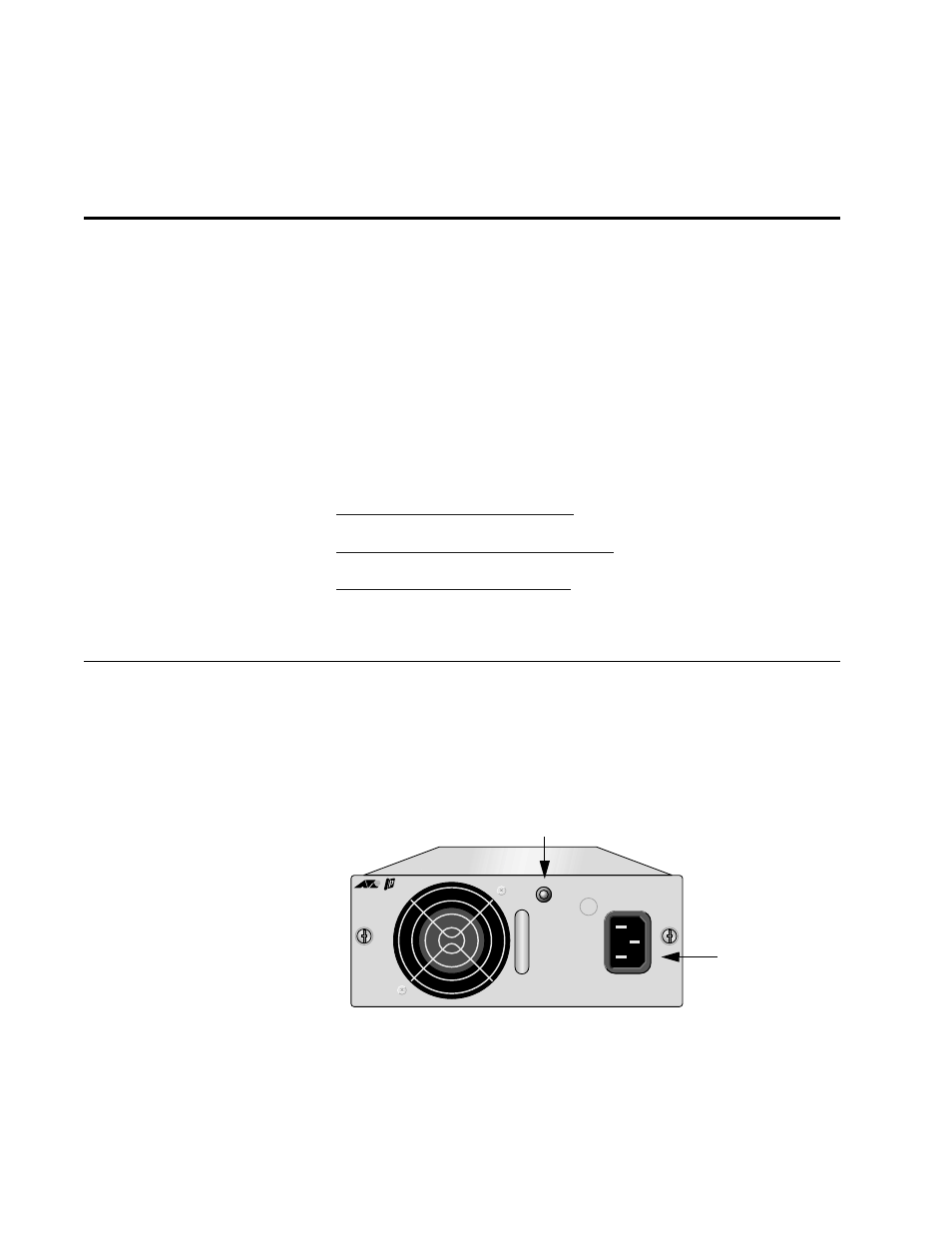

Figure 10 illustrates an AC power supply module.
Figure 10 AT-PBPWRAC Power Supply Module
PBPWRAC
AC INPUT
100-240AC
50-60Hz
3A MAX.
150W
Power LED
AC Connector
