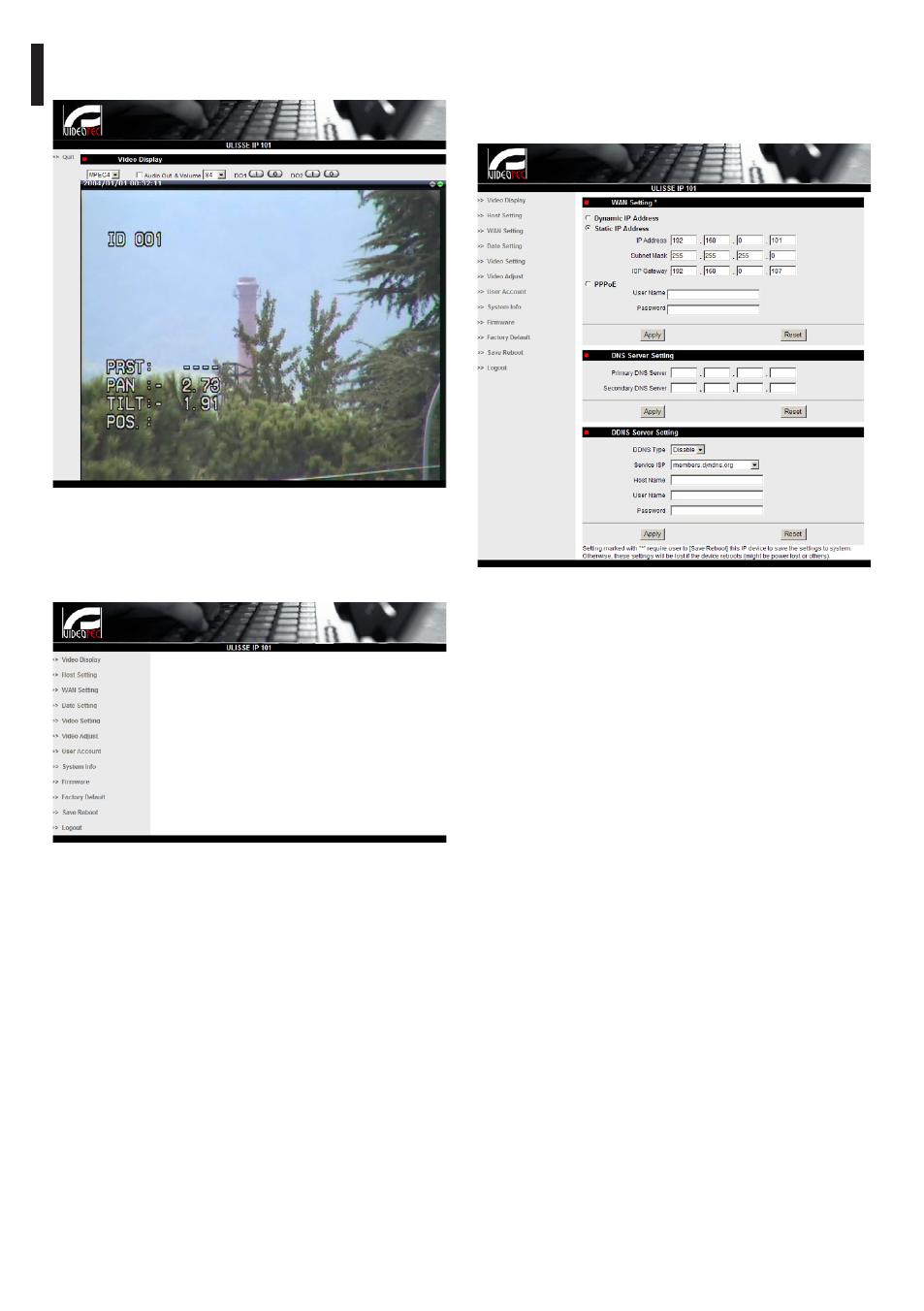

9.7.2.1 WAN setting
Next, set the static IP address, which is used to
gain access to the unit that is to be configured. For
example, set a static IP and address 192.168.0.101.
Fig. 88
Next, click on Apply and then click on Save &
Reboot. Wait about 30 seconds, until the settings
have been saved. Re-connect to the modified address
(e.g. 192.168.0.101), inserting the Account Name and
Password (use the default settings if they have not
been changed).
Then edit the other parameters, for example:
• Date Setting: To set date and time.
• Video Setting: To change resolution (720x576,
640x480, 352x288, 176x144) bit rate (setting
between 28kbit and 3 Mbit).
Continue by pressing the Install button.
The Live Video window will then appear.
Fig. 86
To make the parameter settings, click on the Quit
button next to the video display. The general
parameter setting menu will then appear.
Fig. 87
