9.6.7 Display menu
01. Actual Position: If not on Off, it is used to select
how the Pan, Tilt, Zoom, Focus and Iris positions
are displayed on the screen.
02. Preset Name: If not on Off, it is used to select
how the text associated with the last-reached
Preset position is displayed on the screen. It is
possibile to select timed (1 S, 3 S and 5 S) or a
constant (Const) display.
03. Pan & Tilt ID: If not on Off, it shows the ID of the
pan & tilt.
04. Alarms: When not switched to Off, this selects
the view mode for alarm related texts. It is
possible to select a timed view mode (1 S, 3 S
and 5 S) or constant view mode (Const).
05. Received Commands: If enabled, it shows the
received serial commands.
06. Horizontal Delta: Modifies the horizontal
position of the menu texts.
07. Vertical Delta: Modifies the vertical position of
the menu texts.
08. Video Signal: Type of video signal.

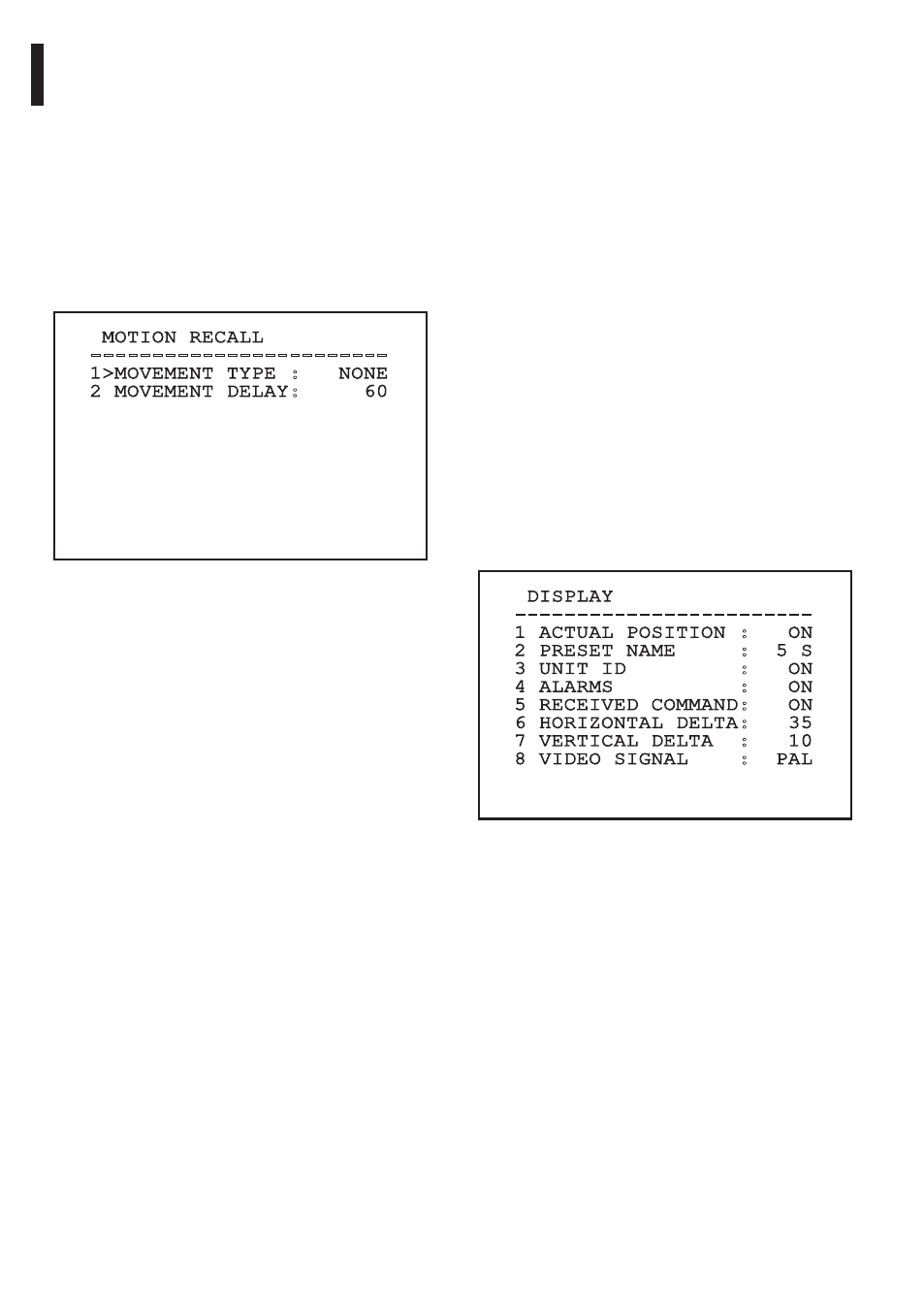

DISPLAY
------------------------
1 ACTUAL POSITION : ON
2 PRESET NAME : 5 S
3 UNIT ID : ON
4 ALARMS : ON
5 RECEIVED COMMAND: ON
6 HORIZONTAL DELTA: 35
7 VERTICAL DELTA : 10
8 VIDEO SIGNAL : PAL
Fig. 75
This is a dynamic self-configuration menu based on
the Pan & Tilt model.
9.6.6.8 Motion Recall Menu
It is possibile to set the P&T so that, after a given
inactivity interval, it automatically carries out the
movement function set by the operator.
From the menu it is possible to set the following
parameters:
01. Movement Type: Choice of type of movement
to be loaded (None, Home, Autopan, Patrol).
02. Movement Delay: The time (in seconds) that
needs to elapse from the state of inactivity of
the Joystick before loading the set movement.
MOTION RECALL
------------------------
1>MOVEMENT TYPE : NONE
2 MOVEMENT DELAY: 60
Fig. 74
