9.6.3 ZFI camera settings menu
01. Zoom: This sets the maximum zoom level that
the motorised lens can achieve.
02. Common Wire: If enabled, it manages the
motorised common wire lenses; if disabled, it
manages those with inversed polarity.
04. Area Titling: Allows access to the area titling
submenu.
05. Zone Masking: This provides access to the zone
masking management submenu.
06. Housing Serial Port: Allows access to the
submenu for managing the housing serial port.
07. Polarity: Allows access to the submenu for
managing the polarity of the Zoom, Focus and
Iris motors.
ZFI CAMERA SETTINGS
------------------------
1>ZOOM : 30x
2 COMMON WIRE : N
4 ZONE TITLING >
5 ZONE MASKING >
6 HOUSING SERIAL PORT >
7 POLARITY >

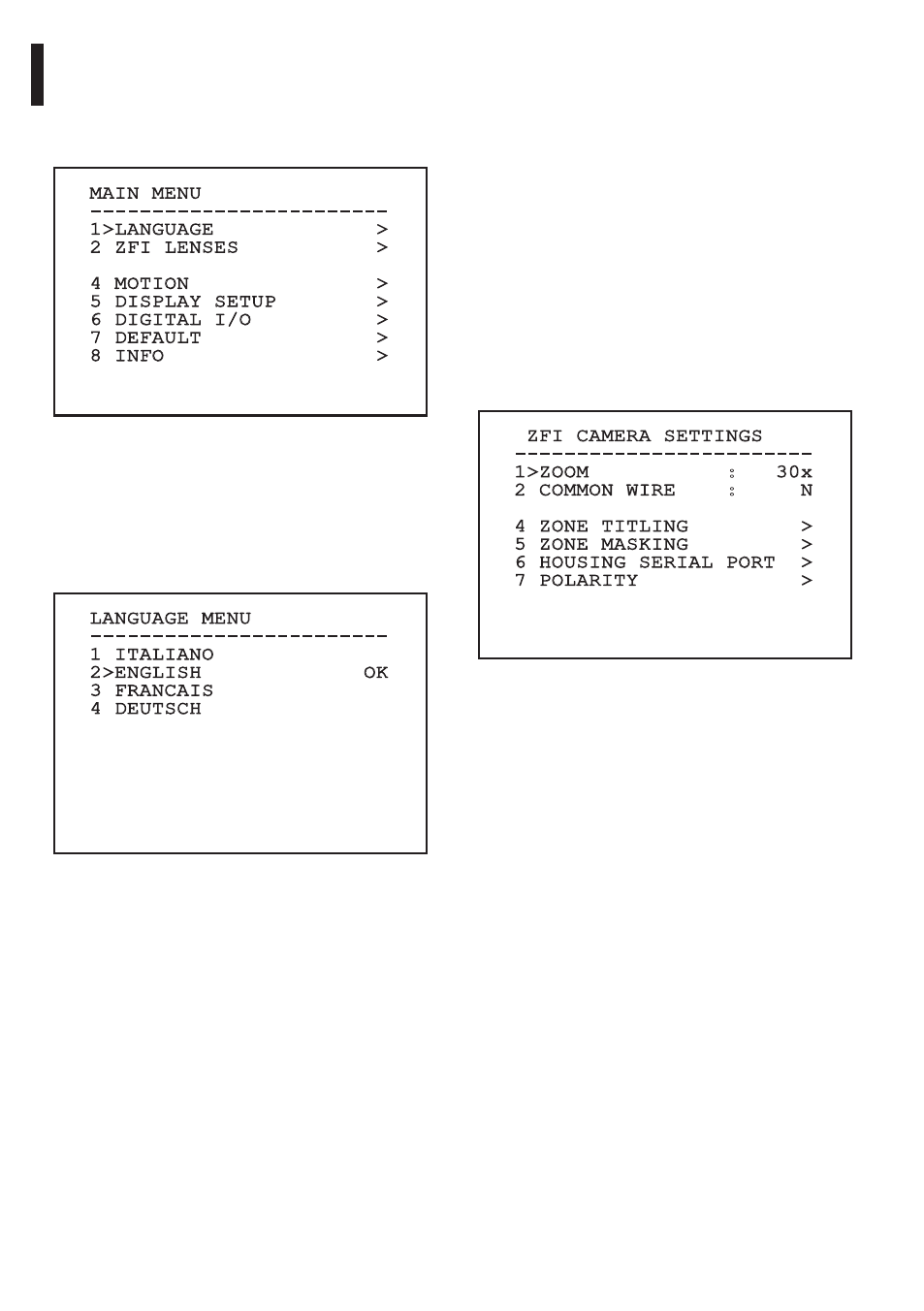

Fig. 59
9.6.3.1 Zone titling menu
This function allows setting up to 8 areas (variable
dimension) with titling option.
From the Zone Titling menu it is possible to set the
following parameters:
01. Number: Selects the area to be edited.
02. Enabling: Enables the message linked to the
related zone to be displayed on the screen.
03. Start: Sets the initial position of the area.
04. Stop: sets the final position of the area.
9.6 Configuring the system
9.6.1 Main menu
From the main menu it is possible to enter menus for
configuring the device.
MAIN MENU
------------------------
1>LANGUAGE >
2 ZFI LENSES >
4 MOTION >
5 DISPLAY SETUP >
6 DIGITAL I/O >
7 DEFAULT >
8 INFO >
Fig. 57
This is a dynamic self-configuration menu based on
the Pan & Tilt model.
9.6.2 Language
This menu is used to select and set the desired
language.
LANGUAGE MENU
------------------------
1 ITALIANO
2>ENGLISH OK
3 FRANCAIS
4 DEUTSCH
Fig. 58
