Videotec ULISSE PLUS - Manual (Page 31)

EN - English - I
nstruc
tions manual
29
9.6.3.2 Zone Masking Menu
This function allows setting up to eight masks
(variable dimension) with titling option.
01. Number: Selects the mask to modify.
02. Enabling: Enables masking of the relative zone.
03. Start: Sets the starting position of the mask.
04. Stop: Sets the stop position of the mask.
05. Text: Changes the text displayed when the mask
is enabled.

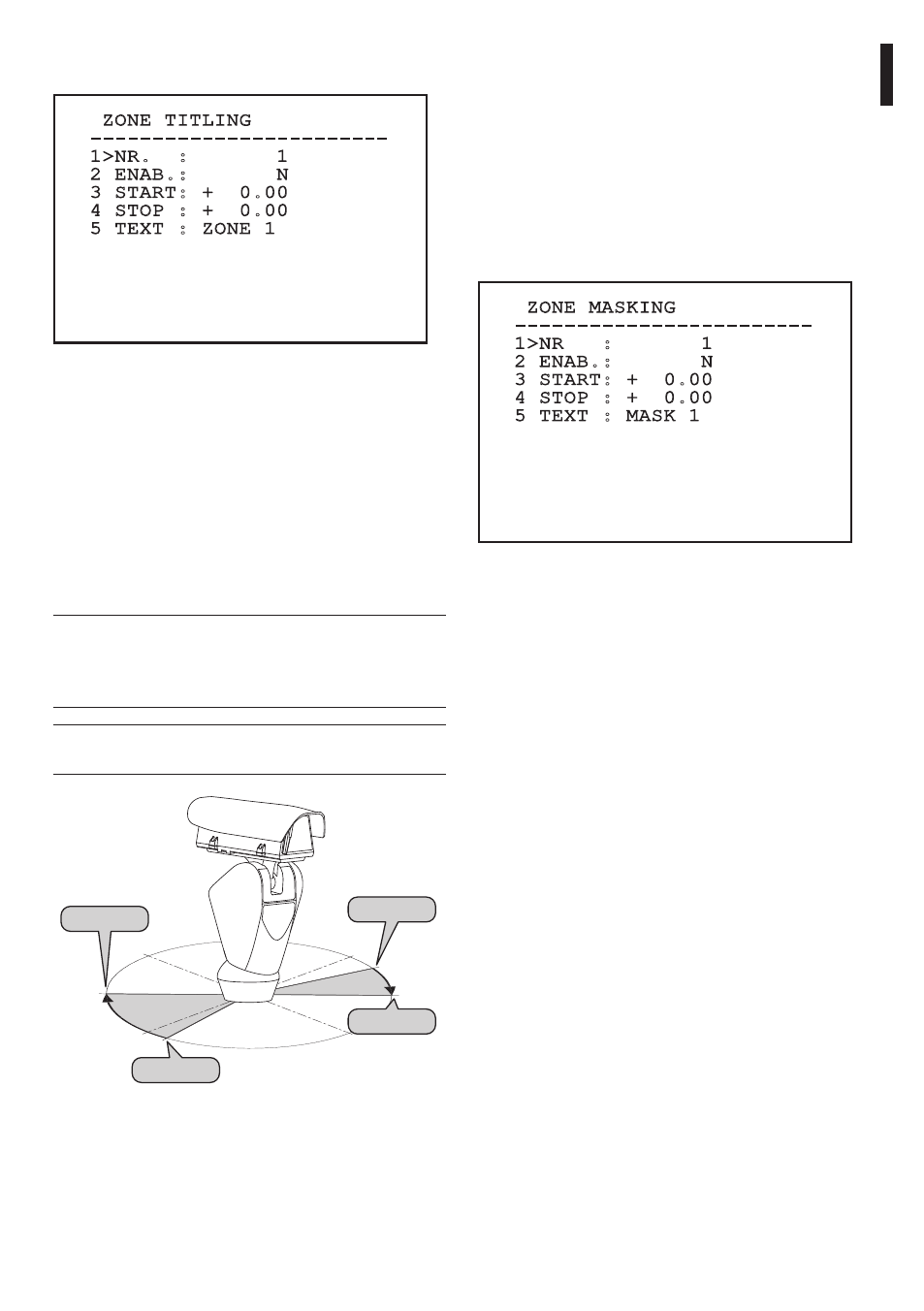

ZONE MASKING
------------------------
1>NR : 1
2 ENAB.: N
3 START: + 0.00
4 STOP : + 0.00
5 TEXT : MASK 1
Fig. 62
05. Text: Modifies the text which is displayed when
moving within the zone.
ZONE TITLING
------------------------
1>NR. : 1
2 ENAB.: N
3 START: + 0.00
4 STOP : + 0.00
5 TEXT : ZONE 1
Fig. 60
Example: To enable titling of zone 1 when the device
is between +15° and +45°, it is necessary to:
• Enable area titling by setting Y as the value of
Enabling.
• Set 1 as the value of parameter Nr.
• Set +015.00 as the value of parameter Start.
• Set +045.00 as the value of parameter Stop.
• If necessary, edit the displayed text by selecting
Text.
j Setting the Start and Stop values of the
menu to zero will disable text display. If
there are overlapping areas, the area with
the lowest number will prevail.
j To define zones proceed in a clockwise
direction, as shown in the figure.
0°
Start1=15°
Stop1=45°
Start2=170°
Stop2=225°
270°
90° 180°
Fig. 61
