From these menus it is possible to set the following
values:
01. Type: Set the type of contact: normally closed
(N.C.) or normally open (N.O.).
02. Action: The type of action (Off, Msg, Ptz Stop,
Wiper, Washer, Scan, Patrol, Autopan, Relay,
Ir Filt) carried out by P&T when the alarm
triggers. If Off is selected, the alarm is disabled.
03. Number: The preset to be reached when the
alarm’s type of action is Scan.
04. Text: The message that is displayed when the
alarm is active.
ALARM 1
------------------------
1>TYPE : N.C.
2 ACT. : SCAN
3 NR. : 1
4 TEXT : ALARM 1
Fig. 78
This is a dynamic self-configuration menu based on
the choice made and shows the parameters on which
it is possible to operate.
From the Alarms menu it is possible to access the
Alarms State menu where the state of alarms inputs
is displayed (Closed, contact closed, Open, contact
open).
ALARMS STATE
------------------------
ALARM 1 CLOSED
ALARM 2 OPEN
ALARM 3 CLOSED
ALARM 4 CLOSED
Fig. 79
9.6.8 Digital I/O Menu
01. Alarms: Allows access to the Alarms menu.
02. Washer: Allows access to the Washer menu.

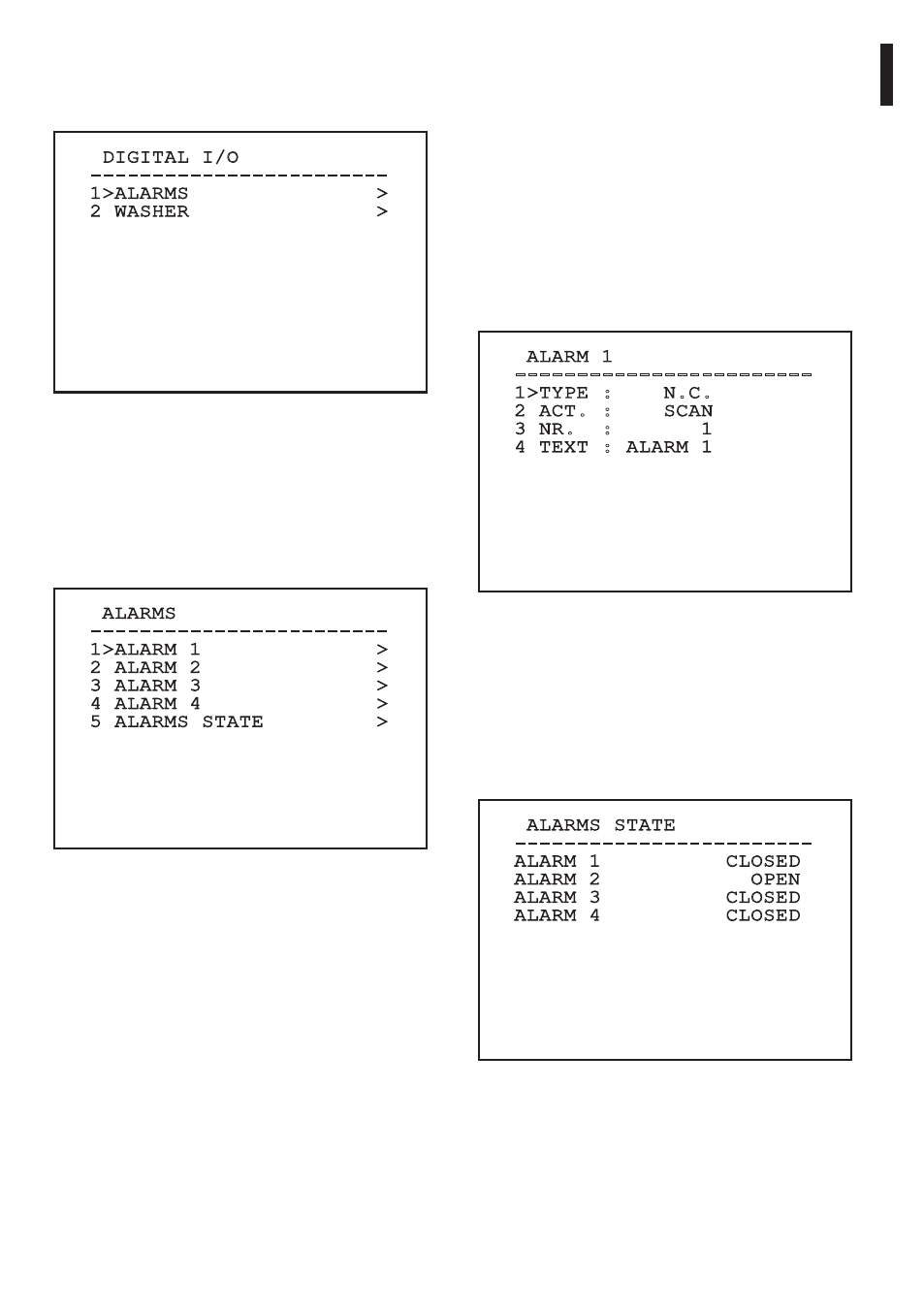

DIGITAL I/O
------------------------
1>ALARMS >
2 WASHER >
Fig. 76
9.6.8.1 Alarms menu
01-04. Alarms 1-4: Allow access to the menus from
which it is possible to set the parameters of
Alarms 1 to 4.
05. Alarms State: Allows access to the Alarms
State menu.
ALARMS
------------------------
1>ALARM 1 >
2 ALARM 2 >
3 ALARM 3 >
4 ALARM 4 >
5 ALARMS STATE >
Fig. 77
This is a dynamic self-configuration menu based on
the Pan & Tilt model.
From the Alarms menu it is possible to access one of
the menus (Alarms 1-4) to edit the alarms parameters.
