EZ-Guide Plus Lightbar Guidance System Getting Started Guide Using GPS 51
DGPS box receiver

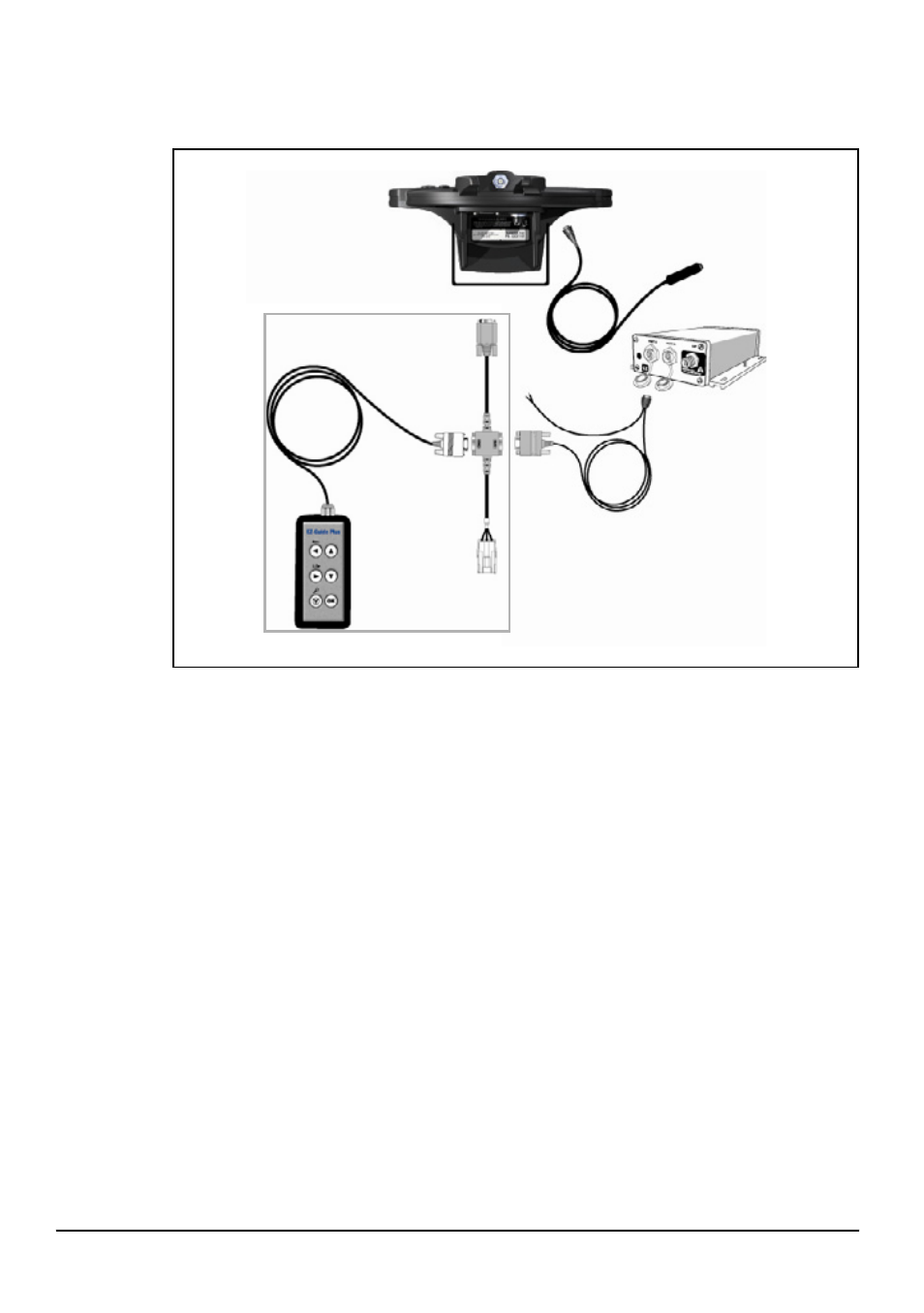

The following figure shows how to connect the DGPS box receiver to the lightbar.
If you are using a DGPS box receiver, you need to disable the 1HZ VTG setting:
1. From the Home screen, press 3 until Configuration appears and then press
2.
2. Press 3 until the GPS Config screen appears.
3. Press 2 until the 1Hz NMEA screen appears.
4. Change VTG to vtg as follows:
a. Press 3 to highlight VTG.
b. Press 2 to change VTG to vtg.
c. Press 4 to save the setting.
Selecting the correct OmniSTAR satellite manually
1. From the Home screen, press 3 until the Configuration screen appears.
2. Press 2 and then press 3 until the DGPS Config screen appears.
3. Press 2 until the DGPS Source screen appears.
4. Press 3 and then 2 to change the setting to OmniSTAR.
5. Press 2 until the EZ Sat: Omni* screen appears.
6. Press 3 and then 2 to select the correct region.
P/N 30945-00
To switch input
and pulse output
P/N 52026-00
P/N 52033
Optional remote control
Lightbar
DGPS box receiver
