EZ-Guide Plus Lightbar Guidance System Getting Started Guide Getting Started 13
Getting Started
This section describes the parts of the EZ-Guide Plus lightbar guidance system and
how to configure it. For information on using guidance patterns, see
Getting Started,
page 13 .

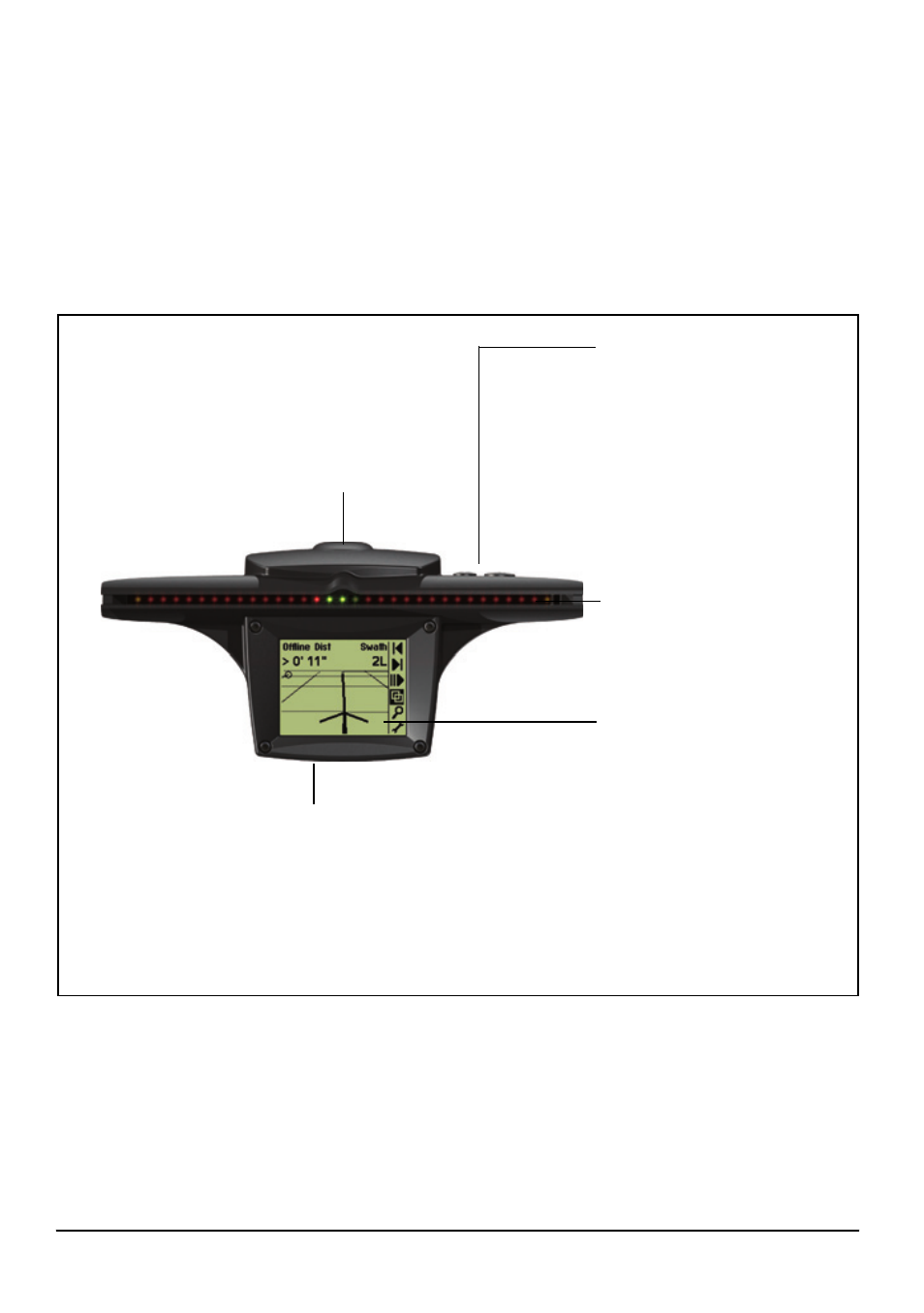

Parts of the EZ-Guide Plus lightbar
Integrated GPS receiver (optional)
•
High-performance
• Integrated WAAS/EGNOS/MSAS receiver
• EVEREST™ multipath rejection
technology
LCD display
•
Monochrome
• Anti-glare screen
• Multi-level backlight
Three Buttons
•
o Action selects icon,
accepts changes
• u Selects icon, increase
configuration value
• D Selects icon, decrease
configuration value
Data port
•
GPS output
• External GPS input
• External correction input
• GPS diagnostics and configuration
• Pulse output and switch input (requires external interface cable)
Guidance LEDs
Provide offline guidance to the
closest swath
