EZ-Guide Plus Lightbar Guidance System Getting Started Guide Getting Guidance 27

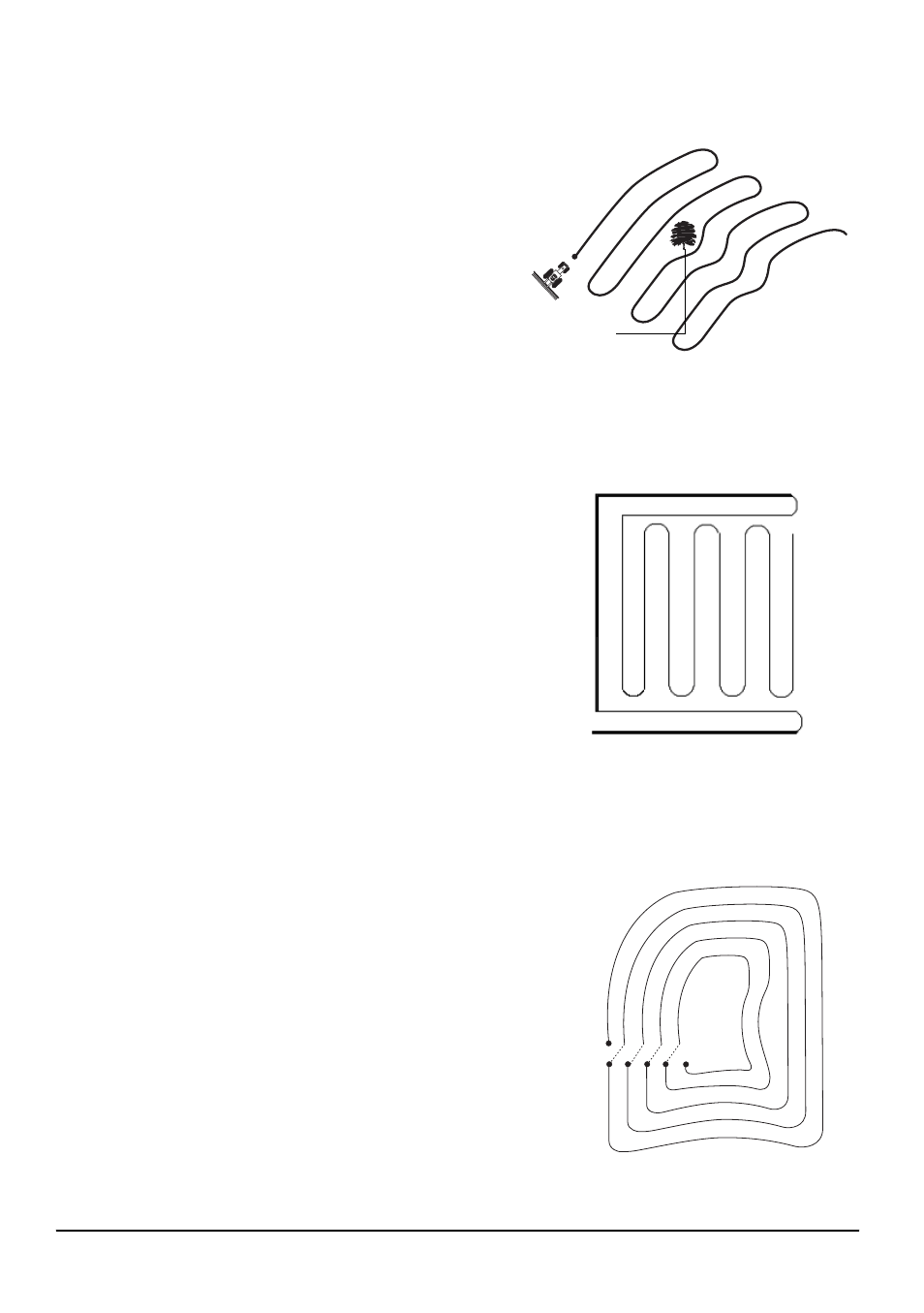

Simple curves (using Adaptive curve pattern)
To drive simple Adaptive curves with the default of Auto-detect Turn set to On:
1. At the start of the first swath, map
Point A.
2. Drive the initial curve.
3. Turn left or right for the next swath. The
next swath is automatically selected.
4. Steer the vehicle so that you center
the green lights in the lightbar as you
drive forward along the swath.
C-clamp (using Adaptive curve pattern)
To use the Adaptive curve pattern to get C-clamp guidance with the default of
Auto-detect Turn set to On:
1. At the start of the headland, map
Point A.
2. Drive around the headland in a C-clamp
pattern.
3. Turn left or right for the next swath. The
next swath is automatically selected.
4. Steer the vehicle so that the green lights
in the lightbar are centered as you drive
forward along the swath.
Note — The bold lines in the figure show
where you must drive without guidance.
Spiral (using Adaptive curve pattern)
To use the Adaptive curve pattern to get spiral guidance into the center of the field:
1. From the Guidance menu, set Auto-
detect Turn to Off.
2. Start a new field using the Adaptive
Curve pattern.
3. At the start of the headland, map
Point A.
4. Drive around the headland.
5. When you are nearly back at Point A,
map Point B.
A
Obstacle
Step 1
A
Step 1
A
B B B B B
Step 3
Step 5
