18 Getting Started
EZ-Guide Plus Lightbar Guidance System Getting Started Guide
Setting the units and language
By default, the units are set to US and the language is set to English. To change:
•
the units to metric, select Lightbar / Units
•
the language to Portuguese, Spanish, French, German, or Italian, select
Lightbar / Language

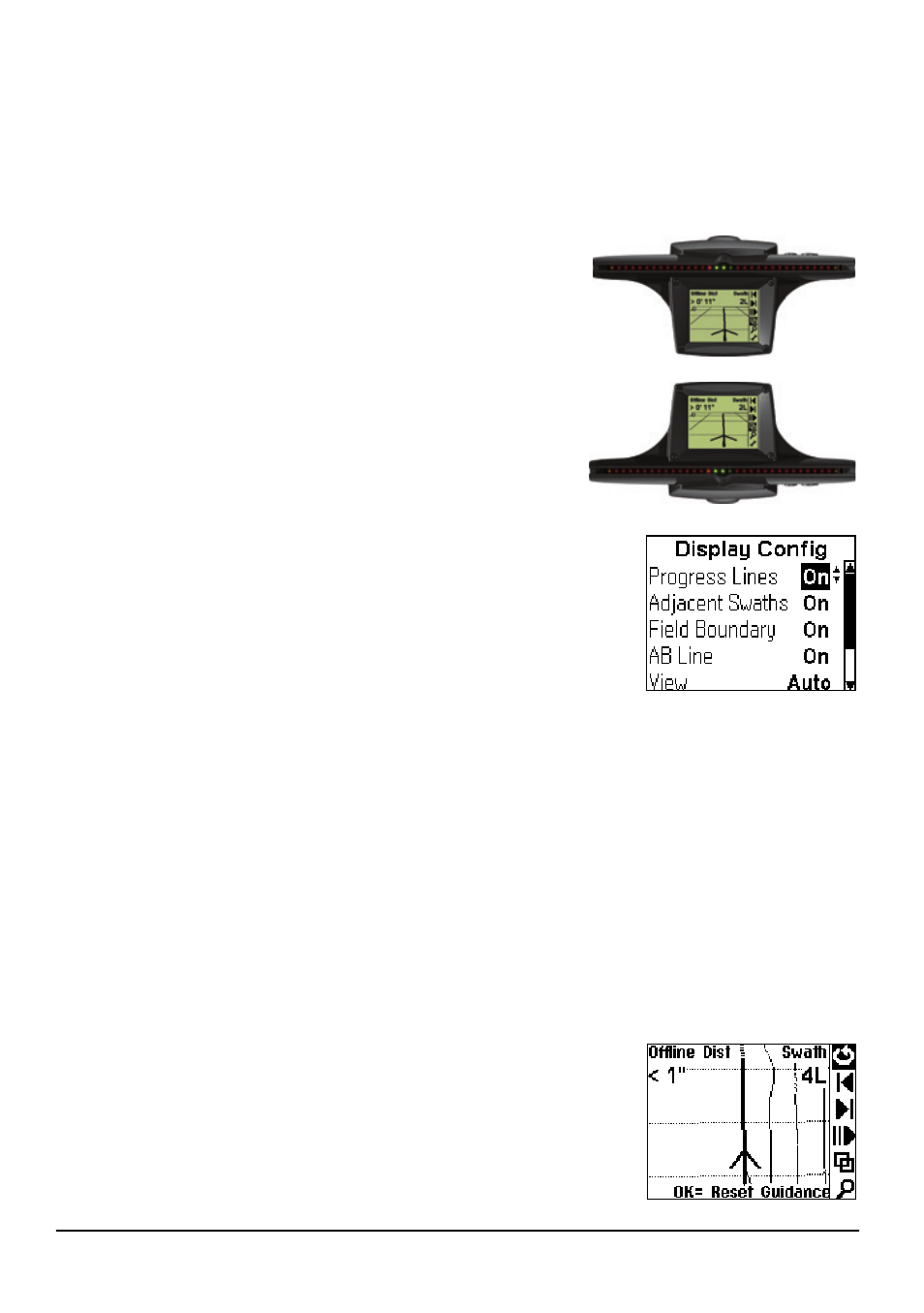

Changing the display orientation
Generally, mount the lightbar with the LEDs above
the screen (upright). If you mount the lightbar with
the LEDs below the screen (inverted), select
Lightbar / Lightbar Mount and change the setting.
Configuring the display
Select Lightbar / Display Config to enable or disable any
of the following items displayed on the plan and
perspective maps. Set:
•
Progress Lines to On to give a sense of perspective
and speed.
•
Adjacent Swaths to On to display one swath either
side of the current swath.
•
Field Boundary to On if the field is a Headland.
•
AB Line to On to display the AB Line.
•
Path Display to the relevant option to display the path driven. See
You can also use this screen to change the View option:
•
Auto: The view automatically changes between plan and perspective views in
headlands
•
Fixed: The view remains fixed
Path Display on the Map and 3D screen
By default, the path you have driven is always displayed
on screen as a dotted line.
Upright
Inverted
