36 Getting Guidance EZ-Guide Plus Lightbar Guidance System Getting Started Guide

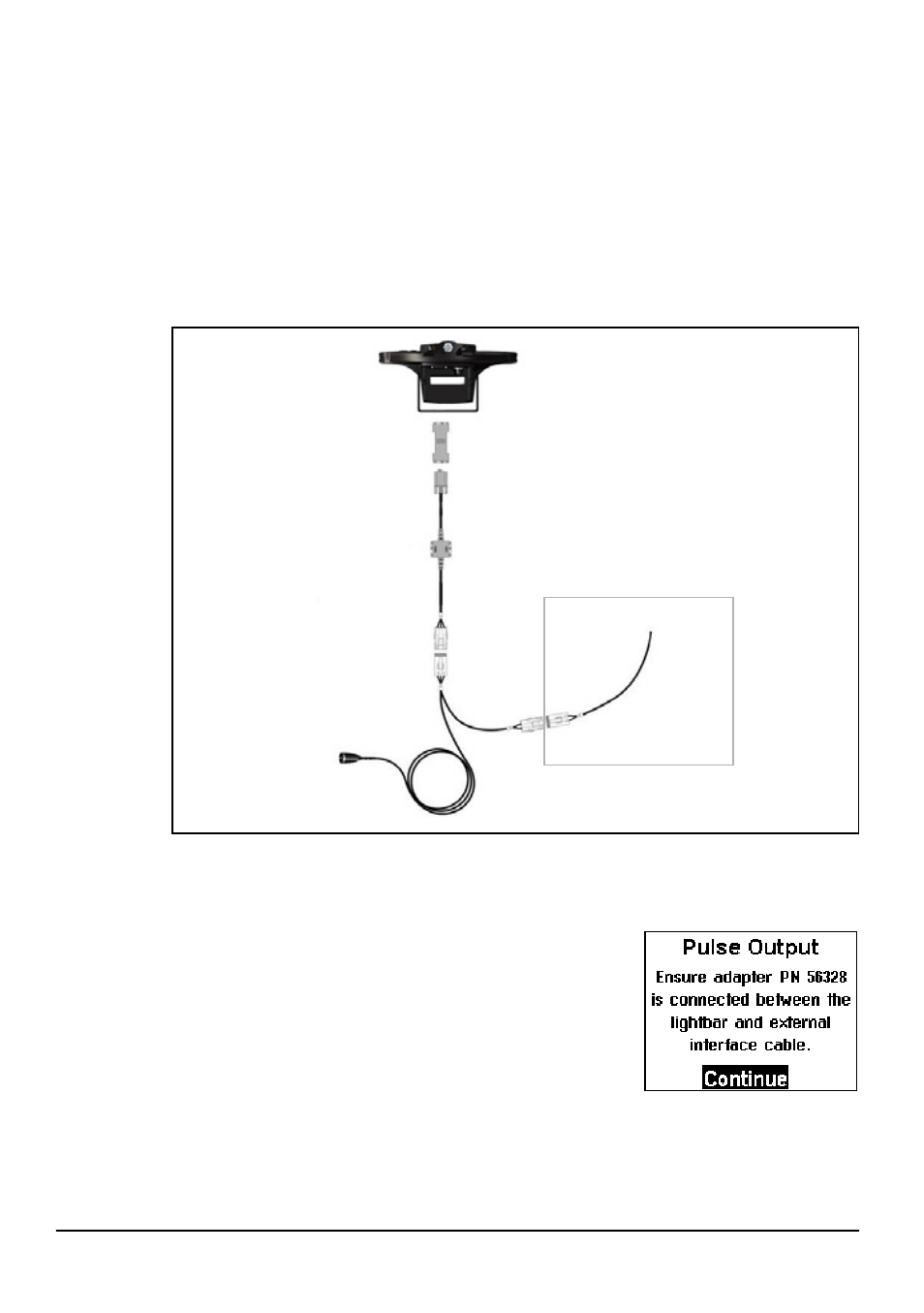

Connecting a device
To connect the lightbar to a spray controller:
1. Attach the pulse amplifier adaptor to the serial port of the lightbar and then
attach the optional external interface cable (P/N 52033) to the other end of the
adaptor.
2. Attach the radar sensor cable to the external interface cable.
3. If required, connect a spray switch into the WeatherPack connector on the radar
sensor cable using a fly-lead.
Setting up the lightbar
To enable pulse output:
1. Select Lightbar / Pulse Output. The pulse output
warning screen appears.
2. Ensure that the adaptor is connected, and then press
o .
To optional spray switch
Radar sensor cable
To spray controller
P/N 52033
Optional external interface cable
P/N 56328
Pulse amplifier adaptor
