24 Getting Guidance EZ-Guide Plus Lightbar Guidance System Getting Started Guide

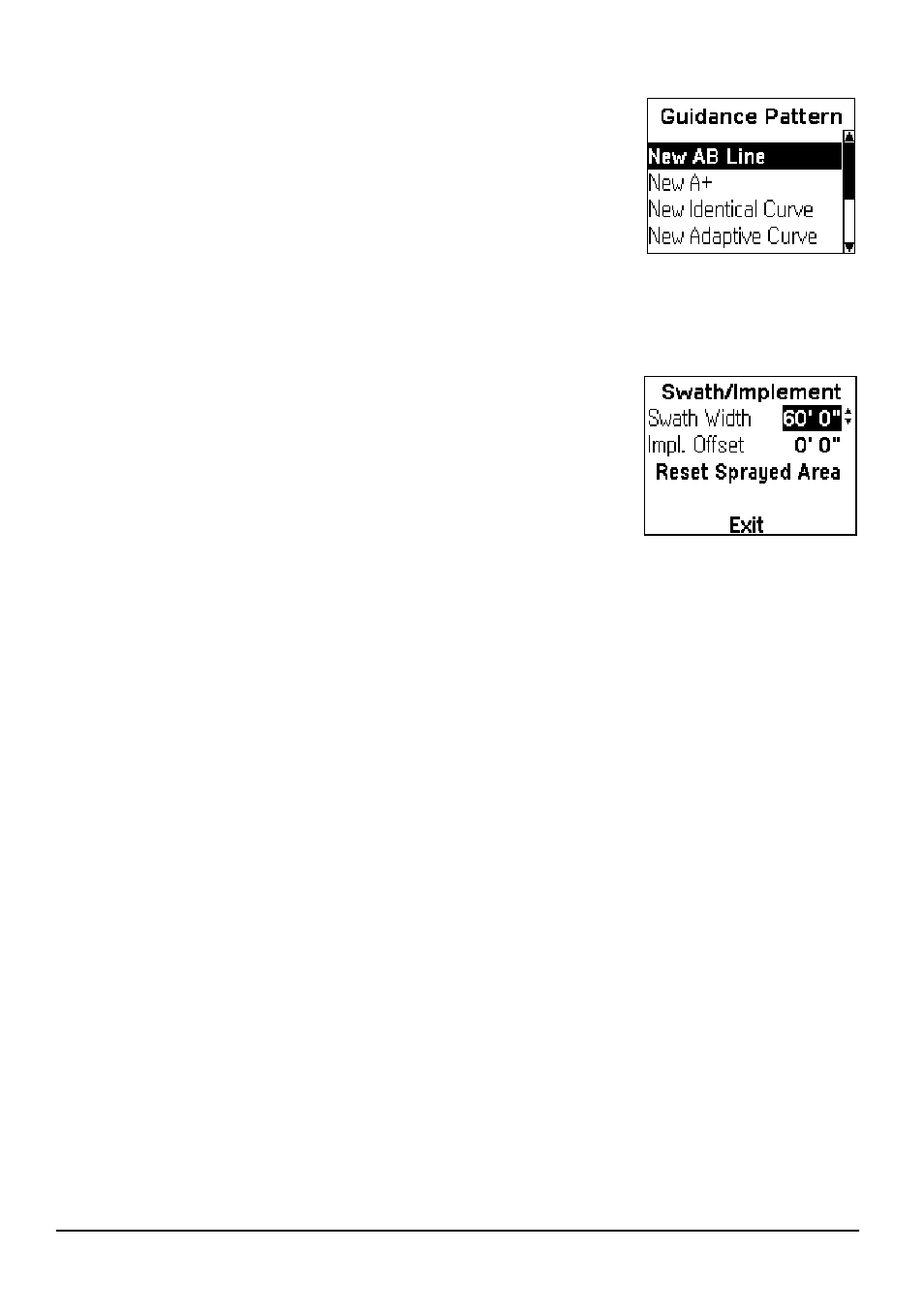

Resetting guidance
1. Select
9
. The Guidance Pattern screen appears.
2. Press u or D to choose the required pattern and
then press o .
A message appears asking you to confirm your
choice. This prevents accidental resetting of the
guidance pattern.
3. To confirm, press o .
Configuring the swath width
Once you select a pattern, the Swath/Implement screen
appears.
To change the swath width value:
1. Select the Swath Width field.
2. Press u or D until the correct value is displayed.
3. Press o .
B Tip — To avoid skips between swaths, set the swath width to 0.3 m (1 ft) less than
the total implement width.
If the vehicle has an implement that is offset to one side of the vehicle, configure an
implement offset:
1. Select the Impl. Offset field.
2. Press u or D until the correct value is displayed.
3. Press o .
B Tip — If an implement offset is configured, the guidance arrow will represent the
center of the implement, instead of the center of the vehicle.
Note — In some adaptive curves, tight U-turns with an implement offset may not be
detected if the implement does not follow the path of a U-turn. If this occurs, set
Guidance / Auto-detect Turn to Off, manually set B, and then turn onto the next
curve.
Using guidance patterns
This section describes how to define and use each of the available guidance patterns.
The AB Line is a line that runs between Point A and Point B, although you may not
always set a Point B. In most cases, the AB Line is the reference line for subsequent
swaths.
The start and end of the initial swath that defines the swath pattern appear on the
lightbar screen as a circle (Point A) and a square (Point B).
