26 Getting Guidance EZ-Guide Plus Lightbar Guidance System Getting Started Guide
2. Follow the AB Line for guidance down the first swath.
3. Turn left or right for the next swath. The next swath is automatically selected.
4. Steer the vehicle so that you center the green lights in the lightbar as you drive
forward along the swath.

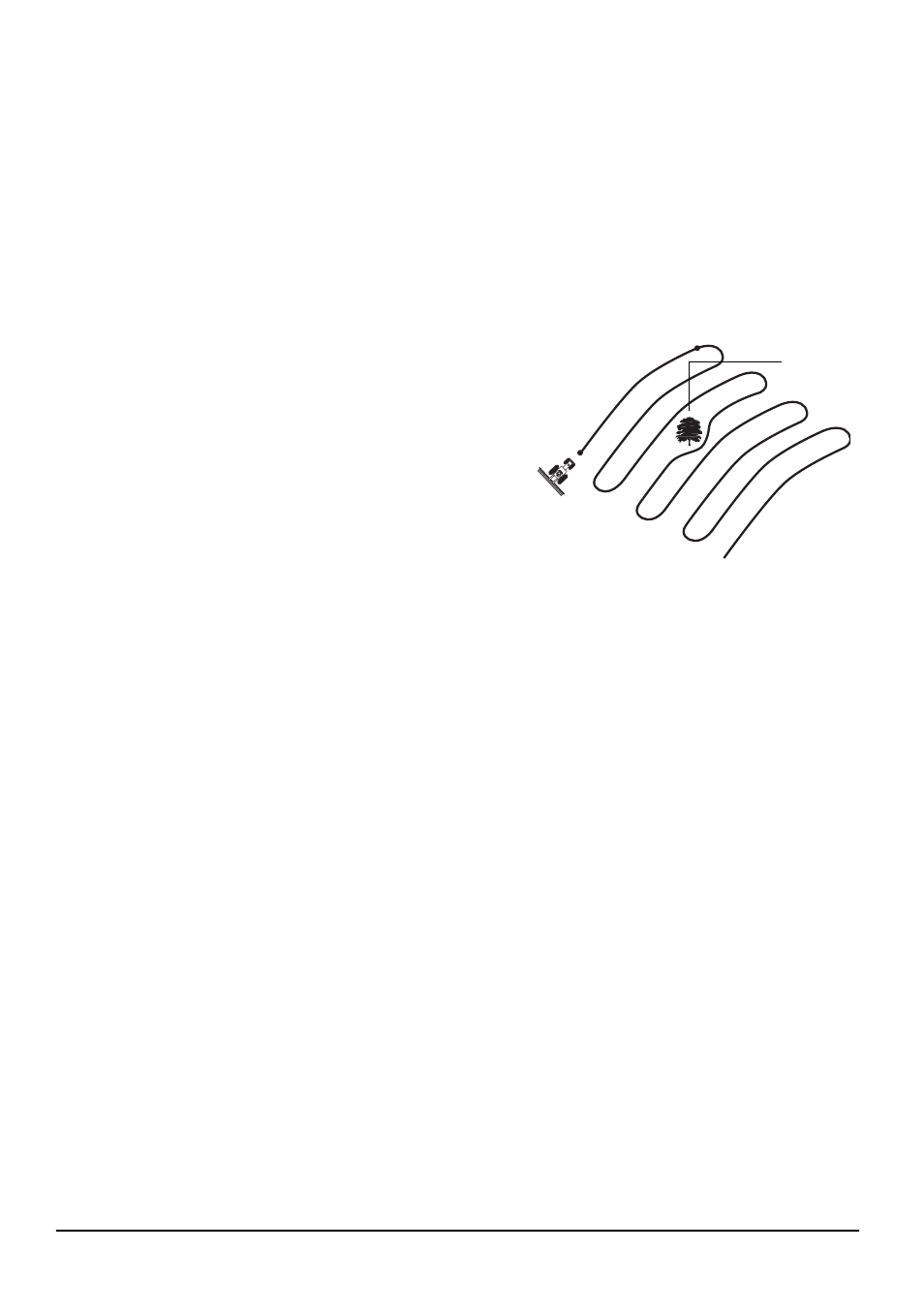

Identical curve pattern
Use the Identical curve pattern when you want to work the field with gentle curves.
This pattern provides guidance based on the initial curve. It ignores any deviation
around an obstacle.
1. At the start of the first swath, map Point
A.
2. Drive the initial curve. At the other end
of the first swath, map Point B.
3. Turn left or right for the next swath. The
next swath is automatically selected.
4. Steer the vehicle so that you center the
green lights in the lightbar as you drive
forward along the swath.
Note — Guidance extends beyond the end of curved swaths. This makes it
possible to get LED guidance back onto the swath if the vehicle drives past the
end of a swath. The extended swath lines do not appear on screen.
Adaptive curve pattern
Use the Adaptive curve pattern to follow gentle contours in the field, or when you need
to avoid obstacles. This pattern provides guidance based on the last curve driven.
Note — By default, the end of the swath is automatically detected when you do a
U-turn. If you prefer to manually mark the end of each swath, from the main menu,
select Guidance / Auto-detect Turn and change the setting to Off. You must then
reset Point B at the end of every pass, to mark the end of the swath before you start
the turn.
A
B
Obstacle
Step 1
Step 2
