EZ-Guide Plus Lightbar Guidance System Getting Started Guide Getting Guidance 29
4. On your final headland, press D before you return to the circle. This stops the
lightbar from generating a new headland swath and allows you to map A and B
points.
You continue to receive guidance to the final headland until you drive off the pass
by half a swath.
5. To map the start of the first straight swath, map Point A at any time.
6. Drive to the other end of the field and then map Point B.
Note — Straight swaths automatically fill the headland boundary. The AB Line
does not need to be the full length of the field.
B Tip — The Headland pattern displays the edge of the innermost headland.
7. Turn left or right for the next swath. The next swath is automatically selected.
8. Steer the vehicle to center the green lights in the lightbar as you drive forward
along the swath.
Note — The IN HEADLAND! warning only appears if your antenna offset is set to
0.
If your antenna offset is greater than 0, you can achieve a similar effect by
setting the Headland warning lead time to greater than 0 (for example,
3 seconds). The HEADLAND! warning will then appear before the headland is
reached.

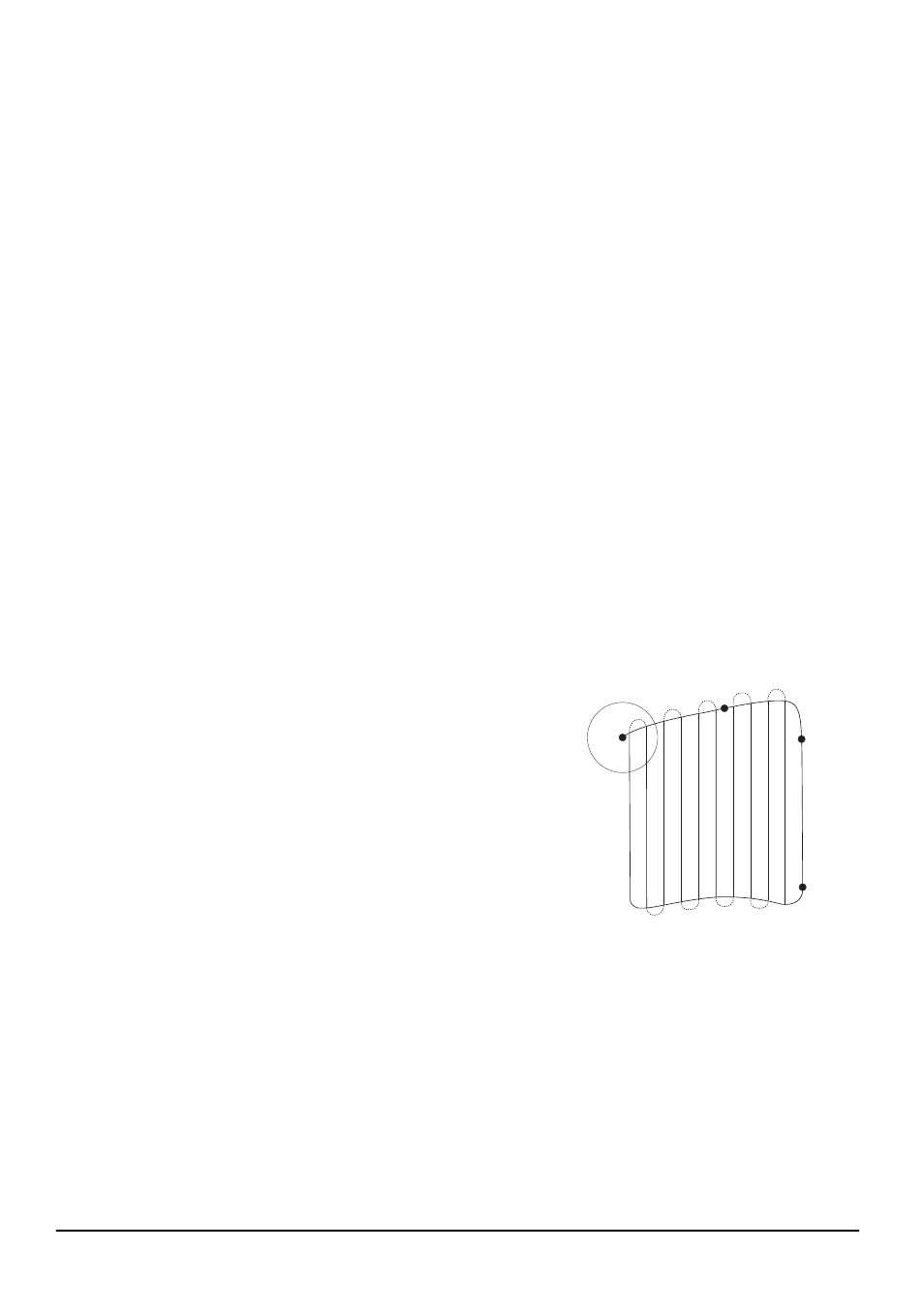

Single headland
1. Start the headland.
2. Start driving around the field area. The
headland is recorded.
3. After a short distance, identify the current
headland circuit as the final one.
Note — Do this before you enter the circle
around the start point or map A and B points.
The headland is still recorded until you reach
the circle around the start point.
4. To map the start of the first straight swath, map Point A.
5. Drive to the other end of the field and map Point B.
Note — Straight swaths automatically fill the headland boundary. The AB Line
does not need to be the full length of the field.
6. Enter the circle around the start point of the headland to complete the headland.
The area is then displayed.
7. Turn left or right for the next swath. The next swath is automatically selected.
Step 1
A
Step 5
Step 6
8
D
Step 3
Step 4
B
