3–Viewing Router Information
FC Discovered Targets
ISR654602-00 H 3-41
 Mapped ID identifies the LUN presented to the host.
FC Discovered Targets
Selecting the FC Discovered Targets branch in the router tree shows two pages in
the right pane:
 “FC Presented Targets” on page 3-41
 “iSCSI Presented Target List” on page 3-42
Expand the FC Discovered Targets branch and then select a specific target node
to view the following additional pages in the right pane for that target:
 “Information” on page 3-43
 “iSCSI Presented Target” on page 3-44
 “FC Presented Target” on page 3-45
FC Presented Targets
The FC Presented Targets page shows information for each Fibre Channel
presented target, as shown in
Figure 3-23 .

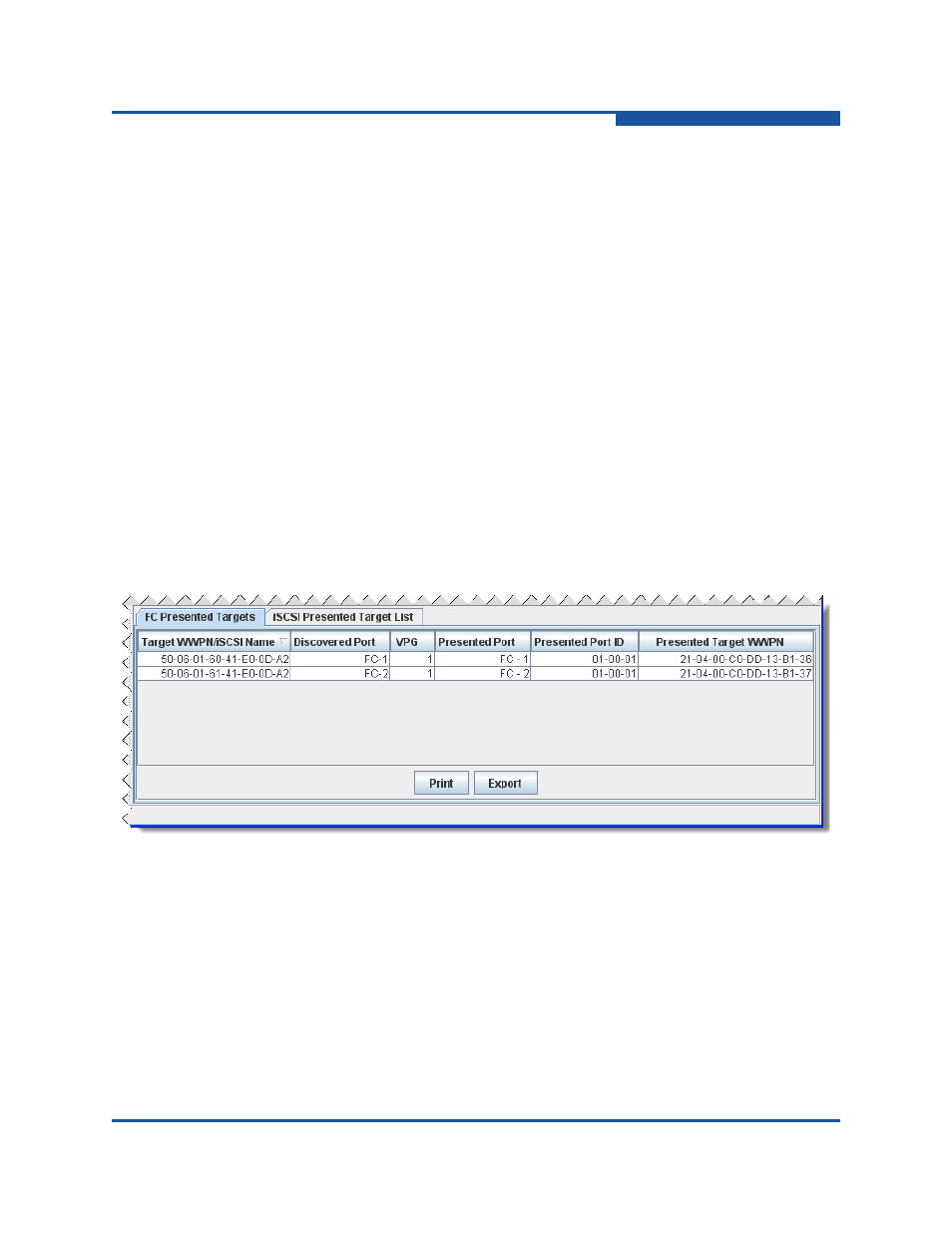

Figure 3-23. FC Discovered Targets: FC Presented Targets Page
The FC Presented Targets page lists the following data for each Fibre Channel
presented target:
 Target WWPN/iSCSI Name
 Discovered Port
 VPG
 Presented Port
 Presented Port ID
 Presented Target WWPN
