2–Understanding the User Interface
Tree Pane
2-14 ISR654602-00 H
Click a component in the router tree in the left pane to view component details in
the pages in the right pane (the information, configuration, and data pane;
Figure 2-4 shows an example).

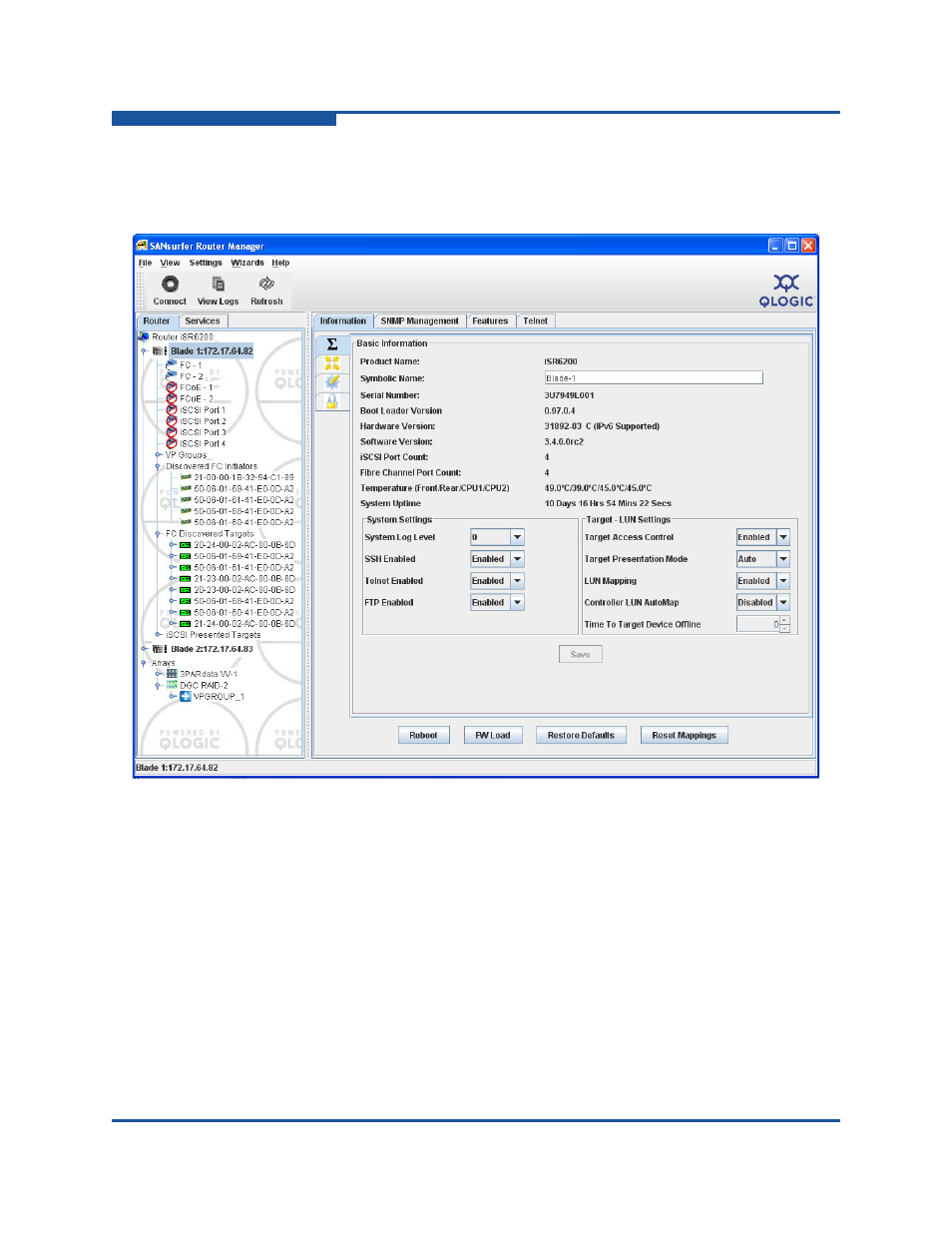

Figure 2-4. Component Information Pane Example
Component information for the selected router includes router chassis, blade,
port, status, and discovered device details.
