3–Viewing Router Information
Data Management LUNs
3-70 ISR654602-00 H
<DML_WWULN> Page
The <DML_WWULN> page lists non-editable information for the selected data
management LUN, as shown in
Figure 3-41 .

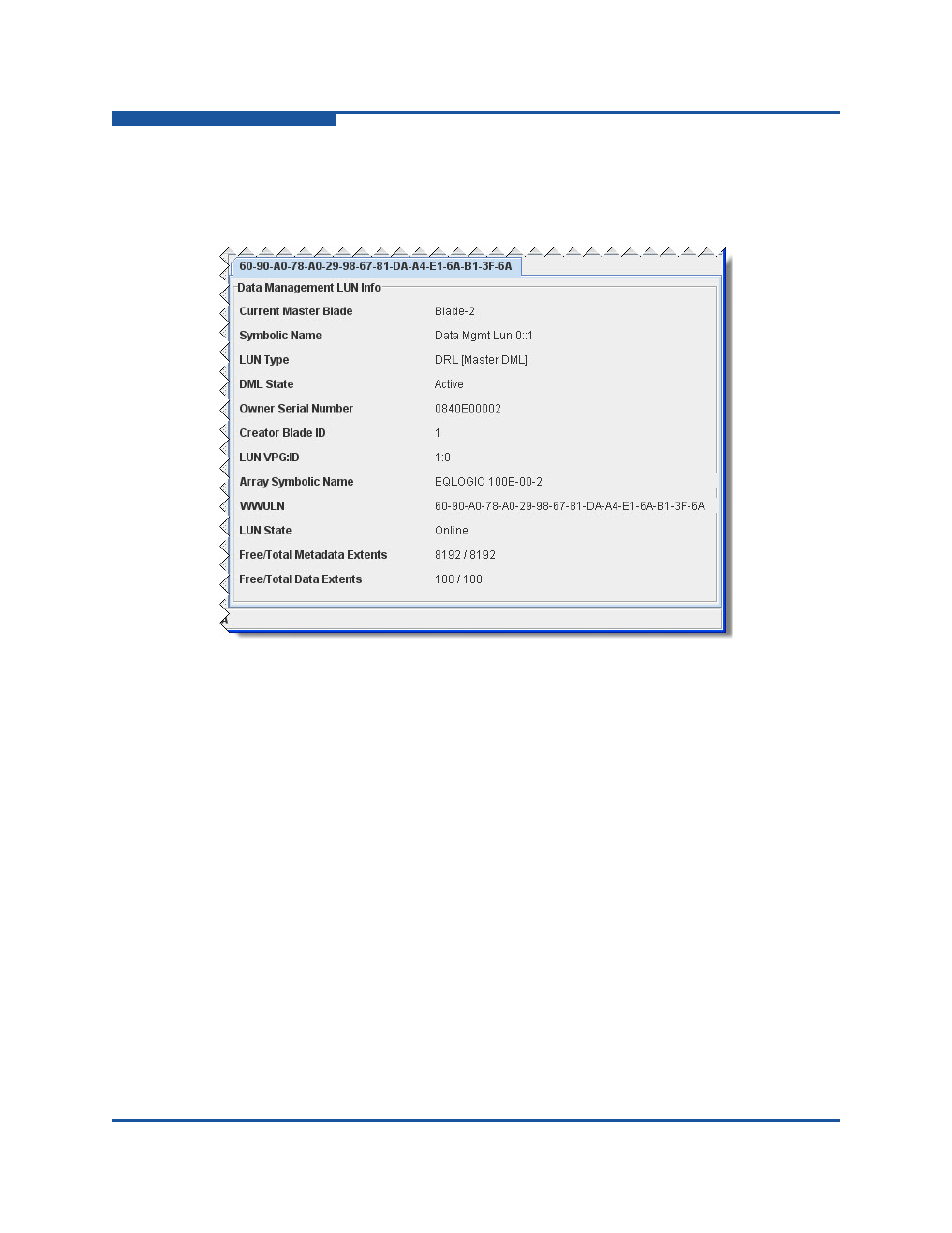

Figure 3-41. Data Management LUNs: Page
The following information is listed under Data Management LUN Info:
 Current Master Blade indicates the blade that was booted up before its
peer. That blade becomes the master for the existing DMLs.
 Symbolic Name indicates the data management LUN number on the owner
blade on which the LUN was created, as well as the owner blade number, in
the format <LUN number>::<blade number>.
 LUN Type indicates whether the selected LUN is a DML or Master DML.
 DML State specifies the LUN status as either Active or Init (in-progress).
 Owner Serial Number indicates the chassis serial number.
 Creator Blade ID indicates the owner blade on which the data management
LUN was created.
 LUN VPG:ID identifies the VP Group to which the LUN belongs.
 Array Symbolic Name indicates the symbolic node name for the array to
which the LUN belongs.
 WWULN indicates the LUN’s WWULN.
