3–Viewing Router Information

FC Ports

ISR654602-00 H

3-25

2.

Click Save.

The following warning message appears:

Changing the following port settings might cause a loss of
connection to one or more ports.
Do you want to proceed with the save operation?

3.

Click Yes to continue saving the changes, or No to cancel the changes.

If you click Yes, the Security Check dialog box prompts you to enter the
system password.

4.

Type the system password, and then click OK.

The FC Port Settings window shows the following message:

Save FC Port Settings Complete.

5.

To close the message box, click OK.

Statistics

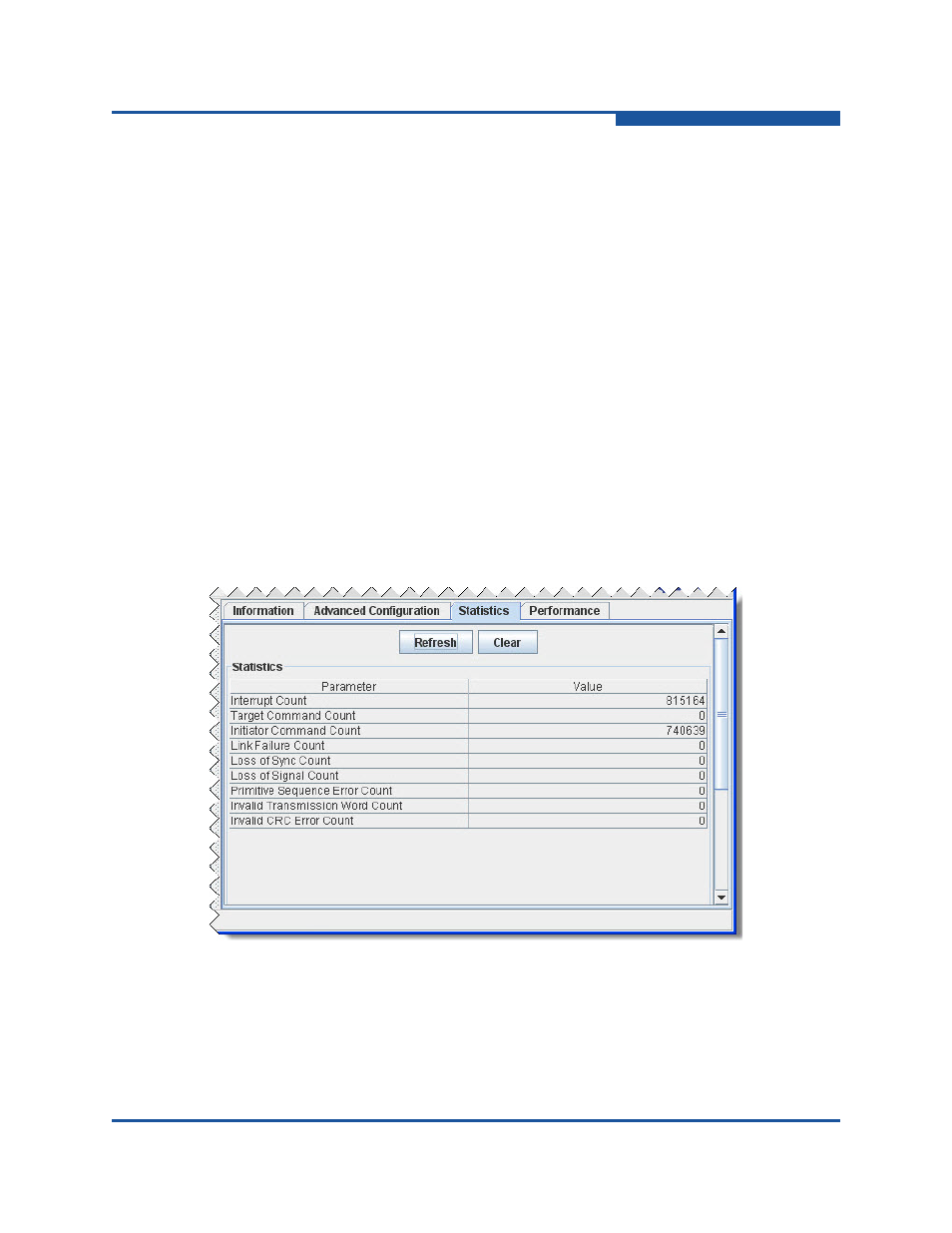

The Statistics page for the selected Fibre Channel port contains a table of
parameters and values, as shown in

Figure 3-13

.

Figure 3-13. FC Port: Statistics Page

To refresh the statistics, click Refresh.

To clear the statistics (set the values to zero), click Clear.
