3–Viewing Router Information

Remote Peers

ISR654602-00 H

3-21

Selecting the Remote Peers branch on the router tree does not provide any
information in the right pane. Expand the Remote Peers node, and then select a
remote peer icon to view the IP address page in the right pane.

Figure 3-10

shows

an example.

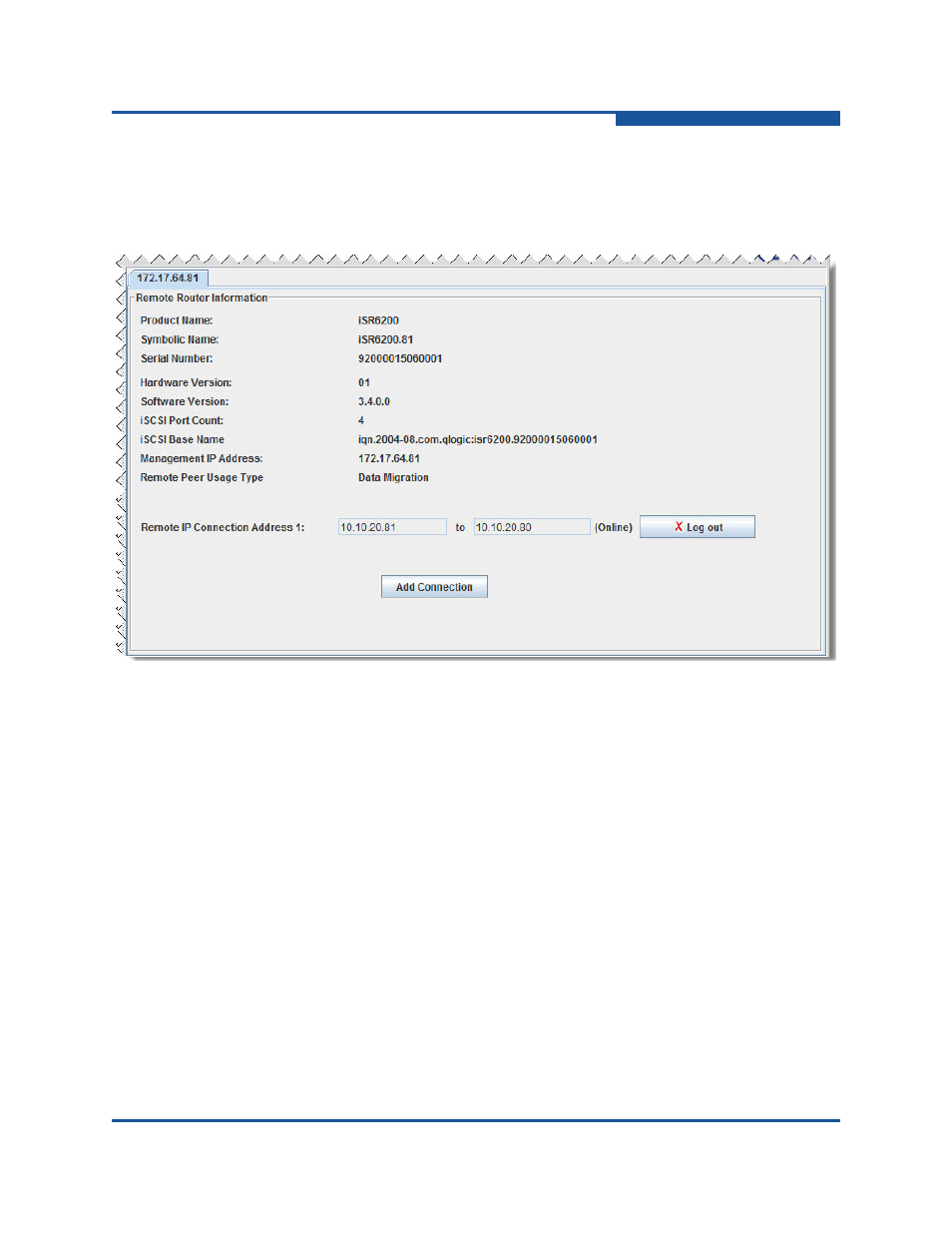

Figure 3-10. Remote Peer: [IP Address] Page

The IP address page for the selected remote peer contains the following under
Remote Router Information:

Product Name identifies the remote peer router model number.

Symbolic Name identifies the blade symbolic name on the remote peer.

Serial Number shows the remote peer’s serial number.

Hardware Version shows the remote peer’s router hardware version.

Software Version shows the firmware version installed on the remote peer.

iSCSI Port Count indicates the quantity of iSCSI ports on the remote peer.

iSCSI Base Name indicates the IQN name of the remote iSCSI port used in
the remote peer connection.

Management IP Address shows the IP address of the remote peer’s
management port.
