HP MPX200 Multifunction Router - Manual (Page 133)

4–Viewing Service Information
Data Migration Jobs
ISR654602-00 H 4-5
 Start Time indicates the date and time that the job began.
 End Time indicates the date and time that the job finished.
 Source Array - LUN indicates the name of the source array and LUN from
which data is currently being migrated to the destination LUN.
 Dest Array - LUN indicates the name of the destination array and LUN to
which data is currently being migrated from the source LUN.
Synchronizing Jobs
The Synchronizing Jobs page (see Figure 4-3 ) provides information about online
data migration jobs that have completed the copying phase and are now under
synchronization. Jobs are placed in a synchronized state pending
acknowledgement of completed data migration. Synchronizing occurs until all of
the dirty region logs (DRLs) associated with the job are flushed to the destination
array.

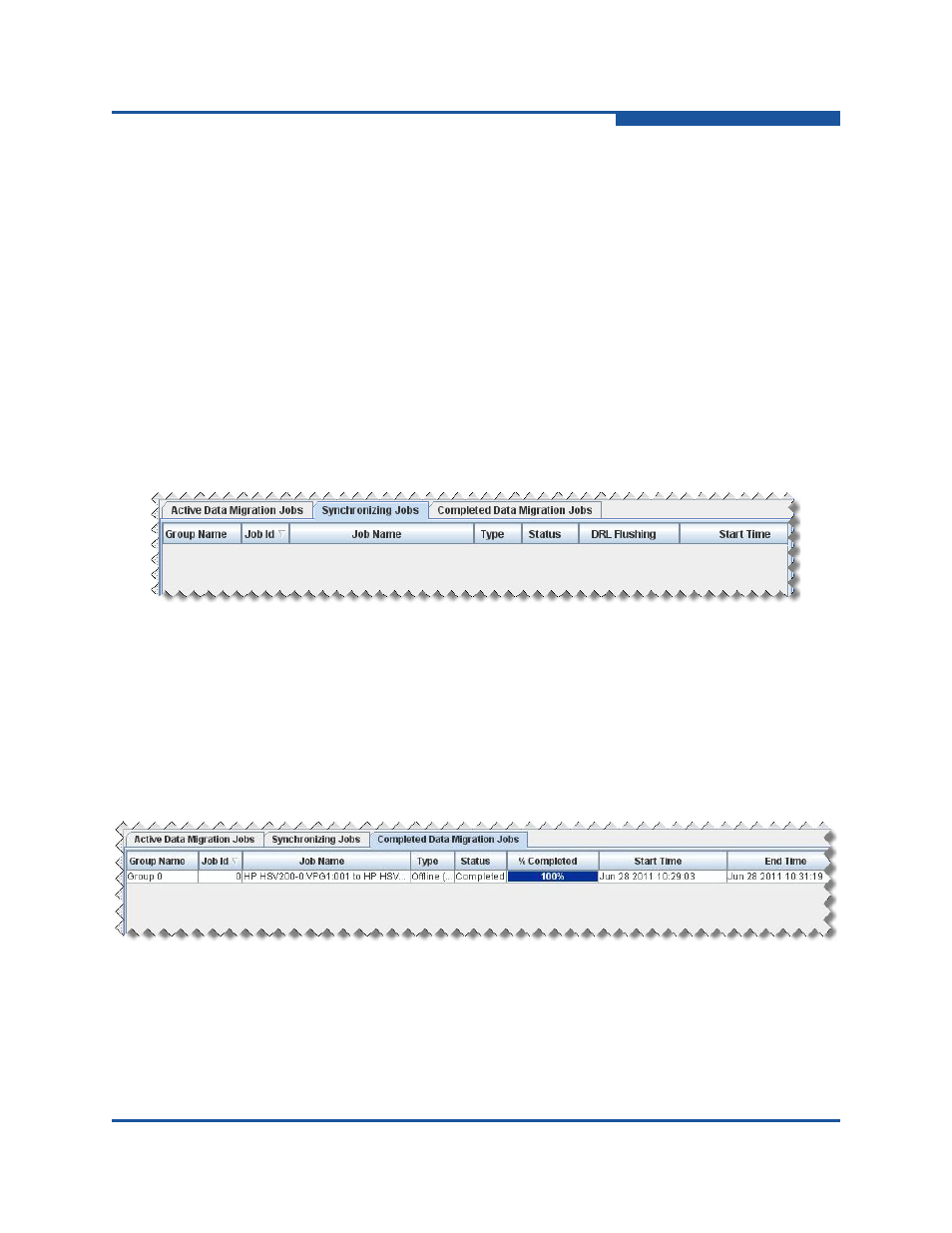

Figure 4-3. Data Migration Jobs: Synchronizing Jobs Page
The Synchronizing Jobs page contains the same information as the Active Data
Migration Jobs page (see
“Active Data Migration Jobs” on page 4-4 ), except that it
contains the DRL Flushing column instead of the % Completed column.
Completed Data Migration Jobs
The Completed Data Migration Jobs page provides data for finished data
migration jobs, as shown in
Figure 4-4 .
Figure 4-4. Data Migration Jobs: Completed Data Migration Jobs Page
The Completed Data Migration Jobs page contains the following information:
 Group Name shows the migration group name for which the migration,
compare, or scrubbing job was scheduled.
