2 Hardware Installation and Configuration
17

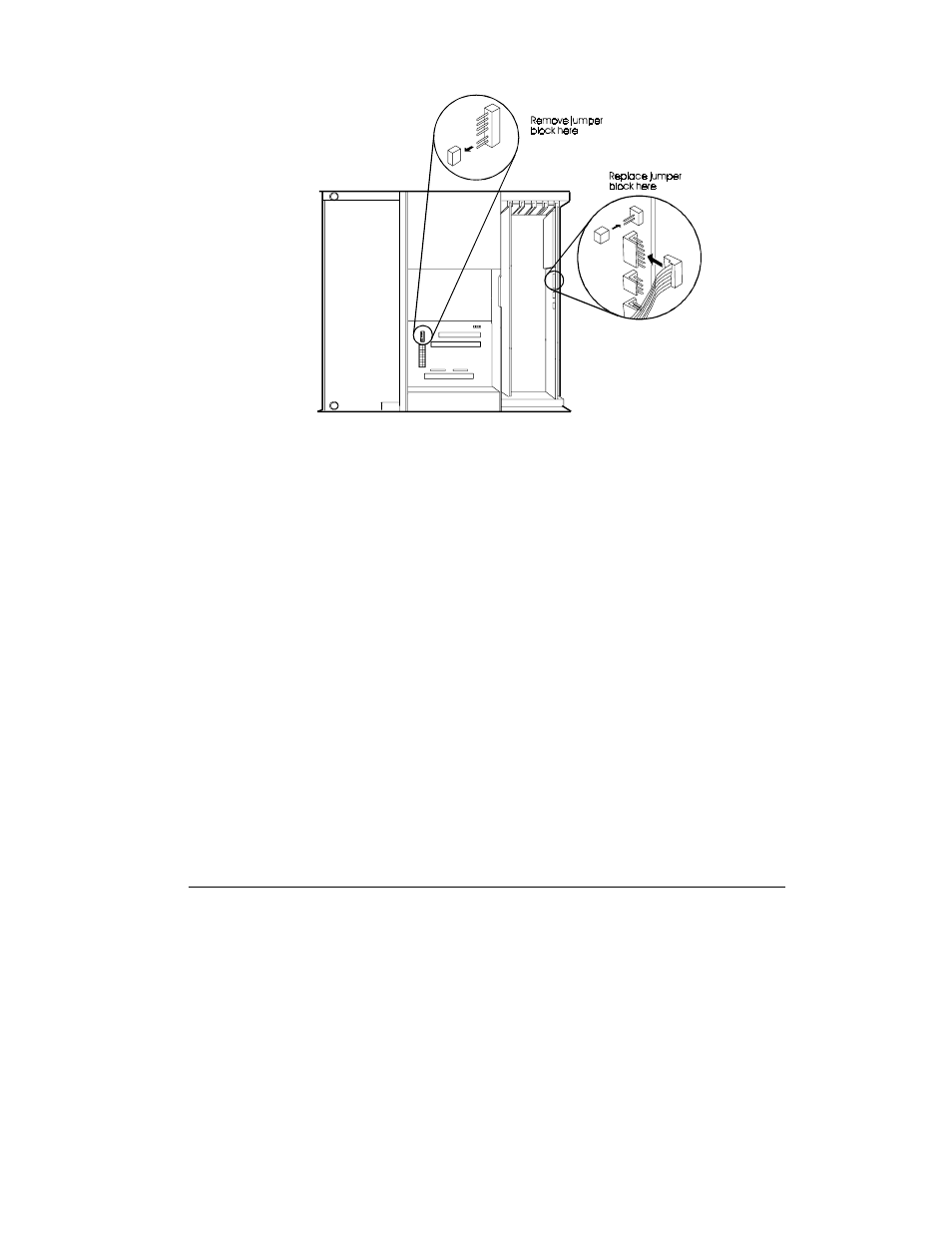

Figure 2-5. Connecting the Power Control Cable in HP NetServer LE Systems
3. Attach the "NetServer" end of the power control cable to the system. Refer to the
figures below to determine how to connect and secure the power control cable in
your HP NetServer system (LC, LE, LF, LH, LM, LS, or LX). In some cases you
will need to remove the adhesive cover strip from one or more of the included cable
clamps and tape the clamp to the system chassis. In other cases, you will need to
either cinch up the cable using the two clamps to shorten its overall length (as with
the LE), or remove the clamps to extend it to its maximum length (as with the LX).
