New Look-and-Feel

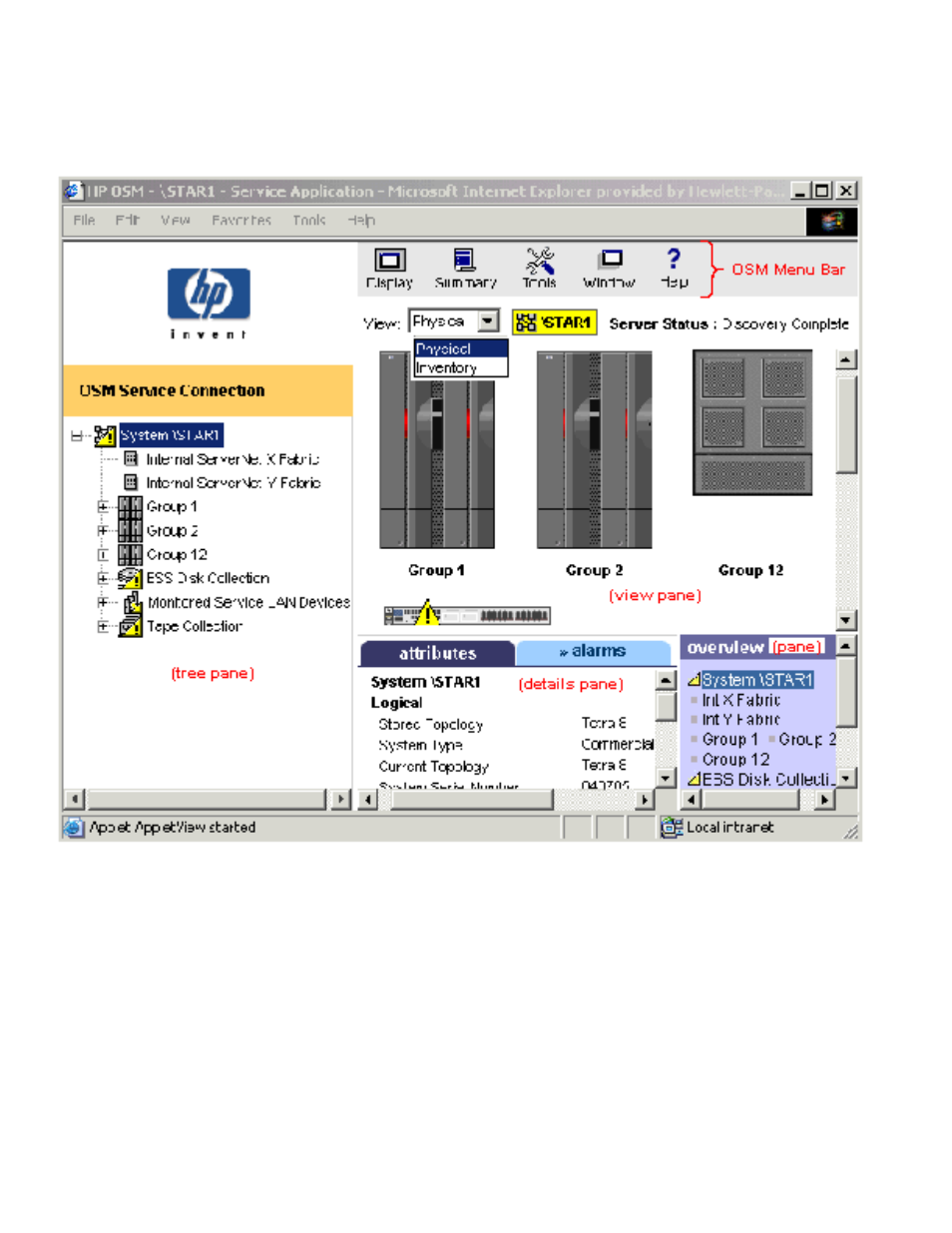

This section describes how the appearance of the OSM Service Connection is different from
that of the TSM Service Application.

Tree pane tabs have been replaced by a view of both the system and the cluster in the tree
pane.

●

A view pane drop-down list lets you select either a Physical or Inventory view.

●

The system-level physical view no longer allows you to change icon sizes. Group icons
used in the system-level physical view are smaller than those used by default in TSM, so
you can view more groups without scrolling.

●

OSM displays object names in the format [Object type] [Object name]
([group.module.slot.port]). For example, a disk object appears as Disk $K001-P (1.1.15).

●

Attributes are arranged in subgroups under an object, For example, the Fan object has a
group of attributes under logical fan and another group under physical fan.

●
